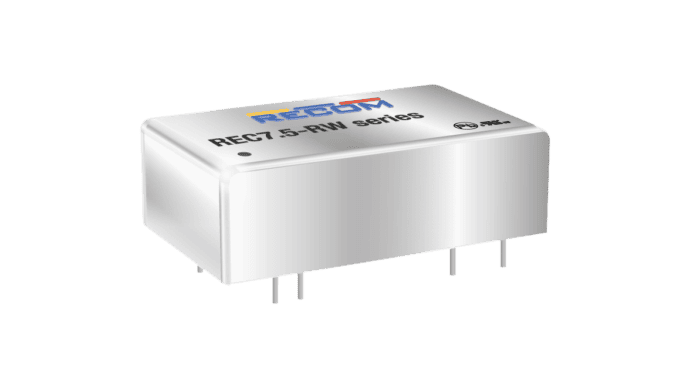

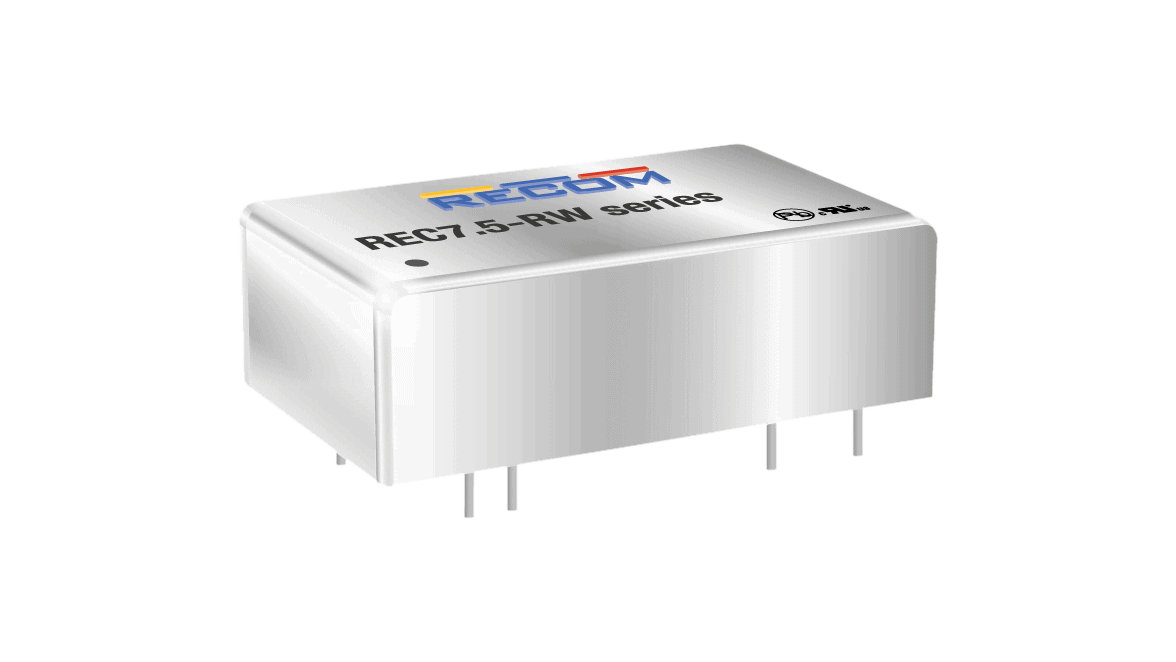

7.5W DC/DC converter, input 18...36V, output +-15V/+-250mA, DIP24

Name: REC7.5-2415DRW/H2/A/M - Recom - 7.5W DC/DC converter, input 18...36V, output +-15V/+-250mA, DIP24
Brand: Recom
SKU: REC7.5-2415DRW/H2/A/M
Price: 27.60 CHF
Availability: InStock

CHF 27.60 excl. VAT, plus shipping costs

Item no: REC7.5-2415DRW/H2/A/M

In stock: Available to order

Packaging ex works: 15 piece

10+ ~~CHF 27.60~~ CHF 26.30 (4%save)

25+ ~~CHF 26.30~~ CHF 25.55 (7%save)

50+ ~~CHF 25.55~~ CHF 25.15 (8%save)

100+ ~~CHF 25.15~~ CHF 24.45 (11%save)

Recommend:

Delivery time request Print PDF

Description

The REC7.5-xxxxSRW/DRW series offers single and dual regulated outputs in a DIP24 package with 1kV, 2kV or 3kV options and is suitable for higher power industrial or medical applications. Remote on/off control is possible with the /CTRL option and SMD pinning is offered with the /SMD option. The converters can deliver 140% rated power for short periods to handle applications with large capacitive loads or high starting currents.

Technical data

7.5W DIP24 housing
1KVDC, 2KVDC and 3kVDC insulation options
Approved for medical applications (/H)
UL and EN safety approvals
Continuous short-circuit protection (power limitation)
5-sided shielded metal housing
Complete SMD design
2 housing options
Option for remote pins
Efficiency up to 86

Additional information

DC-DC converter

Output voltage (Vdc)	+15 / -15
Power (W)	7.5
Output current (mA)	+250 / -250
Nominal input voltage (Vdc)	24
Input voltage ratio	2:1
I/O isolation	2000Vdc
Regulation	Regulated
Design	DIP24
Length (mm)	32
Width (mm)	20.3
Height (mm)	10.5
Manufacturer	Recom

LEDs

Input voltage range (Vdc)	18...36
Temperature range	-40…+71°C
Efficiency typ.	83%

Data sheets

Data sheet REC7.5	PDF(154.53 KB)

Downloads

3D Step File REC7.5-S_DRW_A_M	Zip file (74.2 KB)
