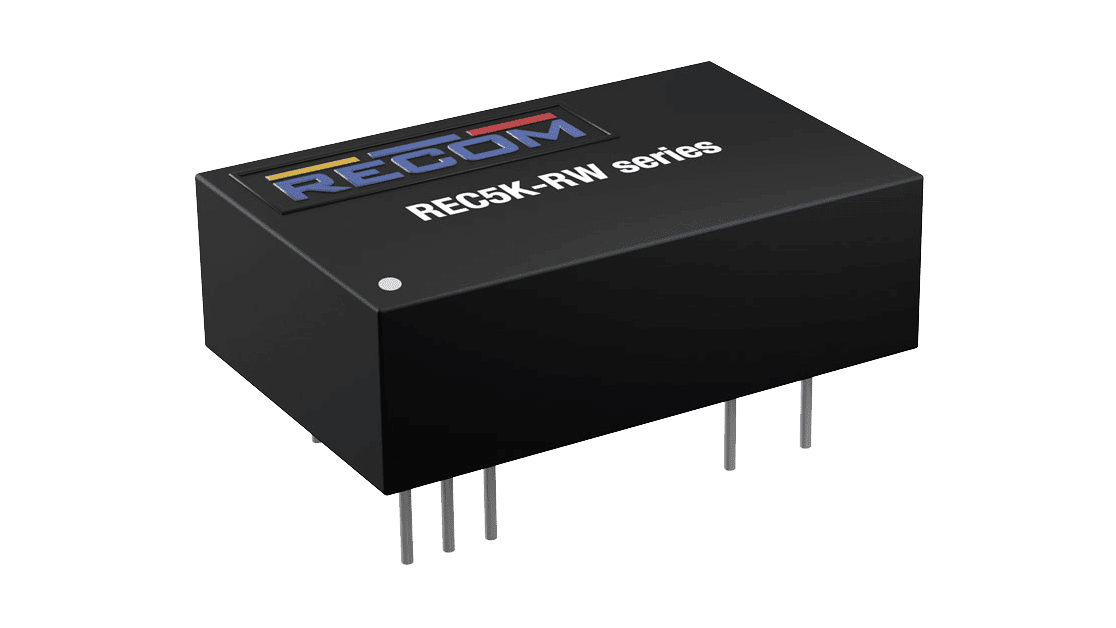

5W DC/DC converter, input 9...36V, output adjustable from 3.3...15V/1212mA
CHF 7.95 excl. VAT, plus shipping costs
Description
REC5K-2412SRW/H4/A/ADJ offers a basic isolation of 4kVDC/1sec and is therefore ideal for industrial, medical and other demanding high-end applications. The output voltage can be set in the range from 3.3Vdc to 15Vdc. The compact, non-conductive DIP24 plastic housing ensures high power density without sacrificing performance and operates with derating up to 110°C. Short circuit protection, undervoltage lockout and remote on/off control are standard and the converter is UL/IEC/EN62368-1 certified.
Technical data
- 4kVDC/1sec insulation of the basic class
- Industry standard 5W DIP24 housing
- Output voltage adjustable from 3.3vdc to 15Vdc.
- Temperature resistant up to 110°C ambient temperature
- Wide 4:1 input
- ON/OFF control pin, UVLO, SCP
- 0% minimum load
Additional information
| DC-DC converter | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet REC5K-RW | PDF(1.07 MB) |
|---|
Downloads
| 3D Step File REC5K-RW | Zip file (164.92 KB) |
|---|
Accessories
-

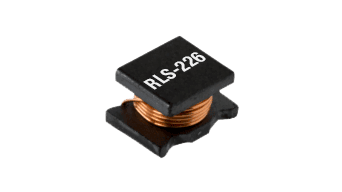

RLS-226
