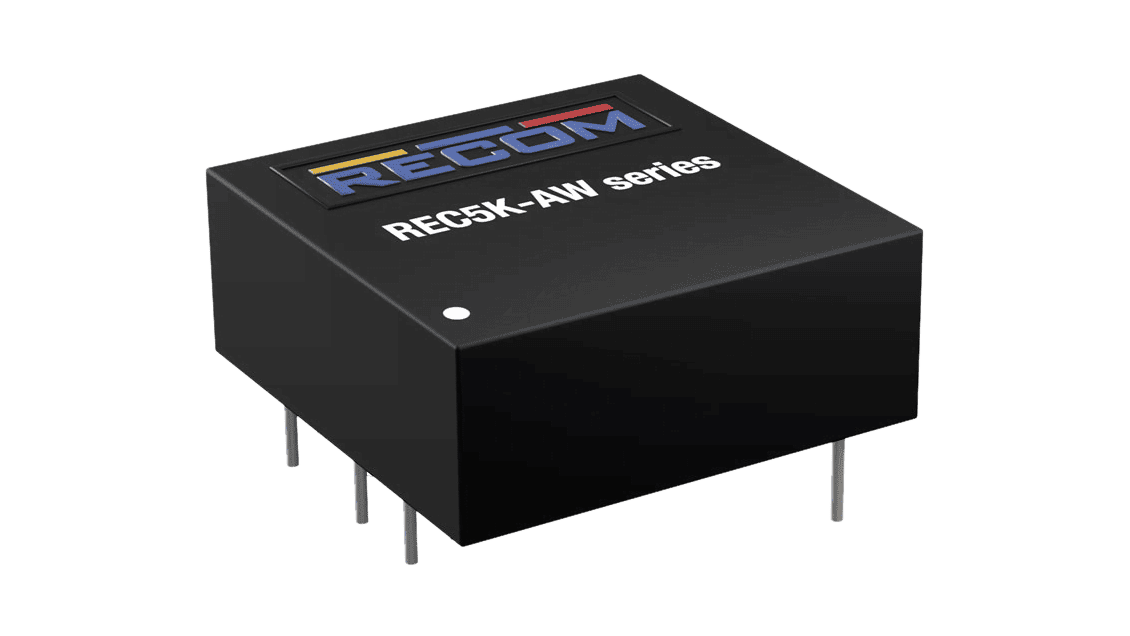

5W DC/DC converter, input 9...36V, output 5V/1000mA
CHF 9.60 excl. VAT, plus shipping costs
Description
REC5K-2405SAW/H4 offers a basic isolation of 4kVDC/1sec, making it ideal for industrial, medical and other demanding high-end applications. The compact, non-conductive 1 "x1" plastic housing ensures high power density without sacrificing performance and operates with derating up to 110°C. Short circuit protection, undervoltage lockout and remote on/off control are standard, and the converter is UL/IEC/EN62368-1 certified.
Technical data
- 4kVDC/1sec insulation of the basic class
- Industry standard 5W 1 "x1" housing
- Feedback-controlled output
- Temperature resistant up to 110°C ambient temperature
- Wide 4:1 input
- ON/OFF control pin, UVLO, SCP
- 0% minimum load
Additional information
| DC-DC converter | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet REC5K-AW | PDF(207.59 KB) |
|---|
Downloads
| 3D Step File REC5K | Zip file (277.54 KB) |
|---|
