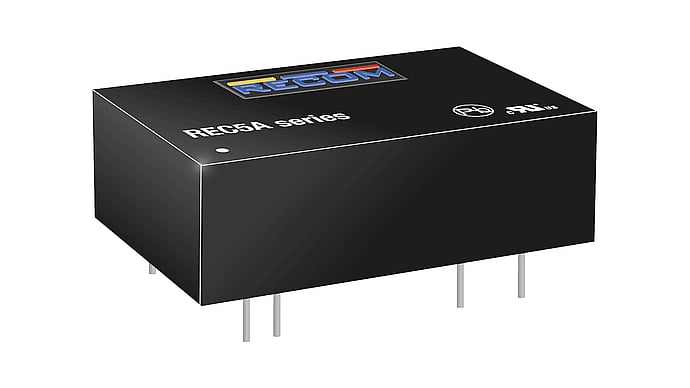

5W DC/DC converter, input 4.5...9V, output 5V/1A, DIP24

Name: REC5A-0505SW/H2 - Recom - 5W DC/DC converter, input 4.5...9V, output 5V/1A, DIP24
Brand: Recom
SKU: REC5A-0505SW/H2
Price: 12.80 CHF
Availability: InStock

CHF 12.80 excl. VAT, plus shipping costs

Item no: REC5A-0505SW/H2

In stock: Available to order

Packaging ex works: 15 piece

10+ ~~CHF 12.80~~ CHF 12.25 (4%save)

25+ ~~CHF 12.25~~ CHF 11.85 (7%save)

50+ ~~CHF 11.85~~ CHF 11.70 (8%save)

100+ ~~CHF 11.70~~ CHF 11.35 (11%save)

Recommend:

Delivery time request Print PDF

Description

The REC5A series is a cost-effective, isolated, general purpose DC/DC converter that includes a built-in Class A EMC filter. The converter is designed to operate with industry standard unregulated 24V or 5V power supplies and is typically used to provide an isolated, regulated, short-circuit proof output. An undervoltage lockout is available as an option. These converters are designed for industrial applications, can drive high capacitive loads and operate over the full temperature range of -40°C to +68°C without derating.

Technical data

2:1 Input voltage range
Efficiency of up to 81
EMI class A without external components
Continuous short-circuit protection
No minimum load required

Additional information

DC-DC converter

Output voltage (Vdc)	5
Power (W)	5
Output current (mA)	1000
Nominal input voltage (Vdc)	5
Input voltage ratio	2:1
I/O isolation	2000Vdc
Regulation	Regulated
Design	DIP24
Length (mm)	31.8
Width (mm)	20.3
Height (mm)	10.2
Application	ITE/AV
Manufacturer	Recom

LEDs

Input voltage range (Vdc)	4.5...9
Temperature range	-40…+68°C

Data sheets

Data sheet REC5A	PDF(955.17 KB)

Downloads

3D Step File REC5A-W	Zip file (72 KB)
