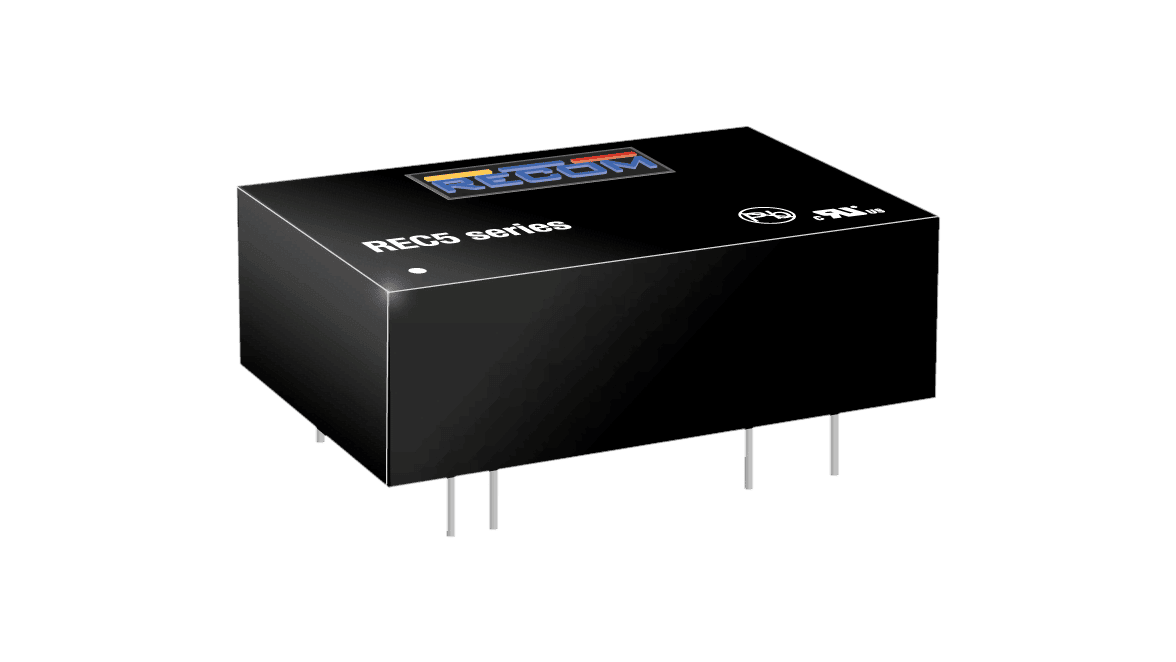

5W medical DC/DC converter, input 18...36V, output 5V/1A, DIP24
CHF 23.15 excl. VAT, plus shipping costs
Description
This series offers a standard isolation of 2kVDC with 4kVDC or 6kVDC options, making it ideal for industrial, medical and other demanding high-end applications. The housing can be either a non-conductive DIP24 plastic housing or a 5-sided shielded DIP24 metal housing (= option "/M") as well as a DIP24-SMD housing (= option "/SMD"). Two industry standard pinouts (= option "/A" or "/C") are available for all of the above variants. The "B" pinout is also available with "/H" isolation of 1.6 kVDC. Remote on/off control is possible with the /CTRL option (only "A" pinning). The converters can deliver 140% rated power for a short time to handle applications with large capacitive loads or high starting currents.
Technical data
- High 4kVDC insulation
- 5Watt DIP24 industry standard housing
- Feedback-controlled output
- Continuous short-circuit protection
- Wide inputs 2:1 & 4:1
- Approved for medical applications
- UL and EN safety approvals
- 2 pinout options, 3 housing types
- Efficiency up to 86
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet REC5 | PDF(522.02 KB) |
|---|
Downloads
| 3D Step File REC5-S_DRW(Z)_A | Zip file (66.04 KB) |
|---|
