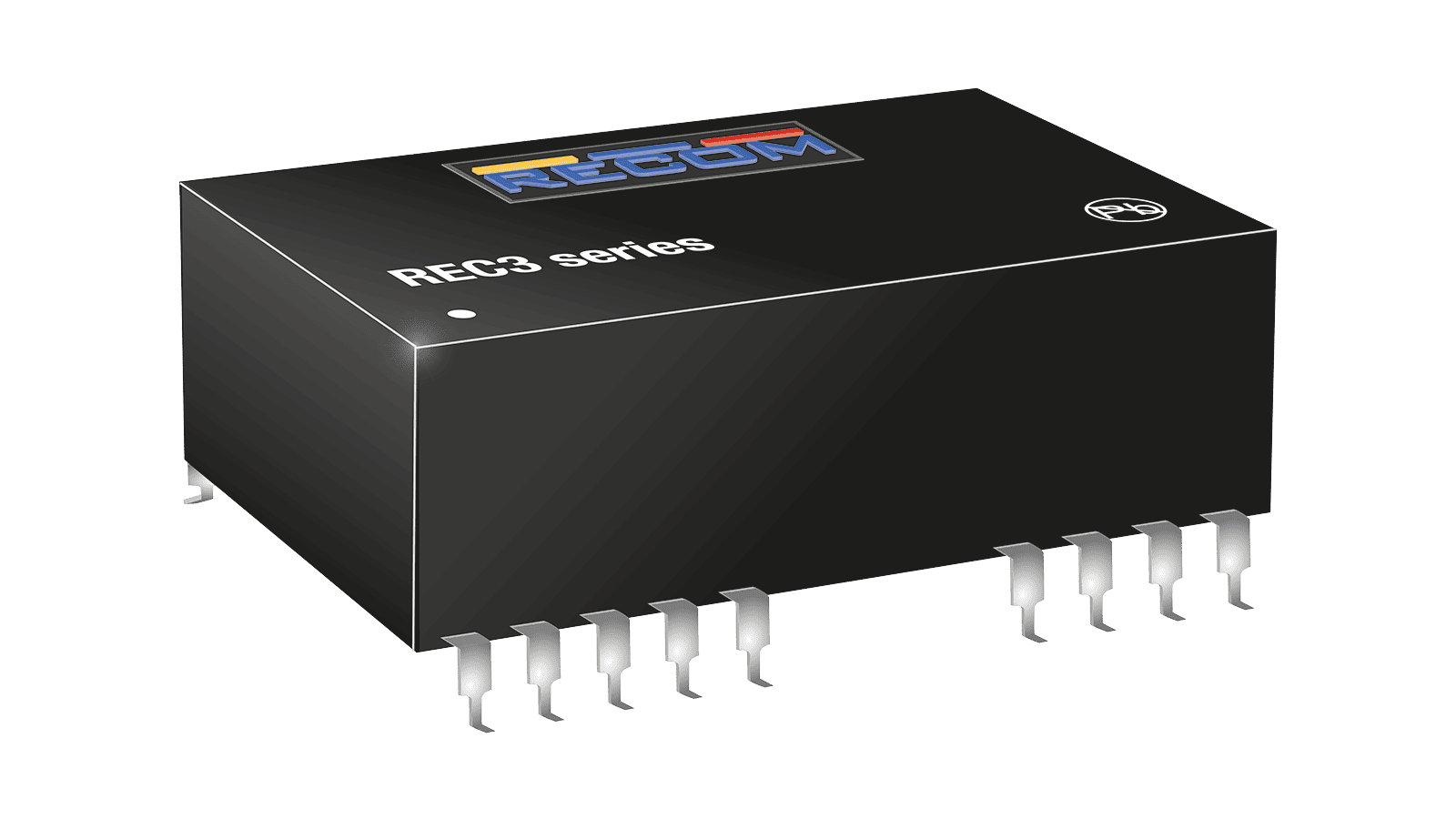

3W DC/DC converter, input 4.5...9V, output 5V/600mA, DIP24 SMD
CHF 21.10 excl. VAT, plus shipping costs
Description
In addition to the standard 2kVDC isolation, this series offers options of 4kVDC (="/H4″) or 6kVDC (="/H6″), making it suitable for medical applications and other demanding industrial applications. The housing can be either a DIP-24 plastic housing or a 5-sided shielded DIP-24 metal housing (=option "/M") as well as a SMD pinning (=option "/SMD"). For all the above variants, 2 industry standard pinouts (= option "/A" or "/C") are available, and B-pinning is available with 1.6kVDC insulation.
Remote control is possible with the /CTRL option (A pinning only). The converters can deliver 140% of the rated power for a short time in order to cope with applications with large capacitive loads or high starting currents.
Technical data
- 4kVDC insulation
- Industry standard 3W DIP24 housing
- Feedback-controlled output
- Continuous short-circuit protection
- Wide input 2:1 & 4:1
- Medical approvals (4kV/6kV versions)
- EN and UL certificates
- 3 pinout options, 3 housing types
- Option controlpin
- Efficiency up to 86
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet REC3 | PDF(165.11 KB) |
|---|
Downloads
| 3D Step File REC3 | Zip file (65.33 KB) |
|---|
