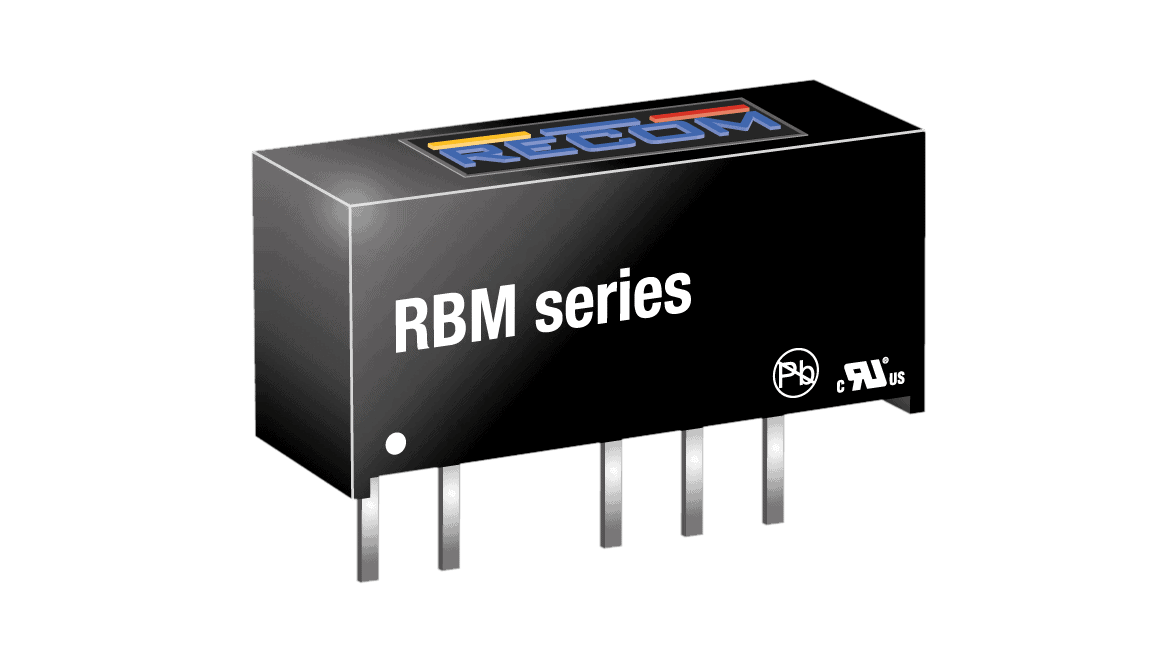

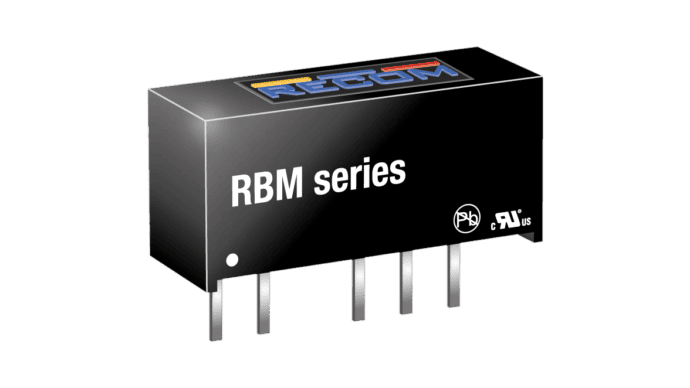

1W DC/DC converter, input 5V +/-10%, output 5V/200mA, SIP6 micro

Name: RBM-0505S - Recom - 1W DC/DC converter, input 5V +/-10%, output 5V/200mA, SIP6 micro
Brand: Recom
SKU: RBM-0505S
Price: 6.65 CHF
Availability: InStock

CHF 6.65 excl. VAT, plus shipping costs

Item no: RBM-0505S

In stock: Available to order

Packaging ex works: 30 piece

10+ ~~CHF 6.65~~ CHF 6.35 (4%save)

25+ ~~CHF 6.35~~ CHF 6.15 (7%save)

50+ ~~CHF 6.15~~ CHF 6.05 (9%save)

100+ ~~CHF 6.05~~ CHF 5.90 (11%save)

Recommend:

Delivery time request Print PDF

Description

The RBM Micro Size DC/DC converter complements Recom's industrial converter range. Commonly used for distributed PCB power supply systems, this range combines small package size, high efficiency, 3kVDC isolation and low output ripple. The extended operating temperature range of -40°C to +85°C is a standard feature. The full rated power can be drawn from a single pin of this dual output converter, provided it does not exceed 1Watt.

Technical data

SIP-6 housing in micro format
Pin assignment according to industry standard
Power sharing for the version with two outputs
3kVDC/1S basic insulation
Optional permanent short-circuit protection
Efficiency of up to 84

Additional information

DC-DC converter

Output voltage (Vdc)	5
Power (W)	1
Output current (mA)	200
Nominal input voltage (Vdc)	5
Input voltage ratio	+/-10%
I/O isolation	3000Vdc
Regulation	Unregulated
Design	SIP6
Length (mm)	16.55
Width (mm)	6
Height (mm)	7.7
Application	ITE/AV
Manufacturer	Recom

LEDs

Input voltage range (Vdc)	4.5...5.5
Temperature range	-40…+85°C

Data sheets

RBM data sheet	PDF(914.12 KB)

Downloads

3D Step File RBM	Zip file (38.24 KB)
