20W DC/DC converter, input 2.3...5.5V, output 5V/4000mA, LGA
CHF 8.10 excl. VAT, plus shipping costs
Description

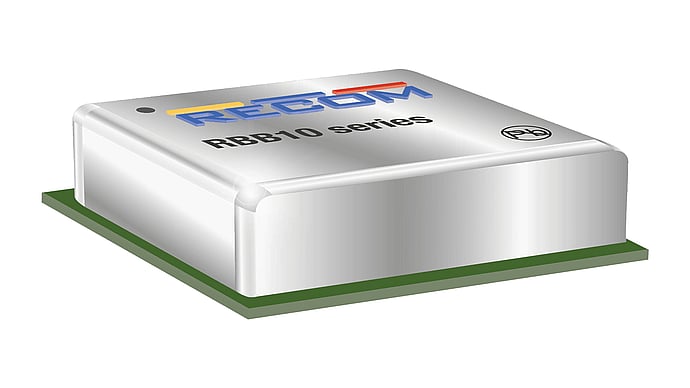

The RBB10-2.0 series is a non-isolated 4A buck/boost regulator power module where the input voltage can be higher, lower or equal to the output voltage. The transition from buck to boost mode is smooth and without interrupting the output. The compact module with DOSA-compatible footprint has a low profile of only 3.9mm, but with an efficiency of up to 95%, the RBB10-2.0 can operate at full load in ambient temperatures of up to 85°C without forced air cooling. The housing has 6-sided shielding for optimum EMC performance and excellent thermal management. Typical applications are USB voltage regenerators, 3.3V<->5V converter and supercapacitor or Li-ion battery regulator.
Technical data
- 10W buck-boost converter with up to 4A output
- Input voltage can be higher, lower or equal to the output voltage
- >90% efficiency from 100mA - 3000mA load
- 7µA standby power consumption
- Low-profile, thermally enhanced 25pad LGA housing
Additional information
| DC-DC converter | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet RBB10 | PDF(1.06 MB) |
|---|
Downloads
| 3D Step File RBB10 | Zip file (160.79 KB) |
|---|
