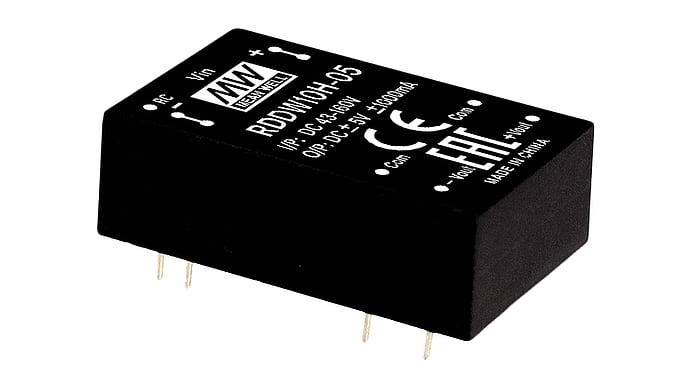

DC/DC PCB assembly
10W DC/DC converter, input 43…160V, output +/-5V / +/-1A
CHF 20.50 excl. VAT, plus shipping costs
Item no:
RDDW10H-05
In stock: Available to order
5+ CHF 20.50 CHF 19.50 (4%save)
10+ CHF 19.50 CHF 18.70 (8%save)
20+ CHF 18.70 CHF 18.20 (11%save)
Description
10W DC/DC converter, input 43…160V, output +/-5V / +/-1A
Technical data
- Meets standard railroad approval EN50155
- DIP 24 housing with standard pinout
- 4:1 Wide entrance area
- Wide temperature range -40°C...+85°C
- No minimum load required
- Fully encapsulated
- Protective circuits: Short circuit/overload/overvoltage/undervoltage
- 3kVdc insulation
- Remote ON/OFF control
- 3-year guarantee
- Manufacturer MEAN WELL
Additional information
| DC-DC converter | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet RDDW10 | PDF(131.33 KB) |
|---|
Downloads
| 3D data RDDW10 | Zip file (444.15 KB) |
|---|
