DC/DC PCB assembly

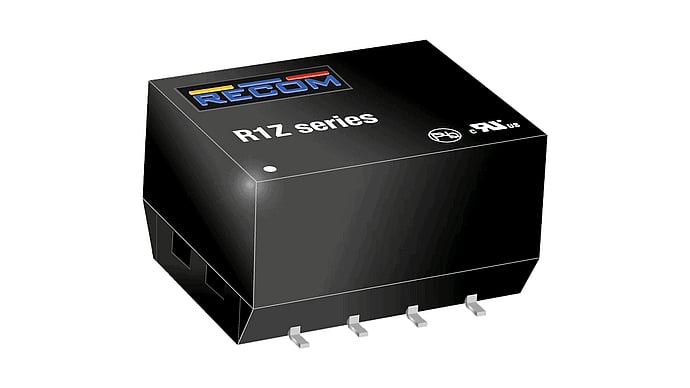

1W DC/DC converter, input 5V +/-5%, output 5V/200mA, SMD
CHF 14.50 excl. VAT, plus shipping costs
Item no:
R1Z-0505/P
In stock: Available to order
Packaging ex works:
33 piece
Estimated delivery time:
1 to 2 weeks for quantities up to 1000 pieces
10+ CHF 14.50 CHF 13.85 (4%save)
25+ CHF 13.85 CHF 13.40 (7%save)
50+ CHF 13.40 CHF 13.20 (8%save)
100+ CHF 13.20 CHF 12.85 (11%save)
Description
The R1Z series DC/DC converter is designed to isolate or convert DC power rails when an SMD format with regulated output is required, although it is no larger than a standard unregulated SMD converter.
Technical data
- 1kVDC/1s insulation
- SMD housing type
- UL94V-0 Housing material
- Optional permanent short-circuit protection
- Toroidal magnetics
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet R1Z | PDF(109.7 KB) |
|---|
Downloads
| 3D Step File R1Z | Zip file (309.46 KB) |
|---|
