1W DC/DC converter, input 3...5.5V, output 3.3V/5V/200mA, LGA

Name: R05C1TF05S-CT - Recom - 1W DC/DC converter, input 3...5.5V, output 3.3V/5V/200mA, LGA
Brand: Recom
SKU: R05C1TF05S-CT
Price: 2.30 CHF
Availability: InStock

CHF 2.30 excl. VAT, plus shipping costs

Item no: R05C1TF05S-CT

In stock: Available to order

Packaging ex works: 10 piece

10+ ~~CHF 2.30~~ CHF 2.20 (4%save)

25+ ~~CHF 2.20~~ CHF 2.15 (6%save)

50+ ~~CHF 2.15~~ CHF 2.10 (8%save)

100+ ~~CHF 2.10~~ CHF 2.05 (10%save)

Recommend:

Delivery time request Print PDF

Description

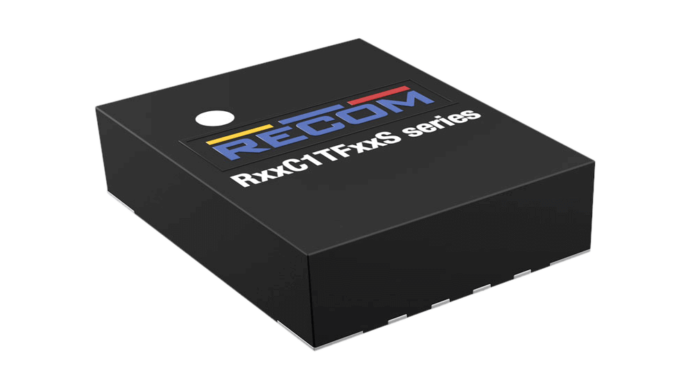

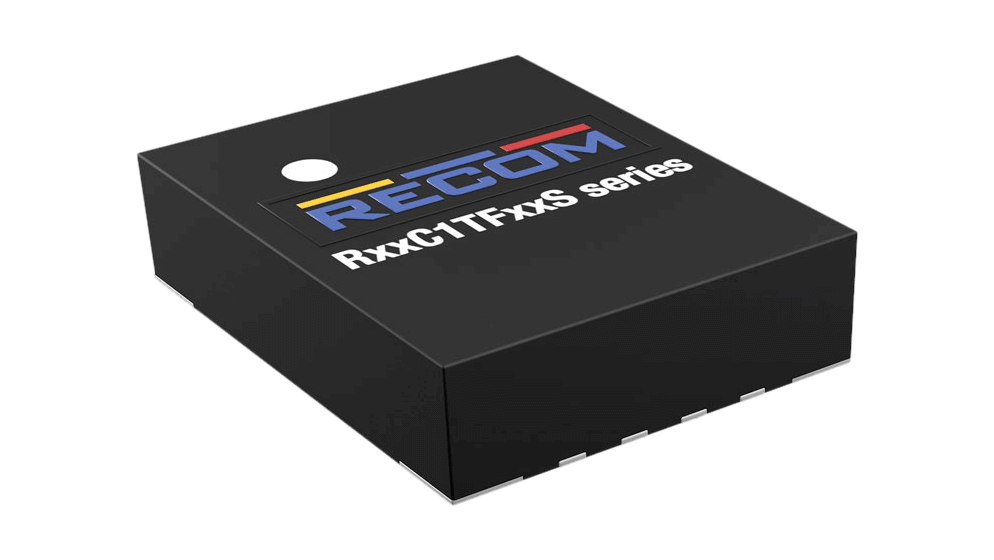

The RxxC1TFxxS series is the latest breakthrough in isolated DC/DC converters. With an ultra-compact 5 x 4mm SMD package and a low profile of just 1.18mm, it sets a new standard for size and performance in its class. With 3kVAC/1s isolation and selectable 3.3V or 5V outputs, it is perfect for applications such as COM port isolation, industrial automation, IoT and sensor isolation. With a wide input range from 3V to 5.5V and an ambient temperature range of up to 125°C with derating, it ensures reliability in different environments. The RxxC1TFxxS series simplifies design with its integrated solution and is your compact, reliable choice for demanding electronic systems.

Technical data

Compact 10.35 x 7.5 mm SMD housing
Low profile (2.5 mm)
3kVDC/1min Insulation
Low EMI emissions
Ultra-wide temperature range from -40°C to +125°C
Fully automatic, highly reliable design
Semi-regulated 5V output

Additional information

DC-DC converter

Output voltage (Vdc)	3.3, 5
Power (W)	1
Output current (mA)	200
Nominal input voltage (Vdc)	3.3, 5
I/O isolation	3000Vac
Regulation	Regulated
Design	LGA
Length (mm)	5.0
Width (mm)	4.0
Height (mm)	1.18
Application	ITE/AV
Manufacturer	Recom
