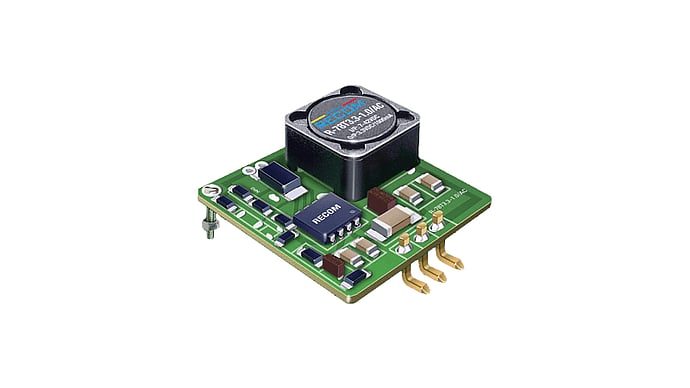

DC/DC PCB assembly
12W DC/DC converter, input 15...42V, output 12V/1000mA, SMD
CHF 12.10 excl. VAT, plus shipping costs
Item no:
R-78T12-1.0/AC-TRAY
In stock: Available to order
Packaging ex works:
25 piece
Estimated delivery time:
1 to 2 weeks for quantities up to 1000 pieces
10+ CHF 12.10 CHF 11.55 (4%save)
25+ CHF 11.55 CHF 11.15 (7%save)
50+ CHF 11.15 CHF 11.00 (9%save)
100+ CHF 11.00 CHF 10.70 (11%save)
Description
The R-78T is a switching regulator with a wide input voltage range and a flat SMD housing. Due to the 1.5A start-up overload capability, the R-78T can be used as a replacement for 1A or 1.5A regulators in many applications. These modules are available in three different versions that are pin-compatible with existing solutions, but at a lower cost.
Technical data
- Efficiency of up to 95 %, no heat sinks required
- Pin assignment according to industry standard
- 1.5A Start overload capacity
- Non-insulated regulator, very low standby current
- Large entrance area
- Short-circuit protection
- Fixed switching frequency (250kHz), shielded magnets
Additional information
| DC-DC converter | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Specification R-78T-1.0 | PDF(246.33 KB) |
|---|
Downloads
| 3D Step File R-78T-1.0_AC | Zip file (402.98 KB) |
|---|
