DC/DC PCB assembly

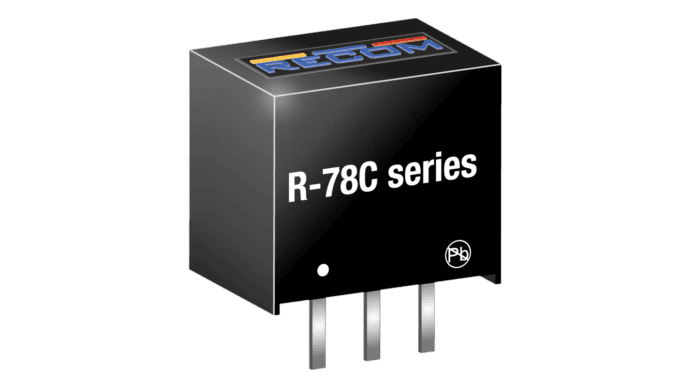

15W DC/DC converter, input 18...42V, output 15V/1000mA, SIP3
CHF 11.40 excl. VAT, plus shipping costs
Item no:
R-78C15-1.0
In stock: Available to order
Packaging ex works:
42 piece
Estimated delivery time:
1 to 2 weeks for quantities up to 1000 pieces
10+ CHF 11.40 CHF 10.85 (4%save)
25+ CHF 10.85 CHF 10.55 (7%save)
50+ CHF 10.55 CHF 10.35 (9%save)
100+ CHF 10.35 CHF 10.05 (11%save)
Description
The R-78Cxx-1.0 series switching regulators are ideal as a replacement for 78xx series 1-amp linear regulators and are pin-compatible. An efficiency of up to 96% means that very little energy is wasted in the form of heat, and the high input voltage is a useful feature.
Technical data
- Efficiency of up to 96%, no heat sinks required
- Pin assignment compatible with LM78XX lines
- Low profile (L*W*H=11.6*8.5*10.4mm)
- Large input range (5V - 42V)
- Short-circuit protection, thermal shutdown
- Low ripple and noise
- IEC/EN60950-certified
Additional information
| DC-DC converter | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet R-78C-1.0 | PDF(686.99 KB) |
|---|
Downloads
| 3D Step File R-78C-1.0 | Zip file (20.01 KB) |
|---|
