DC/DC PCB assembly

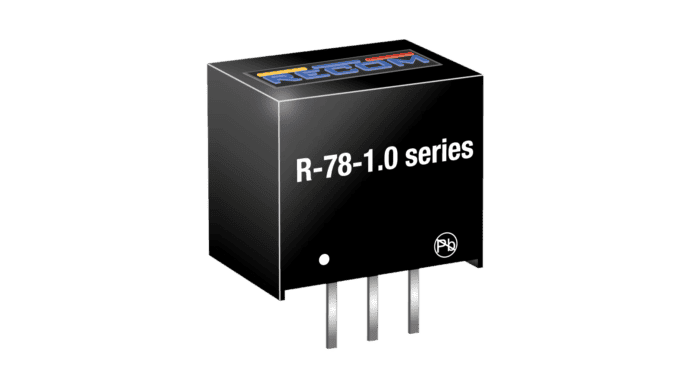

3.3W DC/DC converter, input 4.75...18V, output 3.3V/1000mA, SIP3

CHF 7.60 excl. VAT, plus shipping costs

Item no: R-783.3-1.0
Stock level:42 Available immediately
Packaging ex works: 42 piece
10+ CHF 7.60 CHF 7.25 (4%save)
25+ CHF 7.25 CHF 7.05 (7%save)
50+ CHF 7.05 CHF 6.95 (8%save)
100+ CHF 6.95 CHF 6.75 (11%save)
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

The switching regulators of the R-78xx-1.0 series are ideal as a replacement for 1-amp linear regulators of the 78xx series and are pin-compatible. With an efficiency of up to 94%, very little energy is wasted in the form of heat, so that no heat sinks with their additional space and installation costs are required.

Technical data

  • Efficiency of up to 94%, no need for heat sinks
  • Pin assignment compatible with LM78XX lines
  • Low profile (L/W/H=11.5 x 7.5 x 10.2mm)
  • Large entrance area
  • Short-circuit protection, thermal shutdown
  • Low ripple and noise
  • IEC/EN60950-1-zertifiziert

Additional information

DC-DC converter
Output voltage (Vdc)

3.3

Power (W)

3.3

Output current (mA)

1000

Nominal input voltage (Vdc)

5, 9, 12, 15

I/O isolation

not isolated

Regulation

Regulated

Design

SIP3

Length (mm)

11.5

Width (mm)

7.55

Height (mm)

10.2

Manufacturer

Recom
LEDs
More
Input voltage range (Vdc)

4.75...18

Temperature range

-40…+85°C

Efficiency typ.

90%

Data sheets

Data sheet R-78-1.0 PDF(290.92 KB)

Downloads

3D Step File R-78-1.0 Zip file (46.7 KB)
