DC/DC PCB assembly
36W DC/DC converter, input 15...28V, output 10...14V/3000mA, SIP12
CHF 26.05 excl. VAT, plus shipping costs
Item no:
R-7312P
In stock: Available to order
Packaging ex works:
15 piece
Estimated delivery time:
1 to 2 weeks for quantities up to 1000 pieces
10+ CHF 26.05 CHF 24.85 (4%save)
25+ CHF 24.85 CHF 24.10 (7%save)
50+ CHF 24.10 CHF 23.75 (8%save)
100+ CHF 23.75 CHF 23.05 (11%save)
Description

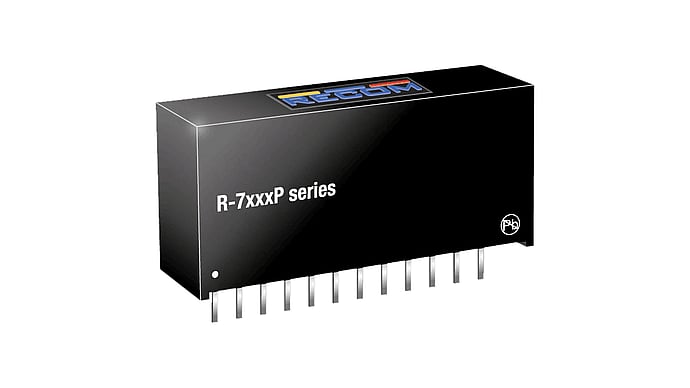

The R-7xxx series is a high performance integrated switching regulator (ISR) in a 12-pin SIP package (single in-line package) with 2.5V to 17V, 2Amp to 4Amp. The synchronous rectified design offers an excellent efficiency of up to 97%. Short-circuit protection reduces the short-circuit input current to below 50mA.
Technical data
- Not isolated
- Synchronous rectification
- Adjustable output voltage
- 2, 3, 4Amp adjustable positive step-down regulator with integrated switching regulator
- Overload protection
- Permanent short-circuit protection
- Efficiency of up to 97
Additional information
| DC-DC converter | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet R-7 | PDF(352.75 KB) |
|---|
Downloads
| 3D Step File R-7xxxP | Zip file (46.7 KB) |
|---|
