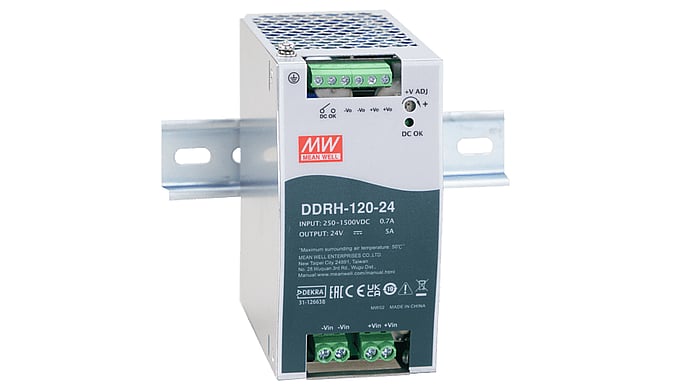

120W DC/DC converter, input 250...1500V, output 24V/5A
CHF 47.40 excl. VAT, plus shipping costs
Description
DDRH-120 is a DC/DC converter with a very high voltage input of 250 to 1500Vdc. The high voltage input makes the converter suitable for use in renewable energy applications such as solar or wind power systems, DC central bus, high voltage conversion, charging stations and other applications that require the conversion of a high DC voltage.
Attention: An external fuse with 4A/1500Vdc is required.
Technical data
- 250 to 1500Vdc, 6:1 Input range
- Withstands 1700Vdc surge input for 10 seconds
- 4kVac I/O isolation
- Protective circuits: Short circuit, overload, overvoltage, overtemperature, DC input undervoltage, DC input polarity reversal
- Fanless design, half encapsulated, convection cooled
- Suitable for operation up to 5000 m above sea level
- Overvoltage category II
Additional information
| DC-DC converter | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet DDRH-120 | PDF(275.2 KB) |
|---|---|
| Test Report | PDF(287.81 KB) |
| Carbon Footprint declaration DDR-60 | PDF(73.88 KB) |
Downloads
| 3D Step File DDRH-120 | Zip file (5.02 MB) |
|---|
