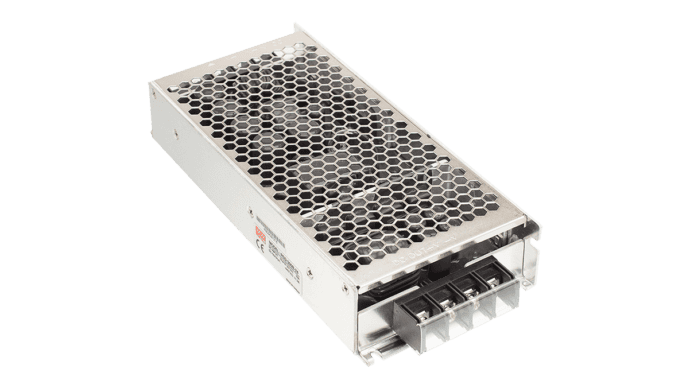

270W DC/DC converter, input 16.8...31.2V, output 12V/22.5A
CHF 111.00 excl. VAT, plus shipping costs
Description
RSD-300B-12 is a robust DC-DC converter with railroad approvals. With an operating temperature range of -40°C to +70°C, a 2:1 input range, low voltage ripple, excellent EMC characteristics and an isolation voltage of 4KVdc, the RSD-300 series is suitable for automotive systems, railroad applications and industrial applications with harsh environmental conditions with high vibrations, a lot of dirt and extreme temperature conditions.
Technical data
- 2:1 Entrance area
- 4000Vdc insulation
- Convection-cooled without forced ventilation
- Half potted
- Overload circuit with constant current limiting
- Complies with railroad approval EN50155 and EN45545-2
- Operating temperature range from -40°C to +70°C
- Dimensions 216 x 97 x 40mm (L x W x H)
- 3-year guarantee
- Manufacturer MEAN WELL
Additional information
| DC-DC converter | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet RSD-300 | PDF(580.93 KB) |
|---|
Downloads
| 3D data RSD-300 | Zip file (799.51 KB) |
|---|
