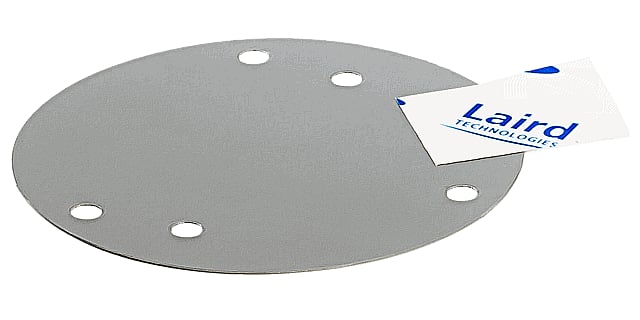

Phase change material, High Performance TIM, ø50
CHF 6.40 excl. VAT, plus shipping costs
Description
Tpcm™ 5000 is a new high performance TIM in the Laird product range. Tpcm™ 5000 has been developed to offer the best price/performance ratio available. Tpcm™ 5000 offers very low thermal resistance by combining a high thermal conductivity of 5.3 W/mK with a minimum bondline thickness and excellent wetting of the contact surfaces. With softening between 50°C and 70°C, the initial pad thickness can be reduced to a bondline of only 25µm. The reliability of Tpcm™ 5000 has been proven in various ageing tests over 1000 hours, resulting in a proven reliability at an operating temperature of 125°C. The special polymer matrix offers superior pump-out resistance compared to thermally conductive greases and other phase change materials. Tpcm™ 5000 has been formulated to have just the right tack, remain on linings and be easily removed for use.
Technical data
Features and benefits
- Thermal conductivity: 5.2 W/mK
- Minimum BLT: 25μm
- Volume resistance: 1.4 x1014 Ω-cm
- Dielectric constant: 30.2 @1KHz 31.2 @1MHz
- Thickness: 0.127mm
- Color: grey
- Operating temperature: -40°C to 125°C
- Hole pattern according to Zhaga standard
- Cost-effective
- Silicone-free formulation that provides a naturally sticky surface
- Fully characterized long-term reliability
- No pumping out
- Simple reworking
Additional information
| Dissipation thermique | ||
|---|---|---|
|
||
| LEDs | ||
|
|
||
Data sheets
| TPCM5000-ZHA | PDF(251.65 KB) |
|---|
Similar products
-

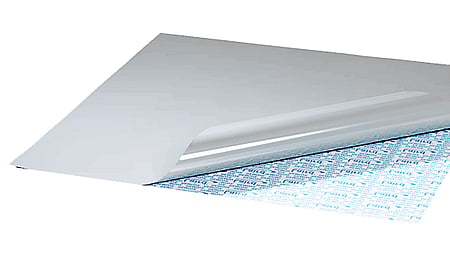

TPCM585-9X9
