LED strips

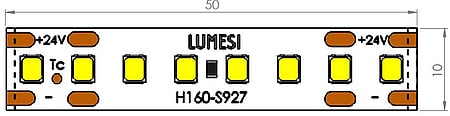

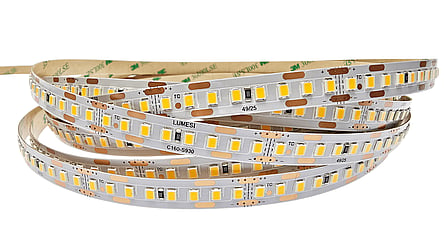

PF15-H160, **NEW**Reel2Reel LED strips, KSF, 24Vdc constant voltage, 17.3W/m
NEW HIGH END REEL2REEL CV LED STRIP
- Now with more copper and improved range with a single-sided power supply
- Reel2Reel cheaper than ever before!
CHF 266.00 excl. VAT, plus shipping costs
Item no:
n. a.
Description
- **NEW**
- New dimmable, flexible Reel2Reel constant voltage LED strip
- Very high efficiency thanks to the series connection of 8 LEDs and, thanks to the new 2835 KSF LEDs, up to 175lm/W!
- Long range of 6m per feed
- 17.3W/m
- Very high color rendering Ra >90
- Very narrow color tolerance, MacAdam3
- Length of the flexible print is 15m without interruption = no solder joints
- Narrow LED to LED distance enables short distance to the diffuser and excellent homogeneity
- High design freedom thanks to 5cm cutting options
- Self-adhesive 3M VHB tape on the back for easy mounting on different surfaces
- Ideal for applications where high luminous flux levels are required, e.g. - general lighting, corridors, etc.
Additional information
| LED strips | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
Data sheets
| PF15-H160-S90 | PDF(837.05 KB) |
|---|
