LED converter constant voltage

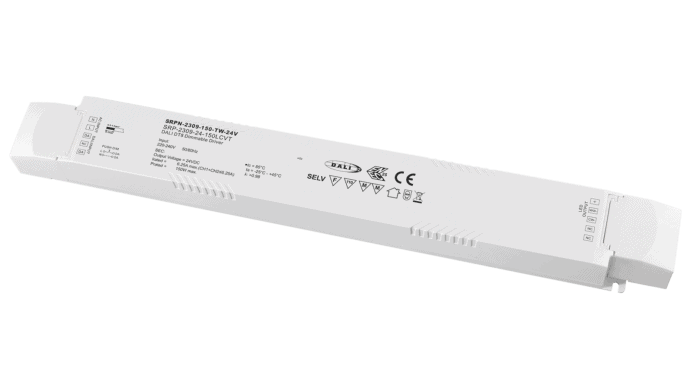

150W DALI2 DT8, 2 channel, Tunable white, 24Vdc constant voltage LED driver
CHF 115.00 excl. VAT, plus shipping costs
Item no:
SRPN-2309-150-TW-24V
Stock level:27 Available immediately
Description
SRPN-2309-150-TW-24V with PWM output and integrated DALI2 DT8 interface is ideal for the operation of Tunable White constant voltage LED applications such as LED strips.
Control
- DALI2 DT8
Application
- Tunable White
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- DALI2 DT8 dimmable 2-channel TW power supply unit
- DALI 2 certified
- 200-240VAC wide input voltage range
- 2-channel 24VDC constant voltage outputs
- Max. output current: 6.25A
- Built-in DALI interface, DALI DT8 device, the device can be controlled via a DALI address
- Color control according to DALI DT8 specifications
- Complies with the DALI IEC 62386-209-:2011 standard
- Generally compatible with DALI masters that support DT8 commands
- IP20 Protection class
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -25°C to +50°C
- Dimension 365.6 x 43 x 30mm
- 5 year guarantee
Additional information
| LED constant voltage | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| SRPN-2309-150-TW-24V | PDF(239.87 KB) |
|---|
