LED converter constant voltage

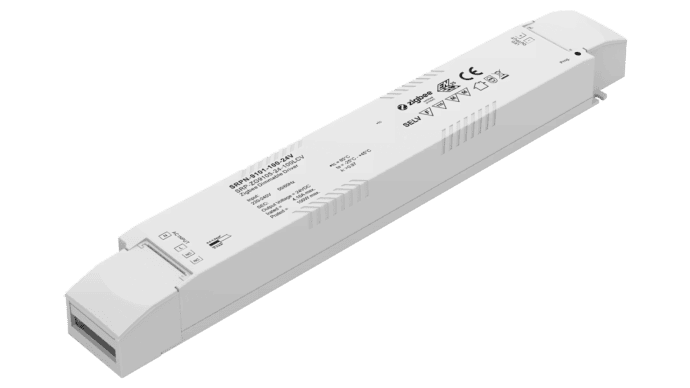

150W ZIGBEE 3.0, 24Vdc constant voltage LED driver
CHF 124.50 excl. VAT, plus shipping costs
Item no.:
SRPN-9101-150-24V
Stock level:44 Available immediately
Description
SRPN-9101-150-24V with PWM 1.5kHz output and integrated ZigBee 3.0 interface is ideal for operating constant voltage LED applications such as LED strips.
Control
- ZigBee 3.0
Application
- Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- 150W ZigBee Single Color LED product based on ZigBee 3.0 protocol
- Compatible with various ZigBee systems such as Philips Hue, Amazon Alexa, etc.
- Can be controlled directly (without ZigBee hub) via Touch Link
- 200-240VAC wide input voltage range
- 1-channel DC24V constant voltage outputs
- Supports ZigBee Green power and can be operated with up to 20 ZigBee Green power remote controls
- Standby power consumption less than 0.5 W
- IP20
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -25°C to +45°C
- Dimension 365.6 x 43 x 30mm
- 5 year guarantee
Additional information
| LED constant voltage | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| SRPN-9101-150-24V | PDF(412.26 KB) |
|---|
