150W DALI2 DT8 Tunable White Constant-Voltage 24 Vdc LED Driver
CHF 113.40 excl. VAT, plus shipping costs
Description

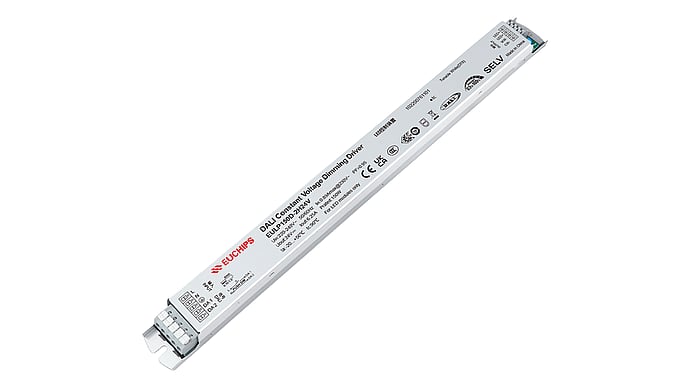

The new EUCHIPS EULP150D-2H24V is a high-performance, ultra-slim 24V constant-voltage LED driver designed for Tunable White applications.
The driver combines 150W of output power, two output channels, and DALI-2 DT8 control in a housing measuring just 360 × 30 × 21 mm. This makes it ideal for professional tunable-white installations requiring high power output and operating in confined spaces.
Control
- DALI2 DT8, AC-PUSH
Application
- Tunable White
Dimming range
The load-independent dimming range is from 0.1-100%.
Dimming method: PWM dimming, smooth and deep dimming down to 0.1%. Very high PWM frequency 3.3kHz
Additional information
| LED constant voltage | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| Maintenance aids | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
Data sheets
| EULP150D-2H24V | PDF(2.94 MB) |
|---|
