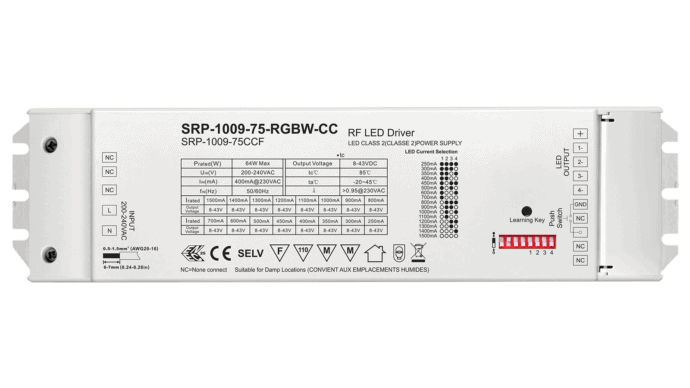

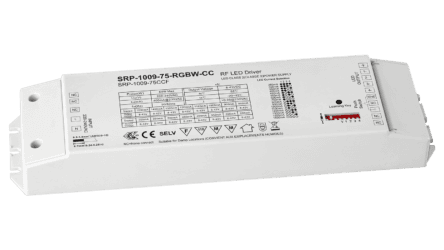

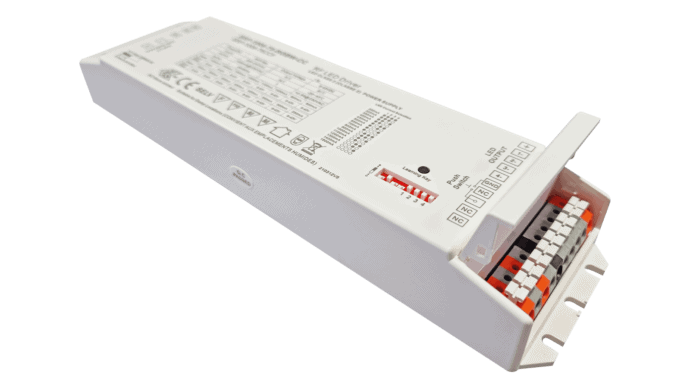

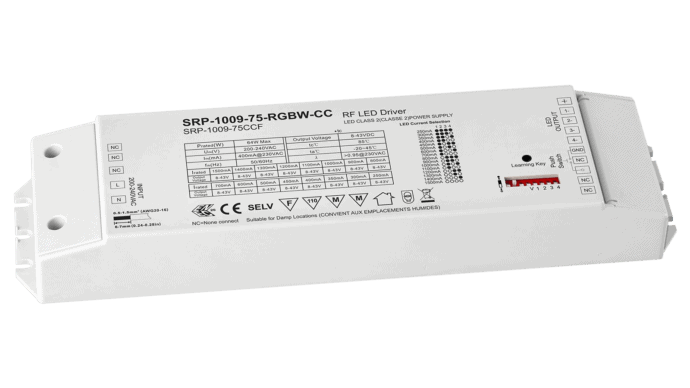

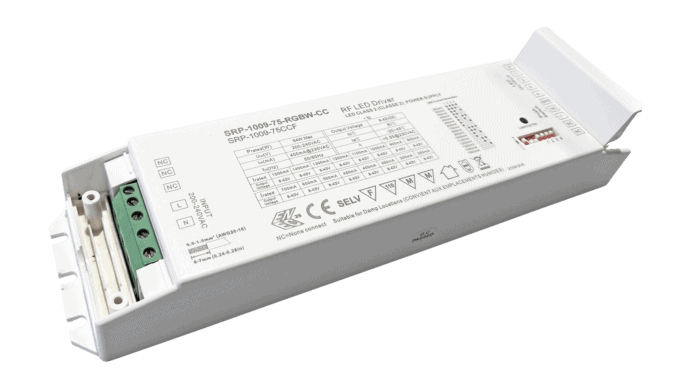

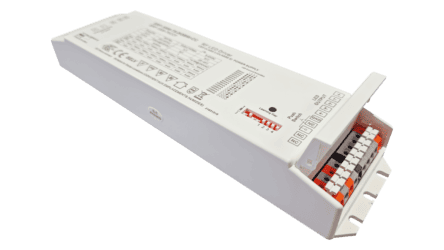

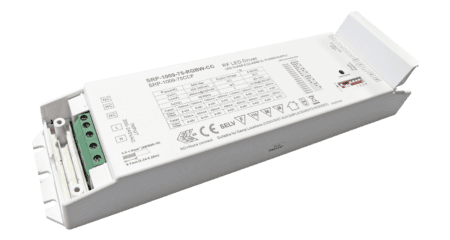

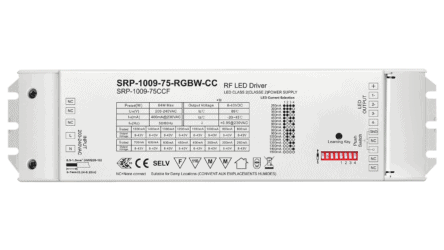

75W RF/LV PUSH, RGBW, constant current LED driver
CHF 115.00 excl. VAT, plus shipping costs
Description
SRP-1009-75-RGBW-CC is a flexible, dimmable RGBW LED converter with constant current output. The power supply unit can be controlled by radio (RF Wireless).
Control
- RF Wireless, LV Push
Application
- RGBW, TW, Single Color, RGB
Dimming range
The load-independent dimming range is 0% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- RF Wireless dimmable 4-channel RGBW power supply unit
- 200-240VAC Input voltage range
- 4-channel constant current output (total output power up to 75W)
- Output current selectable from 250mA to 1500mA via DIP switch
- Output voltage: 8-43VDC
- High power factor and efficiency
- Can be used as a single color, dual color (TW) RGB or RGBW power supply unit
- Compatible with all remote controls in the SC-1009 series
- Push dimming function possible (if connected)
- IP20 Protection class
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 244 x 64 x 32mm
- 5 year guarantee
Additional information
| LED constant current | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| SRP-1009-75-RGBW-CC | PDF(381.29 KB) |
|---|
