LED converter constant current

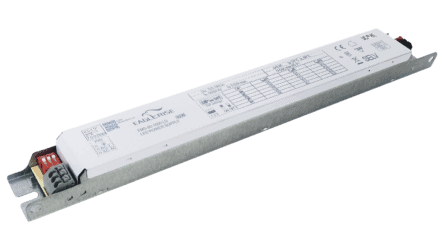

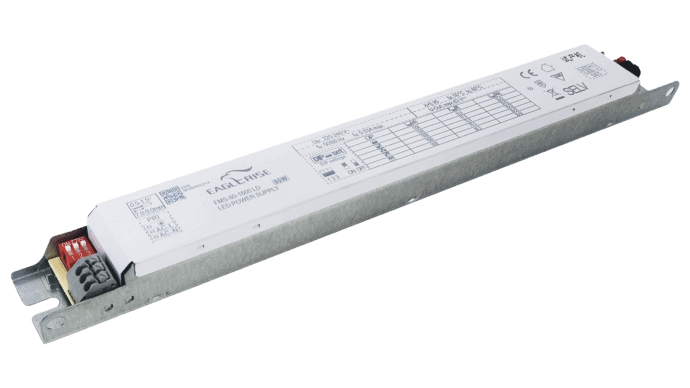

80W LED driver constant current 1200/1300/1400/1500/1600mA, 36-52Vdc, MD connector
CHF 33.00 excl. VAT, plus shipping costs
Item no.:
FMS-80-1600 LD-MD
In stock: Available to order
Packaging ex works:
56 piece
Description
The LED driver FMS-80-1600 LD with constant current output is designed for operating LED lighting applications from 1200 to 1600 mA in the voltage range from 36 to 52Vdc. The output current can be set using the DIP switch on the device.
Mounted with MD plug connector MD-WIRE0500-F-AWG20
Technical data
- Forward voltage range 36 to 52Vdc
- Adjustable output currents 1200mA / 1300mA / 1400mA / 1500mA / 1600mA (factory setting)
- Dimensions 280 x 30 x 21mm (L x W x H)
- 5 year guarantee
- Manufacturer: Eaglerise
- For the T5/T8 LUT LED luminaires
Additional information
| LED constant current | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet FMS-80-1600 LD | PDF(1.29 MB) |
|---|---|
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D Step File FMS-80-1600 LD | Zip file (350.37 KB) |
|---|
