LED converter constant current

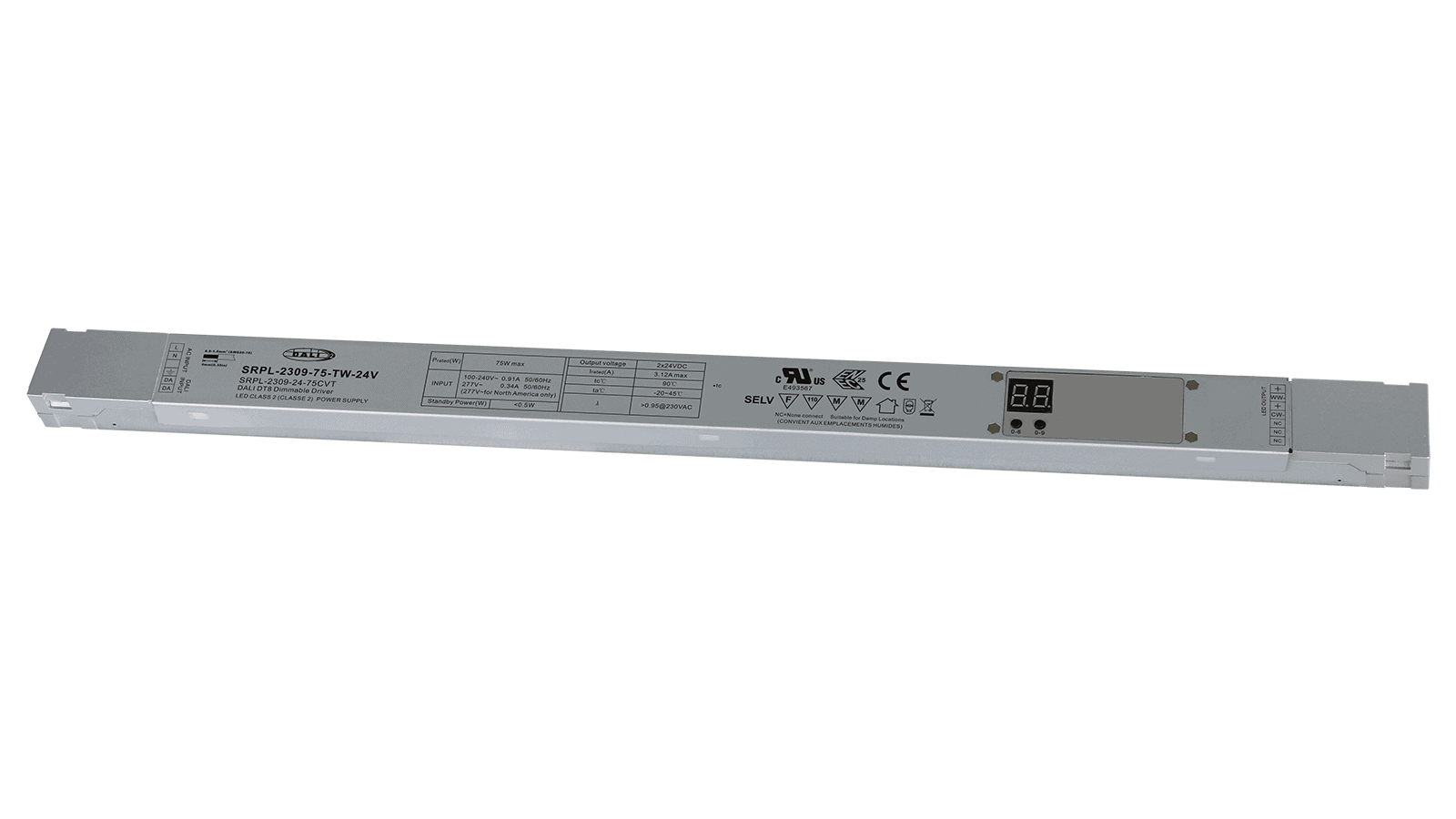

75W DALI DT8, Tunable white, constant current LED driver
CHF 20.00 excl. VAT, plus shipping costs
Item no:
SRPL-2309-75L-TW-C1400
Stock level:22 Available immediately
Description
SRPL-2309-75L-TW-C1400 is a flexible, dimmable Tunable white LED converter with constant current output. The power supply unit can be controlled with DALI DT8.
Control
- DALI DT8
Application
- Tunable White
Dimming range
The load-dependent dimming range is 1% to 100% of the connected load.
Dimming method: Amplitude dimming, Flickerfree
Technical data
- DT8 dimmable 2-channel Tunable white power supply unit
- 100-277VAC wide input voltage range
- 2-channel constant current output
- Output current 1400mA
- Output voltage: 8-52VDC
- The maximum output power is 75W
- Class 2 power supply unit, fully insulated metal housing
- High power factor and efficiency
- Built-in DALI interface, DALI DT8 device, the device can be controlled via a Dali address
- Color control according to DALI DT8 specifications
- Complies with the DALI IEC 62386-209-:2011 standard
- Generally compatible with DALI masters that support DT8 commands
- IP20 Protection class
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 486 x 30.7 x 20.9mm
- 5 year guarantee
Additional information
| LED constant current | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| SRPL-2309-75L-TW-C1400 | PDF(180.35 KB) |
|---|
