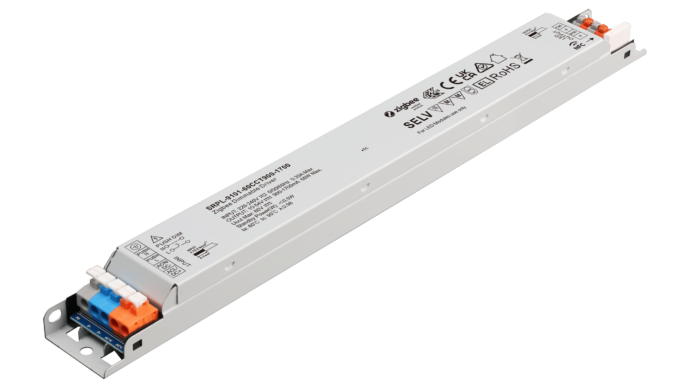

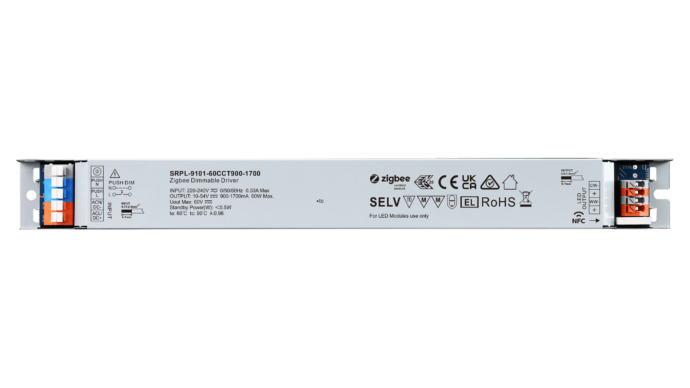

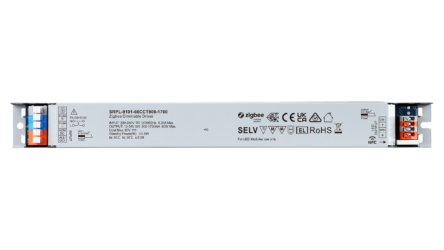

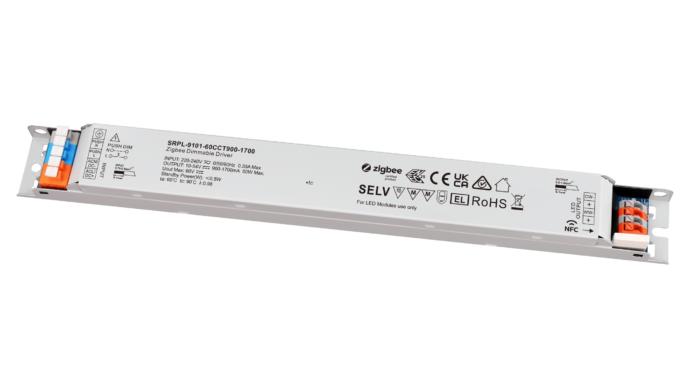

60W ZigBee 3.0, Tunable White, AC-PUSH, Linear constant current LED driver, 900-1700mA, NFC
CHF 81.10 excl. VAT, plus shipping costs
Description
SRPL-9101N-60CCT900-1700 is a flexible, dimmable Tunable White 60W LED converter with constant current output. The power supply unit can be controlled with ZigBee 3.0. The output current can be set between 900 and 1700mA via NFC.
In a slim linear 30 x 21mm aluminum housing, ideal for profiles and linear luminaires.
Control
- ZigBee 3.0, AC-PUSH
Application
- Tunable White
Current setting
- NFC
Functions programmable with app and NFC
- CLO (Constant Lumen Output)
- CD (Corridor Mode)
- EL (Emergency Mode)
Dimming range
The load-dependent dimming range is 0.1% to 100%
Dimming method: Amplitudes/CCR
Technical data
- ZigBee 3.0 and AC-PUSH dimmable 2-channel NFC power supply unit
- Tunable White
- 2 channel 900~1700mA constant current output, selectable via NFC program tool, default 1500mA
- In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
- Dimmable LED driver. Max. output power 60W
- Output voltage range: 10-54VDC
- Class 2 power supply unit
- High power factor and efficiency
- For switching and dimming LED lighting fixtures
- Amplitude dimming, smooth and deep dimming down to 0.01%
- Protection class IP20
- 5 year guarantee
- Dimensions: 285 x 30 x 21mm
DOWNLOAD SR NFC TOOL
ANDROID APPLE
Additional information
| LED constant current | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| SRPL-9101N-60CCT900-1700 | PDF(1.29 MB) |
|---|
