10W DALI2 DT6 / AC-PUSH, constant current LED driver, 100-500mA, NFC
CHF 33.70 excl. VAT, plus shipping costs
Description

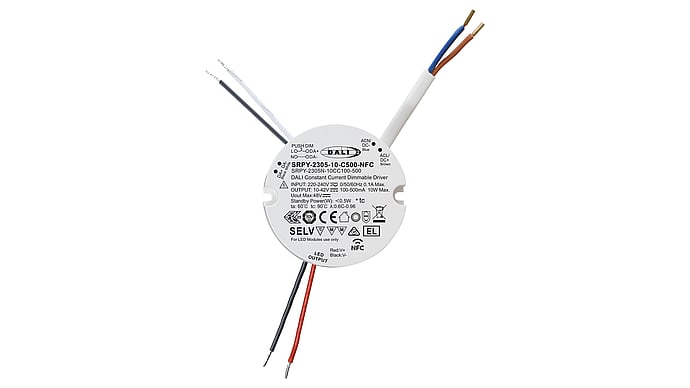

SRPY-2305-10-C500-NFC is a flexible, dimmable LED converter with constant current output. The power supply unit can be controlled with DALI. The round format is ideal for recessed spotlights and downlights.
Control
- DALI2, DALI DT6, AC-PUSH
Application
- Single Color
Current setting
- NFC
Dimming range
The load-dependent dimming range is 0.1% to 100% of the connected load.
Dimming method: Amplitude/CCR, smooth and deep dimming down to 0.1%
Functions
- CLO function for an even better experience
- CD(Corridor Mode): automatic switching on of the light when someone enters the room
Technical data
- DALI2 DT6 and AC-PUSH dimmable 1-channel single color power supply unit
- 1 channel 100~500mA constant current output, selectable via NFC program tool, default 250mA
- 200-240VAC wide input voltage range
- Output voltage: 10-42VDC
- The maximum output power is 10W
- Built-in DALI2 interface, DALI2 DT6 device
- Generally compatible with DALI masters that support DT6 commands
- CLO function for an even better experience
- CD(Corridor Mode): automatic switching on of the light when someone enters the room
- Amplitude dimming, smooth and deep dimming down to 0.01%
- Error message Function
- IP20 Protection class
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +60°C
- Dimension Ø57 x 24mm
- 5 year guarantee
DOWNLOAD SR NFC TOOL
ANDROID APPLE
Additional information
| LED constant current | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| SRPY-2305-10-C500-NFC | PDF(1.49 MB) |
|---|
