LED IP flex strips
**NEW** IP67 Reel-to-Reel LED strips, KSF, 24 Vdc constant voltage, 14 W/m

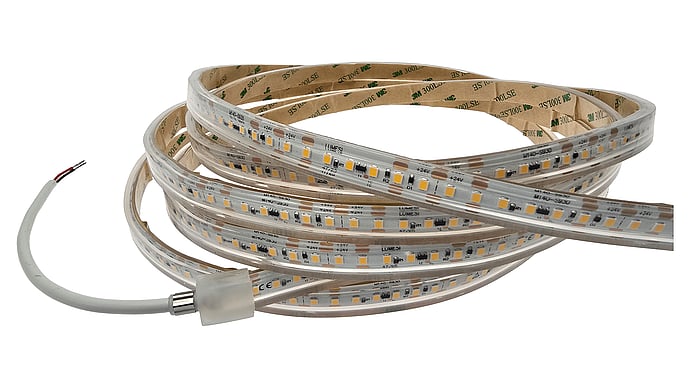

NEW HIGH-END IP67 REEL-TO-REEL CV LED STRIP
CHF 191.40 excl. VAT, plus shipping costs
Item No.:
PF5-M140-S940-UK-IP67
Stock level:30 Available immediately
Description
- **NEW**
- New Dimmable, FlexibleReel2Reel Constant-Voltage LED Strip with IP67 Rating
- 100% constant luminous fluxover the entire length of up to8.5 meterswith a single power supply, thanks to a current-control IC, optimized layout, and more copper
- Very high efficiency with CRI>90 thanks to the KSF 2835 LED
- Extremely high color rendering Ra >90
- Very narrow color tolerance, MacAdam 3
- 14W/m
- Luminous flux up to 2,120 lm/m
- TM-21 L80B10 @ Ts. 85°C: >102kh
- The length of the flexible circuit board is 5 meters without any breaks = no solder joints
- Narrow LED to LED distance enables short distance to the diffuser and excellent homogeneity
- Very high design freedom thanks to 5cm cutting options
- Only 12 mm wide
- Can be cut and resealed with an end cap
- Matching mounting profiles and clips
- Self-adhesive 3M VHB tape on the back for easy mounting on different surfaces
- 200 mm high-quality silicone cable, white
It can be cut every 5 cm and resealed using the M140-IP67-ENDCAP silicone end cap and silicone adhesive.

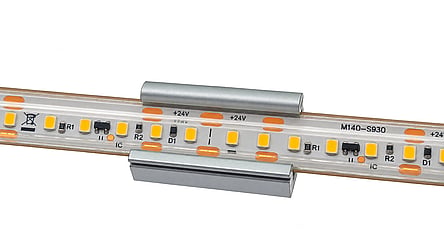

Installation using the M140-IP67-CLIP clip or the M140-IP67-PROF guide profile.
Additional information
| LED IP flex strips | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LED strips | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| Maintenance aids | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
Data sheets
| PDF(2.22 MB) |
Accessories
-
PWM-120-24DA2
120W LED power supply unit with PWM output 24V/5A, DALI2CHF 84.80Available to order -
PWM-200-24DA2
200W LED power supply unit with PWM output 24V/8.3A, DALI2, AC PushCHF 101.40Available to order -
HLG-240H-24A
240W LED driver CV+CC 24V/10ACHF 120.40120 Available immediately -
XLN-60-24-DA2
60W LED control gear 24V/2.5A, DALI2, AC PushCHF 53.002 Available immediately -
ELG-100-24DA-3Y
96W LED driver CV+CC 24V/4A, DALICHF 74.8012 Available immediately -
M140-IP67-ENDCAP
Silicone End Cap for PF-M140-IP67Available to order -
M140-IP67-CLIP
Aluminum Clip for PF-M140-IP67Available to order -
M140-IP67-PROF
Aluminum profile for PF-M140-IP67, 1 mAvailable to order -
CBU-DALI-IP
CASAMBI to DALI signal converter for outdoor applications, CASAMBI input, DALI outputCHF 288.40Available to order -
LJB-2TM20
Waterproof junction box IP68, 2-way, M20CHF 7.40526 Available immediately
Similar products
-
SIP08-1006-940-15-SV
Flexible IP67 neon LED strip / Sideview / 15W / 4000K / CRI >902 Available immediately -
SIP08-1007-940-15-TV
Flexible IP67 neon LED strip / Topview / 15W / 4000K / CRI >903 Available immediately
