LED heat sink

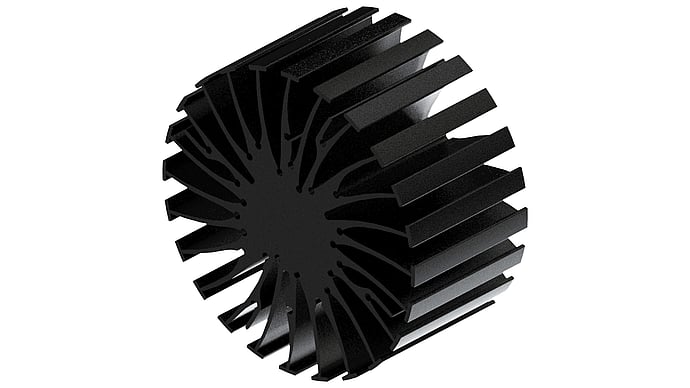

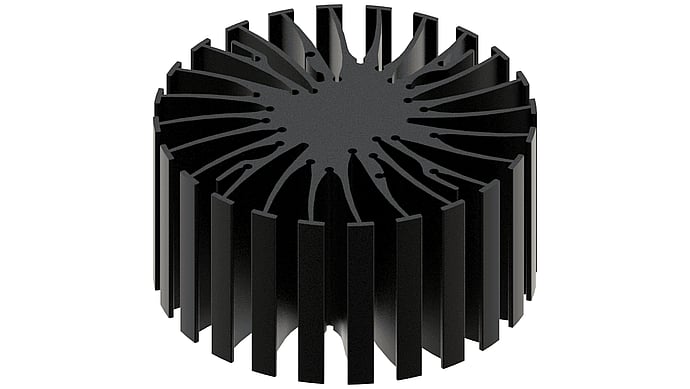

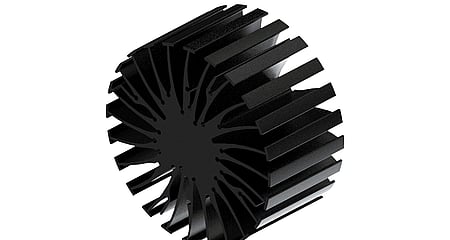

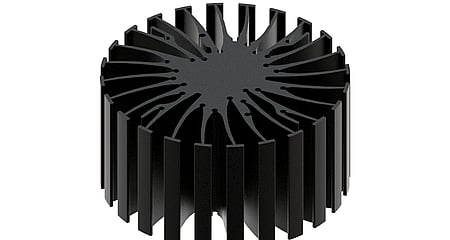

Modular LED star heat sink, ø99mm, H 50mm, Black anodized
CHF 22.20 excl. VAT, plus shipping costs
Item no:
MODULED9950
Stock level:16 Available immediately
Description
- Modular LED Star Cooler for spotlights and downlights from 3,600-7,200lm
- 99mm x 50mm
- Rth 1,34°C/W

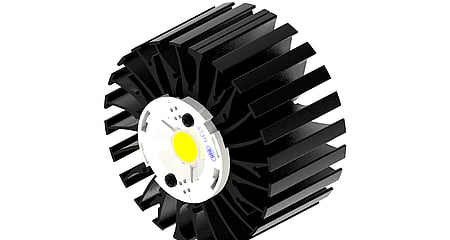

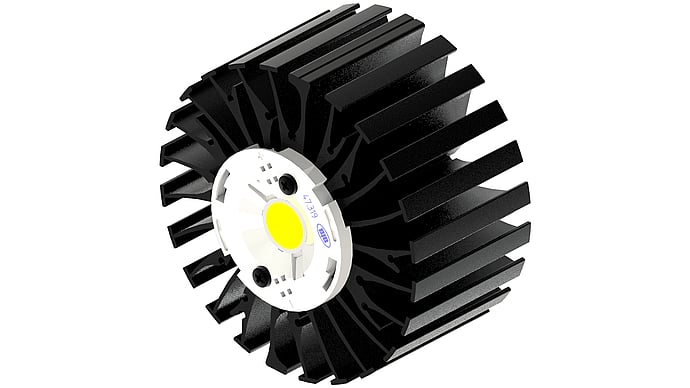

- Mounting holes for Zhaga book 3 LED modules & 25 mounting holes for all LED COB brands
- Black anodized
Additional information
| LED heat sink | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| LEDs | ||||||||||
|
||||||||||
Data sheets
| MODULED9950 | PDF(2.22 MB) |
|---|---|
| Dimensions | PDF(469.45 KB) |
| Thermal Data | PDF(562 KB) |
Similar products
-
LPF60A30-5-B
LED pin fin heat sink, ø60mm, H 30mm, Base 5mm, Black anodizedCHF 14.50Available to order -
LPF50A30-5-B
LED pin fin heat sink, ø50mm, H 30mm, Base 5mm, Black anodizedCHF 10.00Available to order -
MODULED PICO 4780
Modular LED star heat sink, ø47mm, H 80mm, Black anodizedCHF 13.7014 Available immediately -
MODULED PICO 4750
Modular LED star heat sink, ø47mm, H 50mm, Black anodizedCHF 10.206 Available immediately -
LPF40A50-5-B
LED pin fin heat sink, ø40mm, H 50mm, Base 5mm, Black anodizedCHF 8.80Available to order -
LPF50A40-5-B
LED pin fin heat sink, ø50mm, H 40mm, Base 5mm, Black anodizedCHF 10.50Available to order -
LPF40A30-5-B
LED pin fin heat sink, ø40mm, H 30mm, Base 5mm, Black anodizedCHF 8.40Available to order -
LPF60A40-5-B
LED pin fin heat sink, ø60mm, H 40mm, Base 5mm, Black anodizedCHF 14.90Available to order -

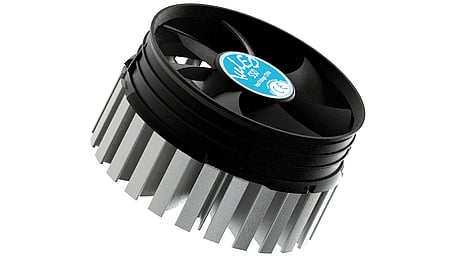

ICE LED 550
