LED dimmer

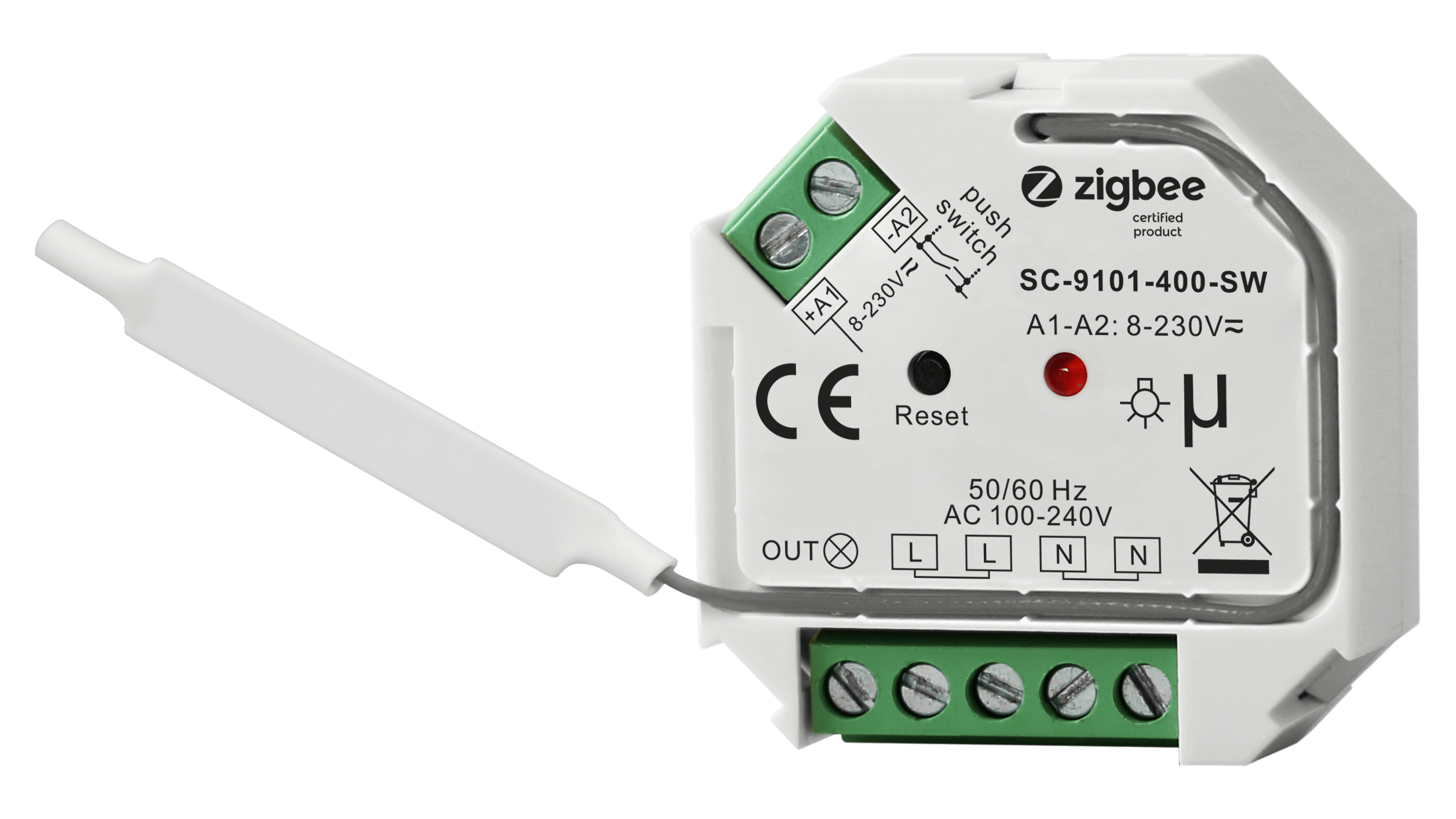

Wireless switching actuator ZigBee 3.0 400W
CHF 60.70 excl. VAT, plus shipping costs
Item no:
SC-9101-400-SW
Stock level:77 Available immediately
Description
- ZigBee flush-mounted switch based on the latest ZigBee 3.0 protocol
- 100-240VAC wide input and output voltage
- Supports resistive loads and capacitive loads
- 1 channel output, up to 400W
- Input and output with screw terminals, safe and reliable
- Enables ON/OFF control of the connected load
- ZigBee end device that supports Touchlink commissioning
- Can be connected directly to a compatible ZigBee remote control via Touchlink without a coordinator
- Supports the self-creation of a Zigbee network without a coordinator and the addition of other devices to the network
- Supports find and bind mode for binding a ZigBee remote control
- Supports Zigbee Green Power and can handle a maximum of 20 Zigbee Green Power remote controls
- Compatible with universal ZigBee gateway products
- Can be controlled via a universal 8-230V input with one-wire push-button
- Mini size, easy to install in a standard 86*86mm wall box
Additional information
| LED dimmer | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| SC-9101-400-SW | PDF(711.29 KB) |
|---|
