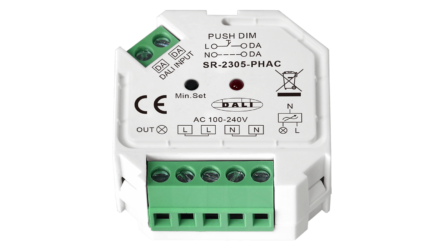

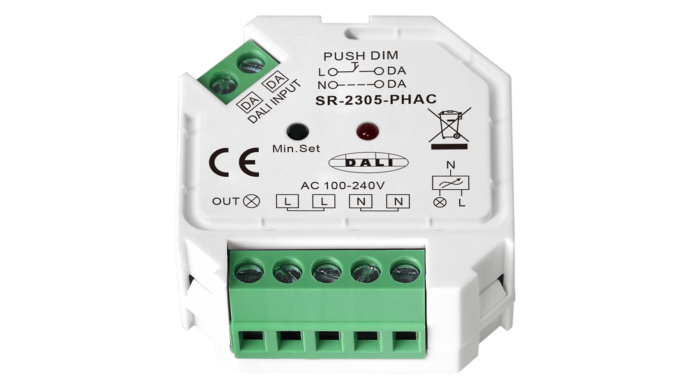

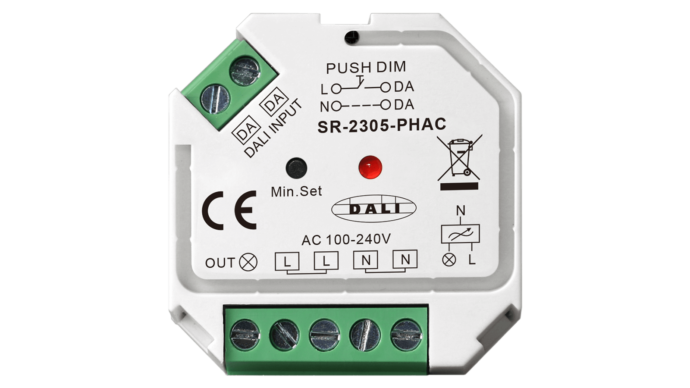

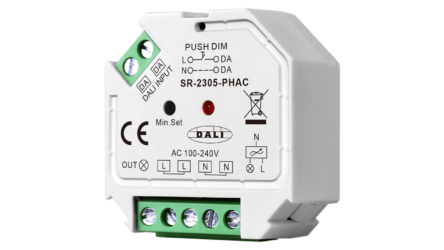

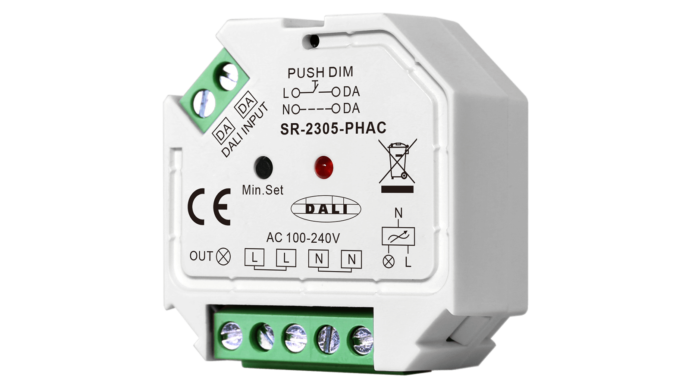

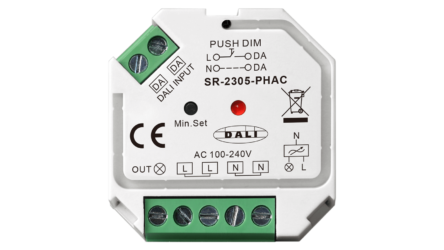

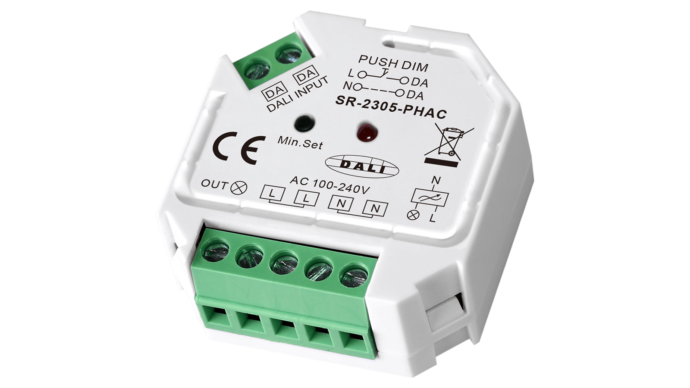

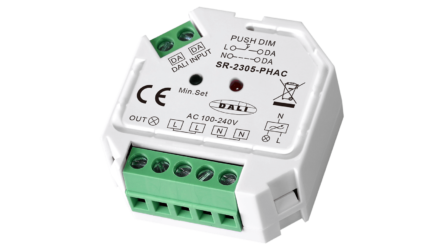

LED dimmer
Signal converter DALI2 / AC-PUSH to phase cut-off
CHF 58.80 excl. VAT, plus shipping costs
Item no:
SR-2305-PHAC
Stock level:62 Available immediately
Description
- Built-in DALI-2 interface, DALI DT6 device
- Suitable for all DALI systems on the market
- AC trailing edge phase control dimmer with DALI and Pushbutton switch interface
- 100-240VAC wide input and output voltage,
- 1 DALI address for controlling 1 channel output, up to 400W
- Input and output with screw terminals, safe and reliable
- Trailing edge dimming, supports resistive and capacitive loads
- Innovative function for setting the minimum brightness
- One-wire push-button input for push-dim function
- Wide compatibility with universal 8V-230V~ input push-buttons
- For dimming and switching single-color dimmable LED lamps, traditional light bulbs and halogen lamps
- Mini size, easy to install in a standard wall box
- Degree of protection: IP20
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| SR-2305-PHAC | PDF(470.83 KB) |
|---|
