LED dimmer

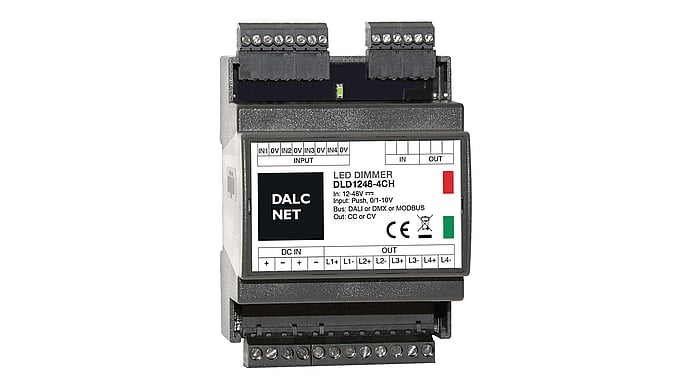

4 channel MODBUS LED dimmer, constant voltage 12-48VDC

CHF 97.10 excl. VAT, plus shipping costs

Item no: DLD1248-4CV-MODBUS
Stock level:2 Available immediately
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

  • Output: 4 channels
  • BUS+SEQUENCER+FADER+DIMMER+DRIVER
  • Input: DC 12/24/48 Vdc
  • BUS command: MODBUS
  • Local command: 4x N.O. buttons (with or without memory), 0-10V, 1-10V and potentiometer 10KOhm
  • Control elements: Dimmer, Dim to Warm, Tunable White, RGB, RGBW
  • Control outputs and current outputs for R-L-C loads
  • Typical efficiency > 95%
  • Setting the brightness up to complete switch-off (Dim to Dark)
  • Minimum brightness: 0.1% (1% in Push)
  • D-PWM modulation
  • Setting the D-PWM frequency: 300 / 600 / 1200 Hz
  • Adjustable output curve: Linear / Quadratic / Exponential
  • Soft start and soft stop
  • Smooth dimming control
  • Master / slave function (DMX variant)
  • Extended temperature range
  • 100% function test
  • 5 year guarantee

Additional information

LED dimmer
Control

Low voltage push, 0-10V, 1-10V, resistor, MODBus

Application

Single Color, Tunable White, RGB, RGBW

Input voltage range (Vdc)

12...48

Channels

4

Output voltage range (Vdc)

12...48

Output current per channel (A)

5

Length (mm)

72

Width (mm)

92

Height (mm)

62

IP protection

IP20

Connection

Screw terminal

Product series

DLD

Manufacturer

DalcNet

Manufacturer's warranty

5 years
LEDs

Data sheets

DLD1248-4CV-MODBUS PDF(1.11 MB)
