5 channel CASAMBI LED dimmer, constant voltage 12-48VDC, linear compact design
CHF 125.50 excl. VAT, plus shipping costs
Description
The LINE-5CV-CASAMBI is a 5-channel output LED dimmer that can be controlled via Bluetooth using the Casambi app or locally using two normally open buttons. This versatile LED dimmer is suitable for controlling a wide range of loads, including LED strips and LED modules in white, monochrome colors, dynamic white, RGB, RGB+W, RGB+WW and RGB+TW at constant voltage. You can connect a power supply with 12-24-48 VDC and the maximum output current is 12A. The dimmer has protection functions, including overload protection, underload protection, reverse polarity protection and input fuse protection.
Using the Casambi app, the LINE-5CV-CASAMBI enables simple brightness settings and complex lighting control systems, including the creation of scenarios, animations, timers, daylight controls and more. The Casambi app can be downloaded free of charge from the Apple App Store and the Google Play Store.
For smooth use of the Casambi app, please visit the Casambi forum on their website: https://support.casambi.com/support/home.
Technical data
- DIMMER LED CASAMBI
- Power supply: 12-24-48 Vdc
- Voltage output for LED strips and LED modules
- WHITE, MONOCOLOR, DYNAMIC WHITE, RGB, RGB+W, RGB+WW and RGB+TW light control
- Command: CASAMBI APP
- Local command: Button N°2 Normally open
- Control voltage output R
- Minimum brightness level: up to 0.8%
- PWM modulation
- Frequency PWM 4000Hz
- Linear curve
- Soft start and soft stop
- Gentle dimming of the brightness
- Extended temperature range
- 100% function test
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
Data sheets
| LINE-5CV-CASAMBI | PDF(669.18 KB) |
|---|---|
| Casambi App User Guide | PDF(14.68 MB) |
Accessories
-
CASAMBI-RC03-W
Casambi remote control with wall bracket, whiteCHF 77.0029 Available immediately -
LSE-CASAMBI-FM
Casambi recessed luminaire PIR motion detector and brightness sensorCHF 87.5026 Available immediately -
CASAMBI-PIR01
Casambi PIR sensor, whiteCHF 85.004 Available immediately -
SF15-F140-RGB
Flexible RGB LED strip / 22W / RGB / 15m29 Available immediately -
SF15-V192-RGBS930
Flexible RGBW LED strip / 23W / RGB+3000K CRI90 / 15m9 Available immediately -
CABLE2M-RGBW-HF
RGBW cable with white jacket, halogen-free (roll = 200m)CHF 480.001990 Available immediately -
SLIM-CBU-DALI
Signal converter CASAMBI to DALI or 0/1-10V, CASAMBI input, DALI or 0/1-10V outputCHF 99.5023 Available immediately -
1320200
WS-LIV-BLE-2-WS Casambi wall transmitter white with dual rockerCHF 69.80Available to order
Similar products
-

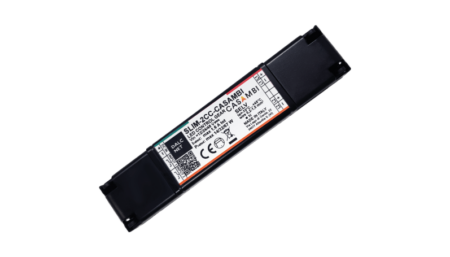

SLIM-2CC-CASAMBI
2 channel CASAMBI LED dimmer constant current, input 12-48VDC, output max 1.6ACHF 131.304 Available immediately -

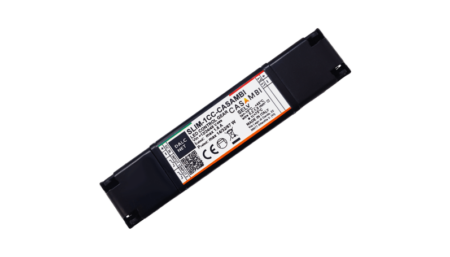

SLIM-1CC-CASAMBI
