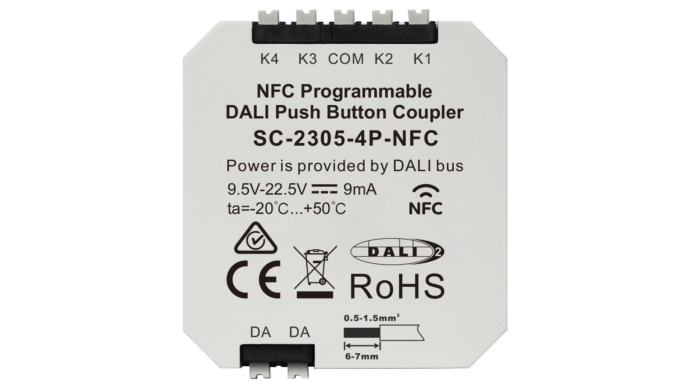

DALI2 DT6 / DT8 NFC programmable push-button coupler, 4 buttons

Description

• DALI-2 control device with standalone mode and DALI-2 instance mode
• 4 channels push-button or motion sensor input
• Four DALI-2 push-button instances are available for instance mode
• In accordance with IEC62386-101, IEC62386-103, IEC62386-301
• The functionality of the standalone mode can be easily configured via NFC
• The functionality of the DALI-2 instance mode can be configured via the DALI Application Controller
• Multi-master capable, several modules can be installed on the DALI line
• Controlled DALI device type for standalone mode can be freely configured via the NFC app
• Enables the control of DT6, DT8 Tc, DT8 XY, DT8 RGBWAF DALI ballasts
• Controlled object of each push-button switch for master mode can be freely configured via the NFC app
• Standalone mode supports broadcast, single address and group control
• In standalone mode, each button supports three different functions: short press, long press, double-click
• For standalone mode, the DALI command, which is triggered by pressing a push-button, can be freely configured via the NFC app
• DALI bus powered, no additional power supply required
• Simple installation: the device can be installed in a flush-mounted box
