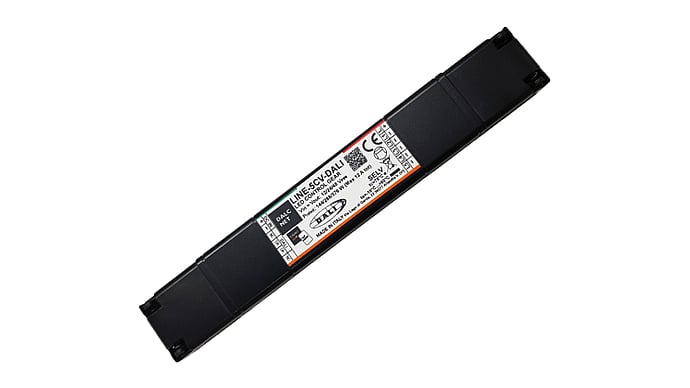

5 channel DALI2 LED dimmer, constant voltage 12-48VDC, linear compact design
CHF 73.40 excl. VAT, plus shipping costs
Description
LINE-5CV-DALI is a 5-channel PWM (Pulse With Modulation) Constant Voltage (CV) LED dimmer that can be connected to a SELV constant voltage supply (12 ÷ 48) Vdc. The dimmer is suitable for controlling loads such as LED strips and white, monochrome, RGB, RGB+W, RGB+TW (Tunable White) or WA (White Amber) LED modules at constant voltage and can be controlled via the DALI (Digital Addressable Lighting Interface) digital protocol.
LINE-5CV-DALI can supply a maximum output current of 12 A and has the following protective functions: Detection and short-circuit protection on the LED outputs, overvoltage and undervoltage protection, reverse polarity protection and input fuse.
With the Dalcnet LightApp© mobile application and smartphones equipped with Near Field Communication (NFC) technology, it is possible to configure several parameters when the device is switched off, including the modulation frequency, the adjustment curve and the maximum/minimum brightness levels. Dalcnet LightApp© can be downloaded free of charge from the Apple APP Store and Google Play Store.
APPLE ANDROID
Technical data
- DIMMER LED
- Power supply (DC IN): 12-24-48 Vdc
- Output (DC OUT): Value equal to the input voltage, modulated for LED strips and LED modules
- WHITE, SINGLE-COLOUR, RGB, RGB+W, RGB+TW and RGB+WA lighting control
- Remote control via BUS (DALI)
- Constant voltage outputs for R loads
- PWM modulation can be set from 300 to 4000 Hz
- Short-circuit protection on the LED outputs
- Device configuration via Dalcnet LightApp© mobile application, parameters can be set:
- PWM frequency
- Dimming curve
- Power ON and system failure levels
- Detection and protection functions
- Transition parameters (crossfade)
- Groups and scenarios
- Opto-isolated BUS input
- Soft ON/OFF
- Gentle dimming of the brightness
- Extended temperature range
- 100% function test
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
Data sheets
| LINE-5CV-DALI | PDF(1.4 MB) |
|---|
