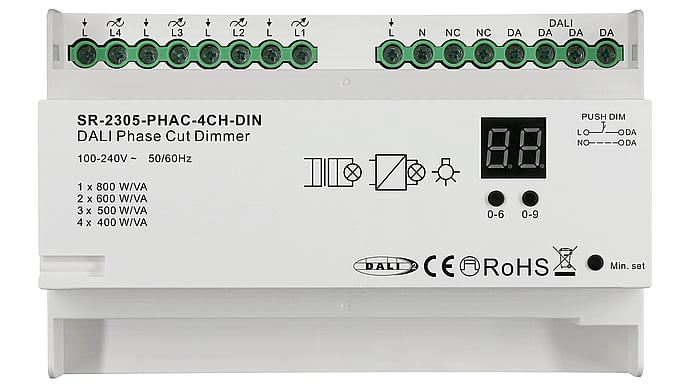

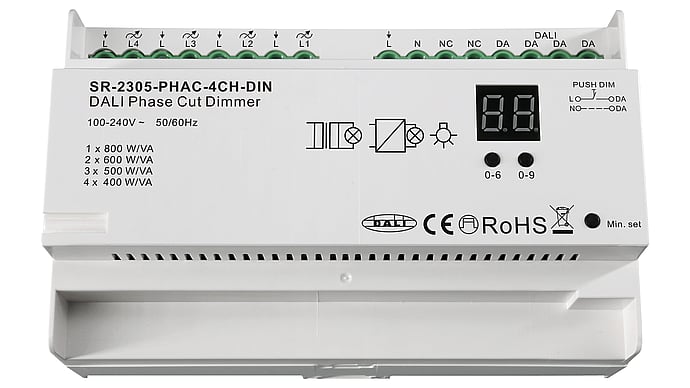

LED dimmer

4 channel DALI leading edge, trailing edge dimmer for DIN RAIL

CHF 154.70 excl. VAT, plus shipping costs

Item no: SR-2305-PHAC-4CH-DIN
Stock level:3 Available immediately
Delivery time request  Print PDF

Description

  • Complies with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
  • Input voltage: 100-240VAC
  • 4 x 400W
  • Integrated DALI-2 interface, DALI DT6 device
  • Compatible with all DALI systems on the market
  • Safe and reliable design with complete insulation
  • DALI phase dimmer, trailing edge phase dimming
  • Supports resistive and capacitive loads
  • DALI signal input, DALI address can be set via buttons and shown on the digital display
  • DALI address number can be set to 1/2/3/4 to control 4 channels simultaneously or separately
  • 4 channels AC100-240V output
  • For dimming and switching single-color dimmable LED lamps, dimmable LED drivers, conventional incandescent lamps and halogen lamps
  • DIN rail mounting, quick and easy
  • 5 year guarantee

Additional information

LED dimmer
Control

DALI, AC Push Dimming

Application

Single Color

Power (W)

400

Channels

4

Output current per channel (A)

1.8

Length (mm)

145.4

Width (mm)

90

Height (mm)

66.4

IP protection

IP20

Connection

Screw terminal

Product series

SR-2305

Manufacturer

Sunricher

Manufacturer's warranty

5 years

LEDs

Data sheets

SR-2305-PHAC-4CH-DIN PDF(479.43 KB)
