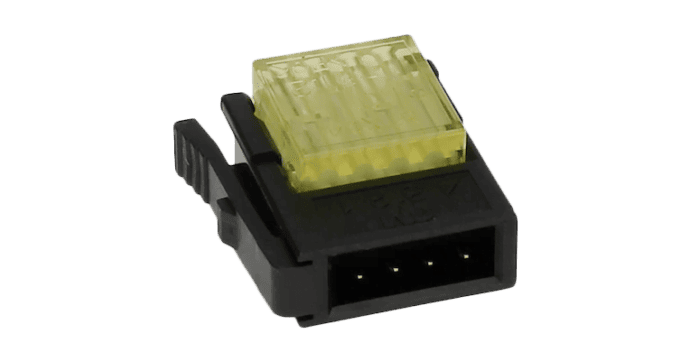

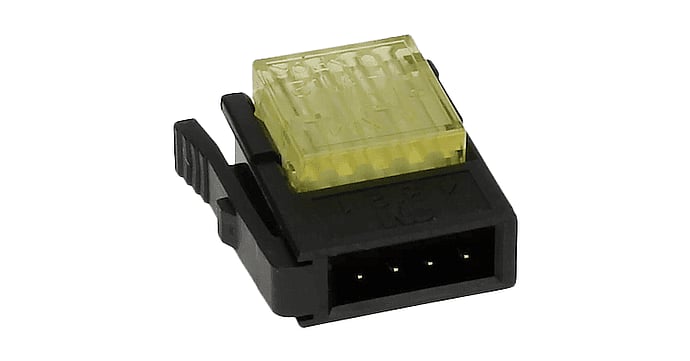

Plug square 4p IDC Mini Clamp II yellow
CHF 6.50 excl. VAT, plus shipping costs
Description
- Designed for the typical wiring specifications of European and North American suppliers.
- Simple, fast and reliable IDC connection
- Integrated cable holder
- The design is suitable for different cable diameters
- No special tools required
- The locking mechanism enables a robust field connection
- Compact design saves space on the board
- High number of mating cycles
- RoHS compliant as per regulatory information appendix E1 & C1
Technical data
Number of poles: 4 p
Gender: Male
Cable outlet: 180 °
Cable connection type: IDC
Shielding: No
Rated current: 3 A
Rated voltage: 32 V
Locking type: Latch-Lock
Pitch: 2 mm
Connection cross-section (AWG): 20 AWG - 24 AWG
Connection cross-section (mm²): 0.25 mm² - 0.5 mm²
Operating temperature: -20 °C - 85 °C
Contact surface on mating side: gold over nickel
Color: black
Flame retardancy: UL 94V-0
Test voltage: 1000 V
Coding possible: No
Color coding: yellow
Design: Free plug connector
Modular: No
Accessories
-
37304-B122-00E MB
Rectangular box 4p IDC Mini Clamp II yellowCHF 7.90Available to order
