LED cable
AWG22 cable with gray sheath, conductor white+brown (roll = 100m)
1 piece = 1 roll of 100m
CHF 74.80 excl. VAT, plus shipping costs
Item no:
CABLE2M-WB-AWG22
Stock level:4 Available immediately
Description

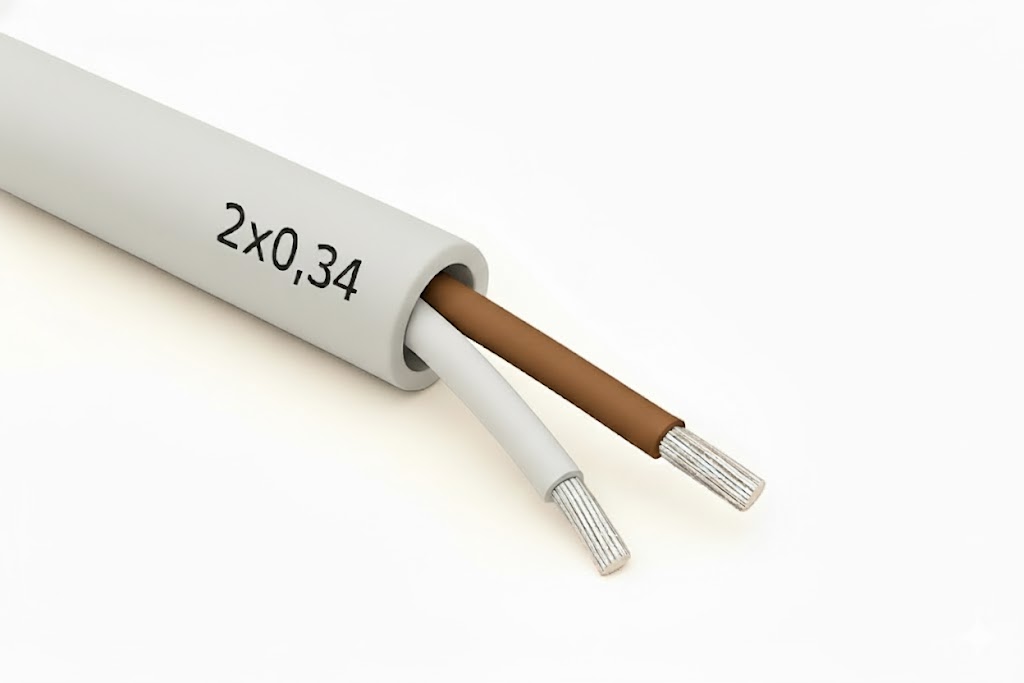

CABLE2M-WB-AWG22 flexible PVC cable, color-coded. Suitable for LED applications such as LED strips.
Application:
- Single Color
PU = 100m
Technical data
- Number of cores 2
- Cross section 0.34mm²
- Color white, brown
- Core insulation based on PVC TI1, color code DIN 47100
- PVC-based outer sheath TM2, silver-grey (RAL 7001)
- Fine stranded wire made of bare copper wires according to IEC 60228 Cl.5
- Temperature range -30°C...+80°C
- Rated voltage 300V (not for heavy current purposes)
- 1x 100m ring
- Outer diameter 4.3mm
Additional information
| LEDs | ||
|---|---|---|
|
||
Accessories
-
221-2411
Feed-through connector with lever; for all conductor types; max. 4 mm²CHF 0.49602 Available immediately -
221-412
WAGO COMPACT connection terminal block, 2 conductorsCHF 0.37984 Available immediately -
221-413
WAGO COMPACT connection terminal block, 3 conductorsCHF 0.49240 Available immediately -
221-415
WAGO COMPACT connection terminal block, 5 conductorsCHF 0.78254 Available immediately -
LJB-2TM20
Waterproof junction box IP68, 2-way, M20CHF 7.40613 Available immediately
Similar products
-
CABLE2M-RB-2X0.35-HF
AWG22 cable with black sheath, conductor red+black (roll = 200m), halogen-freeCHF 113.407 Available immediately
