COB accessories

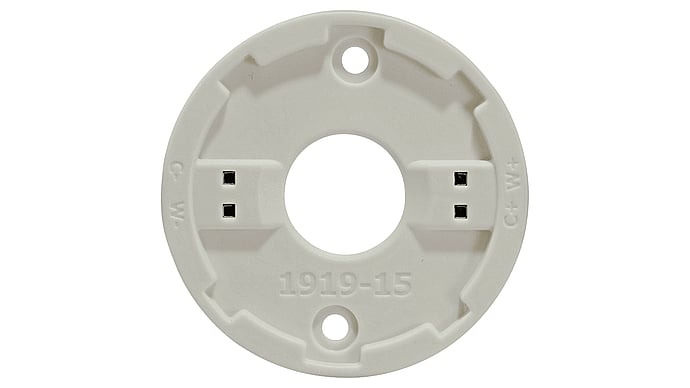

Zhaga bracket for Samsung COB LC020T TW series
CHF 4.35 excl. VAT, plus shipping costs
Item no:
ZHAGA-LES13-TW-HOLDER
Stock level:98 Available immediately
Description
- COB connection element Ø48mm
- Easy handling thanks to pre-centering of the COB
- Screw fastening: for M3 screws with lock washer
- Screw holes are on Ø35mm
- LES: max. 15mm
- PCB: 19x19mm
- Zhaga Standard
- Connections: +W,-W /+C,-C
- Suitable for: Samsung LC020T
- Connection: AWG20 wire
- IFmax: 3.6A, UFmax: 72VDC
- First-class contact design guarantees high reliability
Additional information
| LEDs | ||
|---|---|---|
|
||
Accessories
-
SPHWHAHDNF25Y3WPT1
SAMSUNG COB, T SERIES, LC020T, GEN1, 2700-6500K, CRI >80, 3SDCMCHF 13.8072 Available immediately
