Keyboards

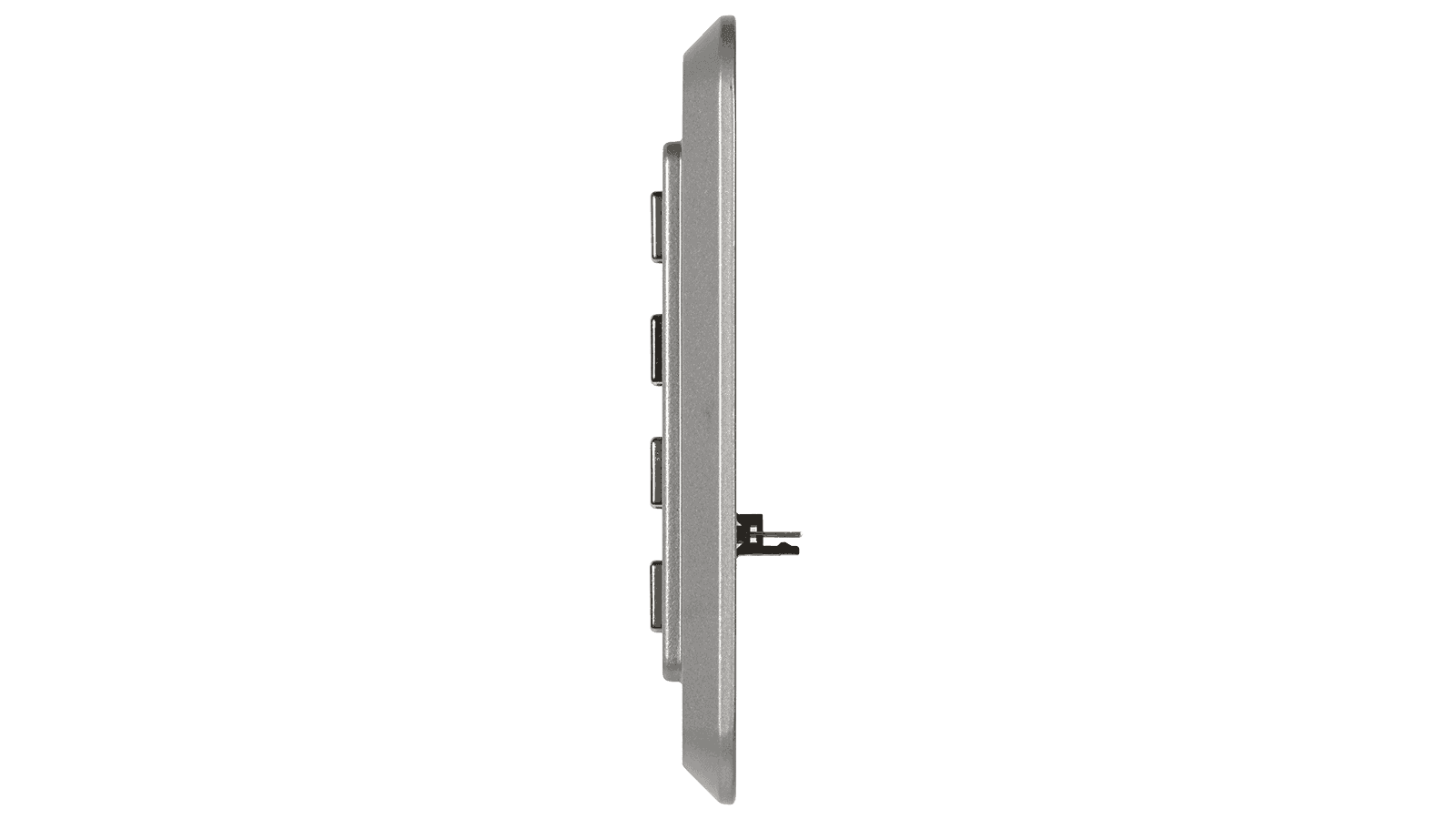

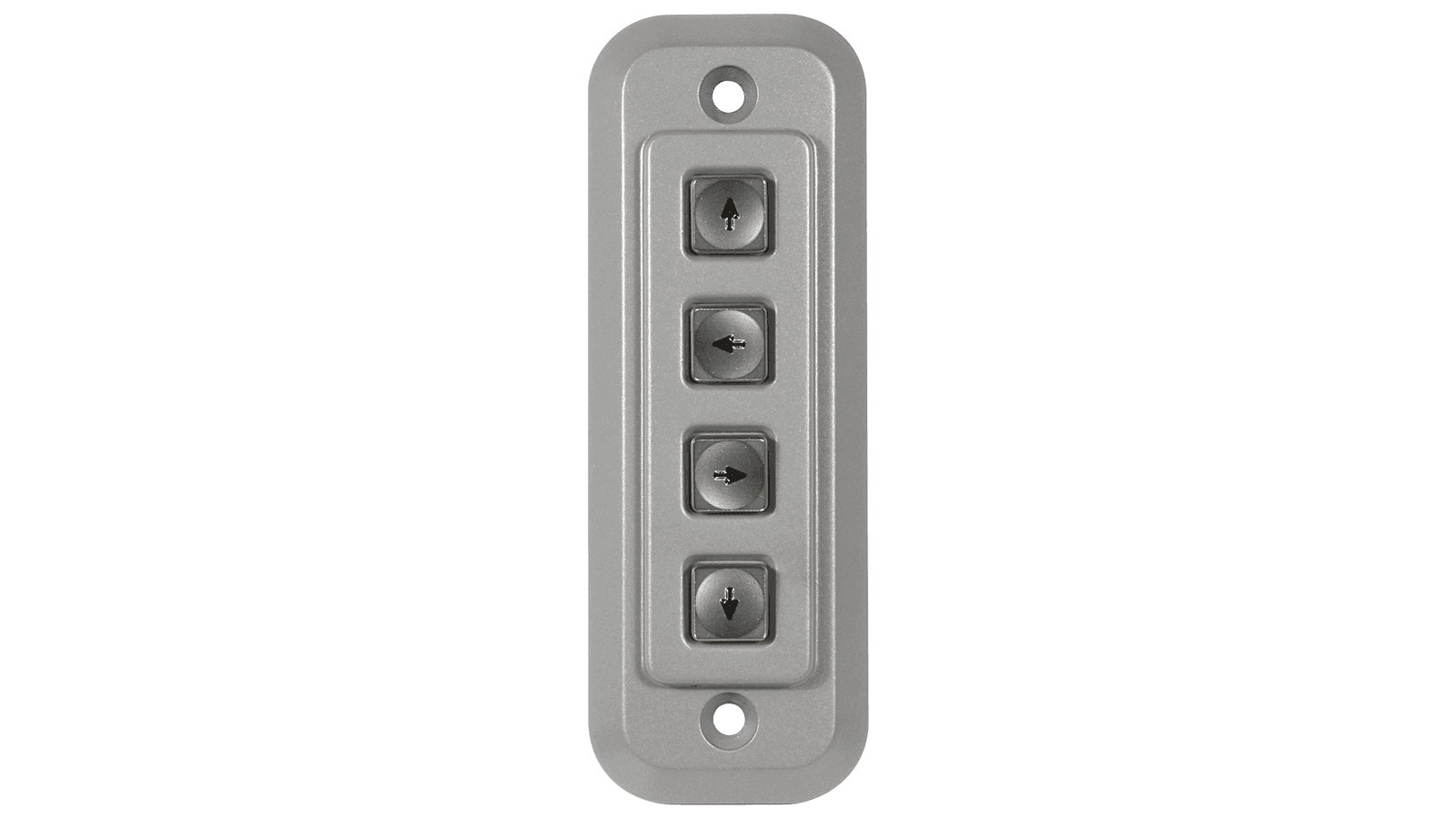

Keyboard with metal housing, 4 keys, navigation keys
Vandal-proof keypad from Storm Interface with a 12-key keypad in telephone layout.
Item no:
1K0411
In stock: Available to order
Please register for price display.
Description
- 4 metal buttons (arrows)
- Robust metal housing
- Engraved and therefore indelible characters
- Protected against vandalism (20J BS EN 60068-2-75: 1997)
- Water and dust-protected in accordance with IP65 (with appropriate installation)
- Service life: 4 million switching cycles
- Operating temperature range: -40 ... +100 °C

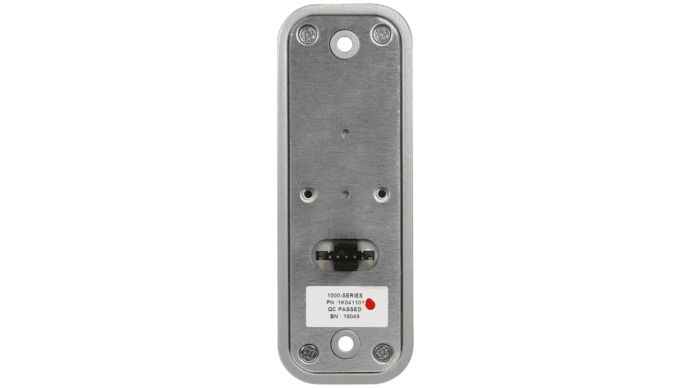

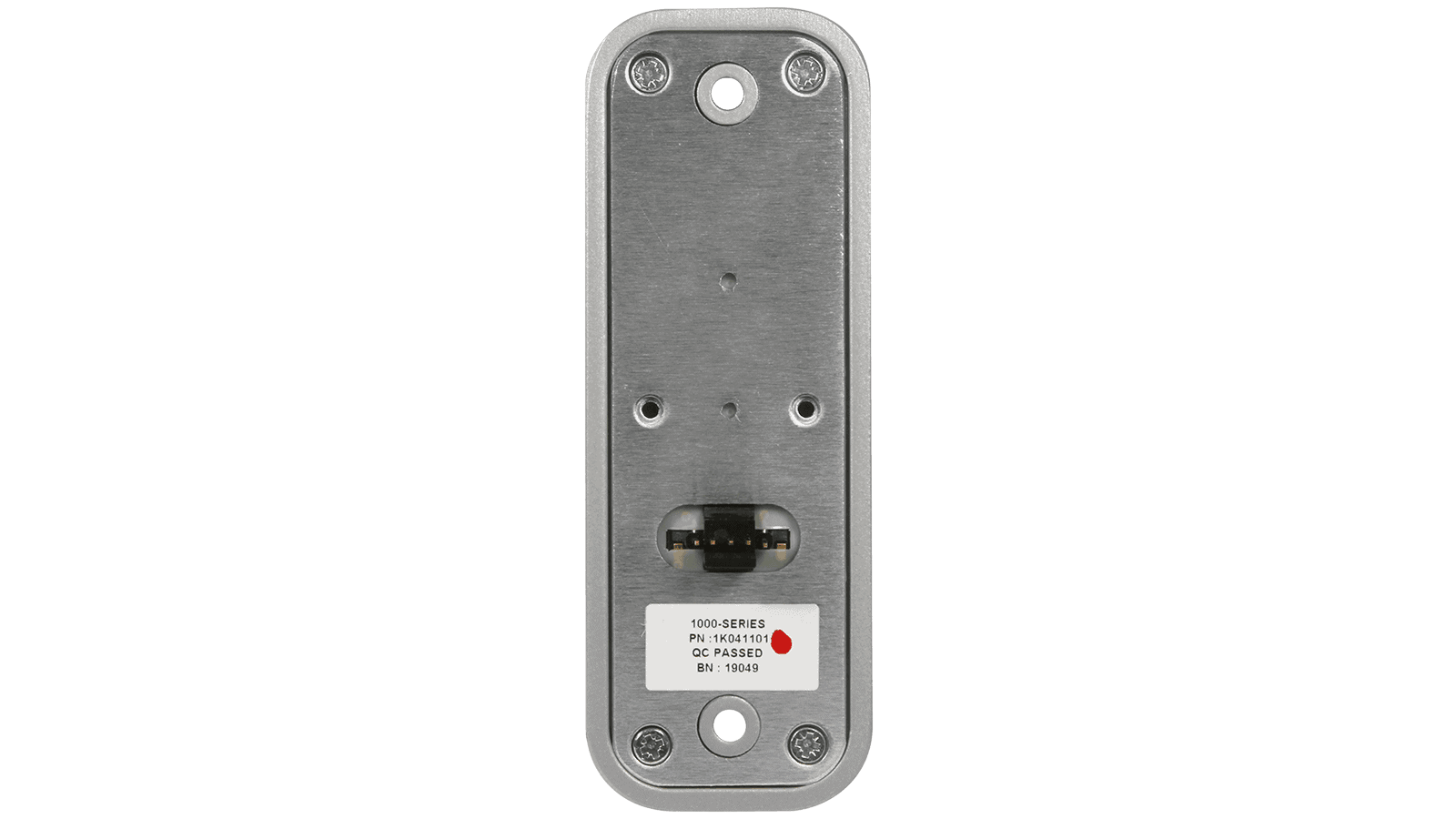

- Connection: Matrix, 5-pin male connector with locking, 2.54 pitch
- Dimensions (L x W x H): 118.5 x 42.5 x 11.1 mm (height without buttons)
- Manufacturer: Storm Interface
Additional information
| LEDs | ||
|---|---|---|
|
||
Data sheets
| 1K0411 | PDF(356.21 KB) |
|---|
Downloads
| 3D data 1K0411 | Zip file (156.47 KB) |
|---|
