Various plug connectors

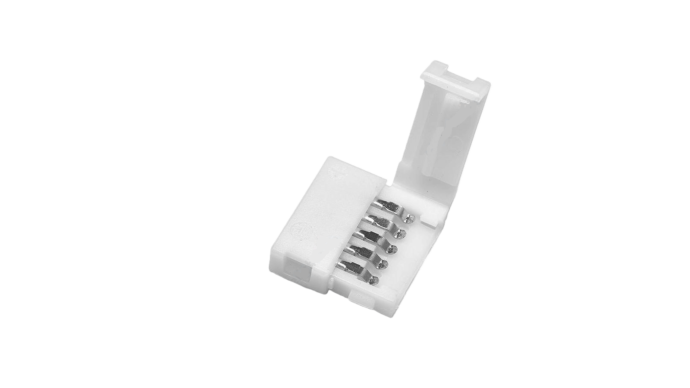

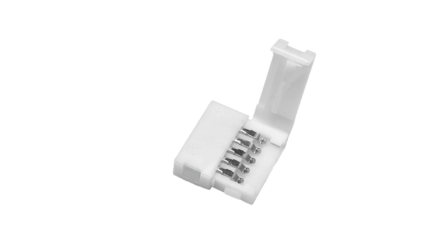

LED strip connector, 12mm, 5-pin
Sales price (VP) per 1 piece
CHF 3.00 excl. VAT, plus shipping costs
Item no:
PCB-LSC0031
In stock: Available to order
Packaging ex works:
1 piece
Estimated delivery time:
4 weeks
Description
Clamp connector for 2 pieces of 12mm (single color) LED strips, etc.
- Quick and easy installation without soldering
Technical data
Application: for connecting 2 pieces of 12mm wide multicolored LED strips
Number of poles: 5
Dimensions: 16 x 16 x 5 mm
Nominal voltage: 0-36V
Nominal current: 5A
Protection class: IP20
Temperature range: -20℃...60℃
Weight: 1g
Material: Flame retardant plastic, copper
Certificate: RoHS
Subject to errors and technical changes
