PCB Printed circuit board connector ED130F-xxP
CHF 50.90 - CHF 203.50
Description

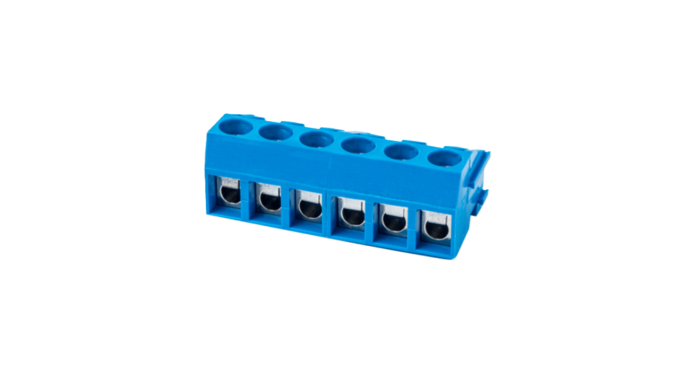

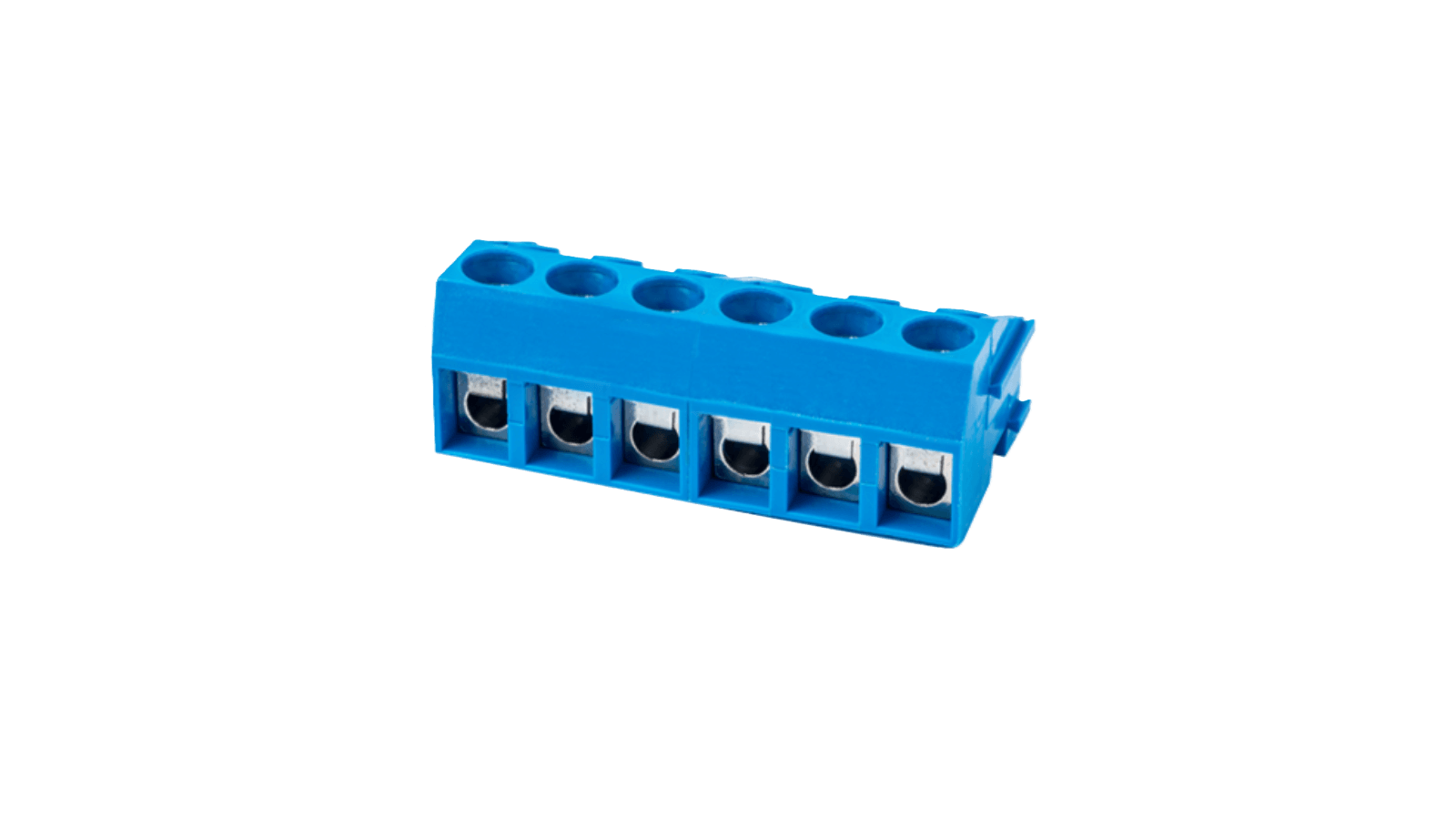

Printed circuit board (PCB) connector ED130F-xxP from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connector plug with wire protection 2-12 poles
- Grid 5.0 mm
- Color blue
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB Connector - Plug, Wire protector type, Pitch: 5.0 mm, 300 V, 7 A
Category: PCBConnector - Plug (Plug)
Pitch: 5.00 mm
Color: blue
Connection type: Wire protector type
Interlock type: without

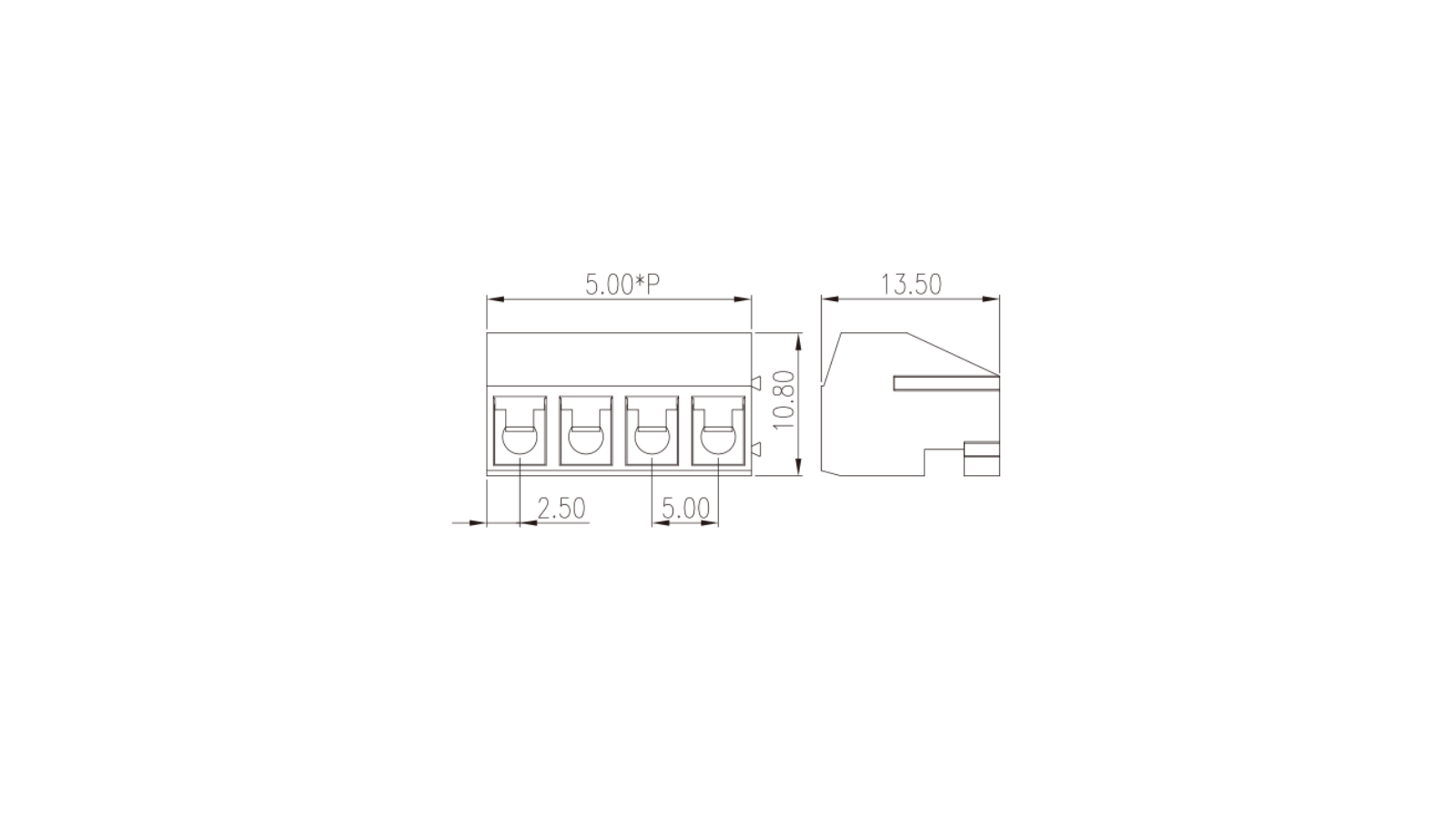

Length (mm): 5.00*P
Width (mm): 13.5
Height (mm): 10.8
Number of poles: 02P~12 P
Level: Single level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| ED130F-xxP | PDF(268.25 KB) |
|---|
