PCB Printed circuit board connector EC350VM-xxP
CHF 90.25 - CHF 412.30
Description

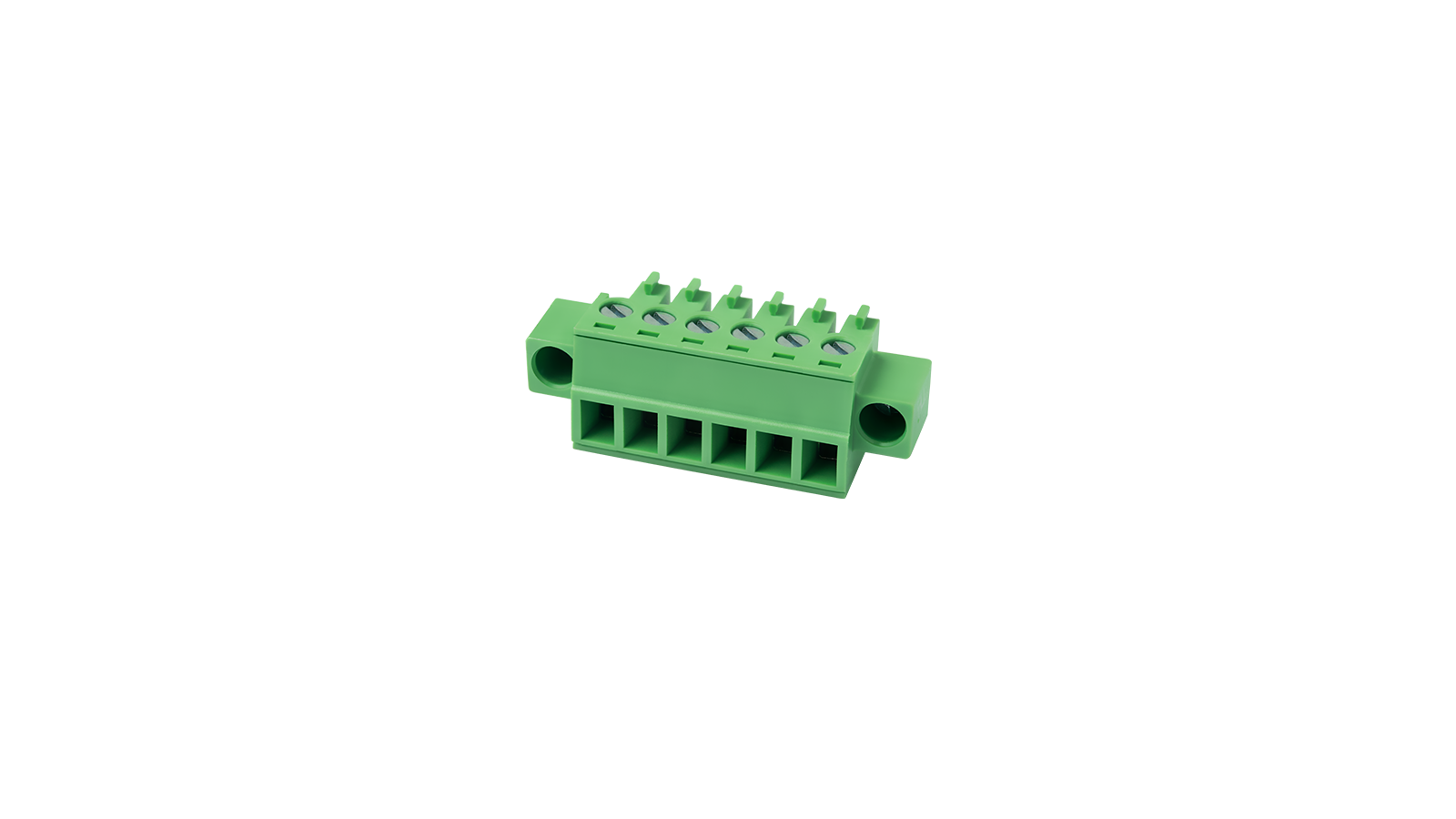

Printed circuit board (PCB) connector EC350VM-xxP from DINKLE
The PCB connection blocks from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connector 2-24 poles
- Grid 3.50mm
- Color green
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB Connector Plug - screw connection, wave soldering, 3.50 mm pitch, M2, 300V, 8A
Category: PCBconnector plug (PCB Connector - Plug)
Pitch: 3.50 mm
Color: green
Connection type: Screw connection
Locking type: with threaded flange
Soldering method: Wave soldering

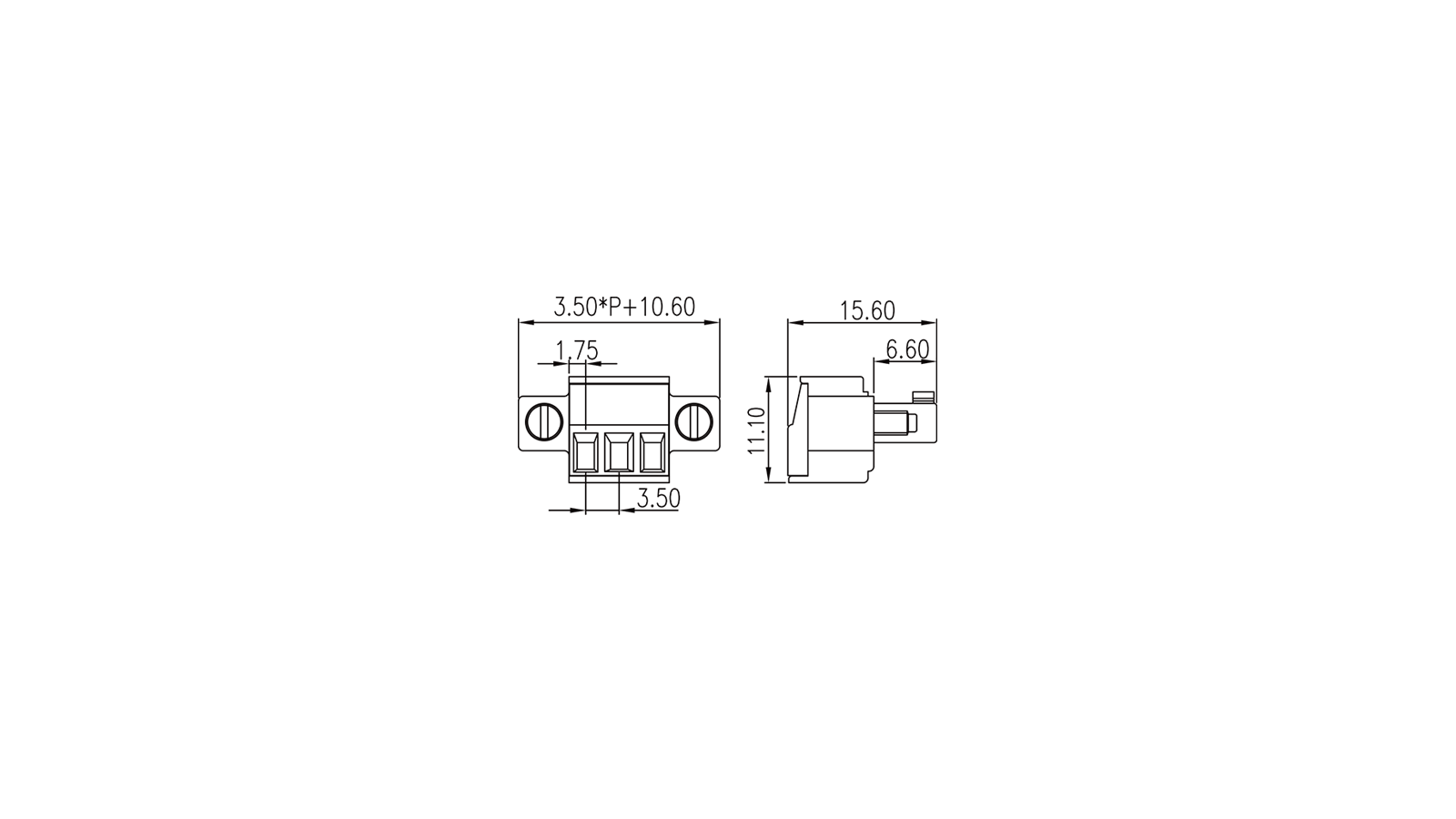

Length (mm): 3.50*P+10.60
Width (mm): 15.6
Height (mm): 11.1
Number of poles: 02P~24 P
Level: Single level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| EC350VM-xxP | PDF(269.76 KB) |
|---|
