PCB PCB connection socket ECH762RM-xxP
CHF 138.25 excl. VAT, plus shipping costs
Description

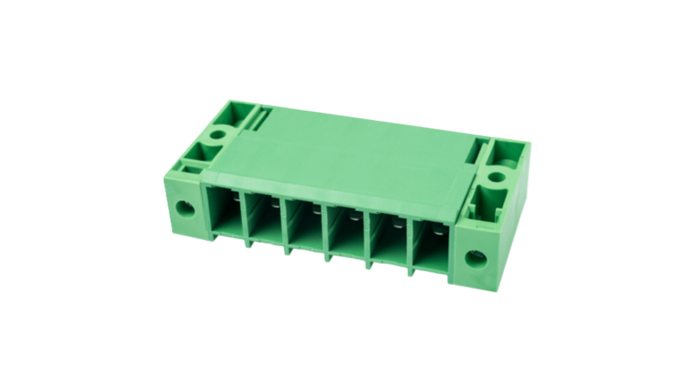

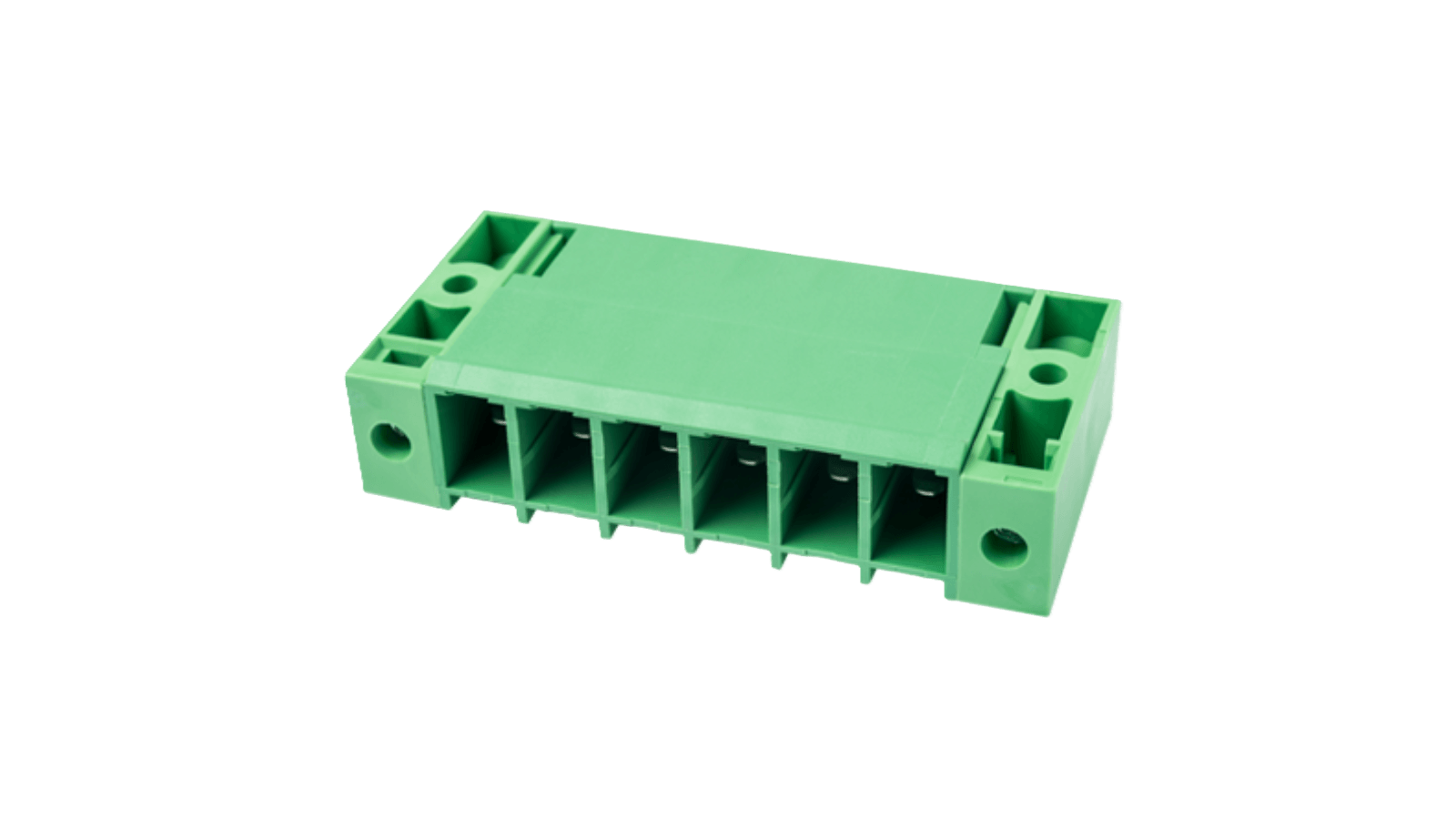

Printed circuit board (PCB) connector socket ECH762RM-xxP from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connection socket 2-12 poles
- Grid 7.62mm
- Green
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Description: PCB Connector - Socket, Wave soldering, 7.62 mm pitch, 300 V, 30 A
Category: PCBConnector - Socket
Pitch: 7.62mm
Color: green
Locking type: Screw flange
Soldering method: Wave soldering

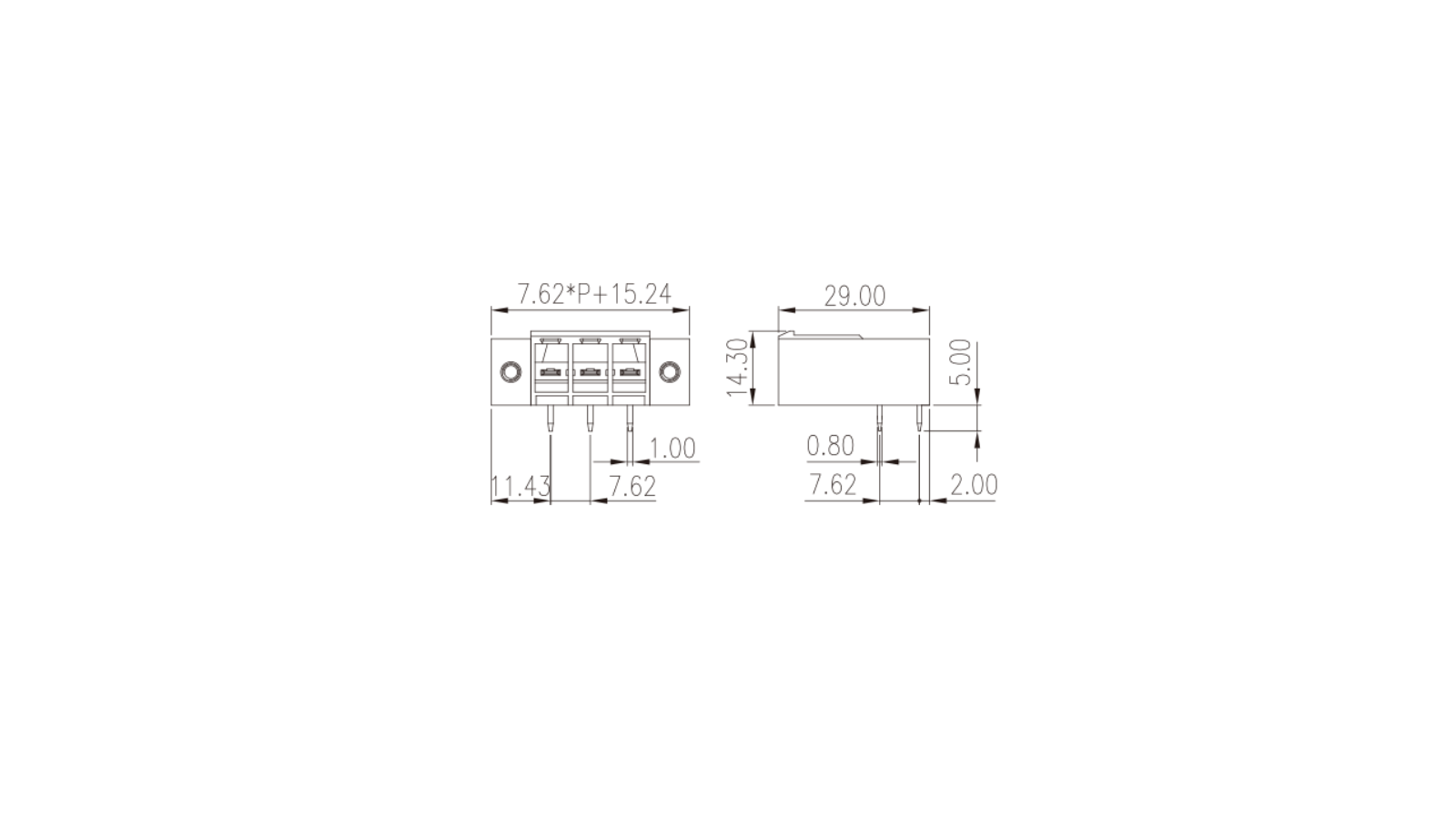

Length (mm): 7.62*(P-1)+22.86
Width (mm): 29
Height (mm): 14.3
Pin dimensions (thickness x width): 0.8×1.0

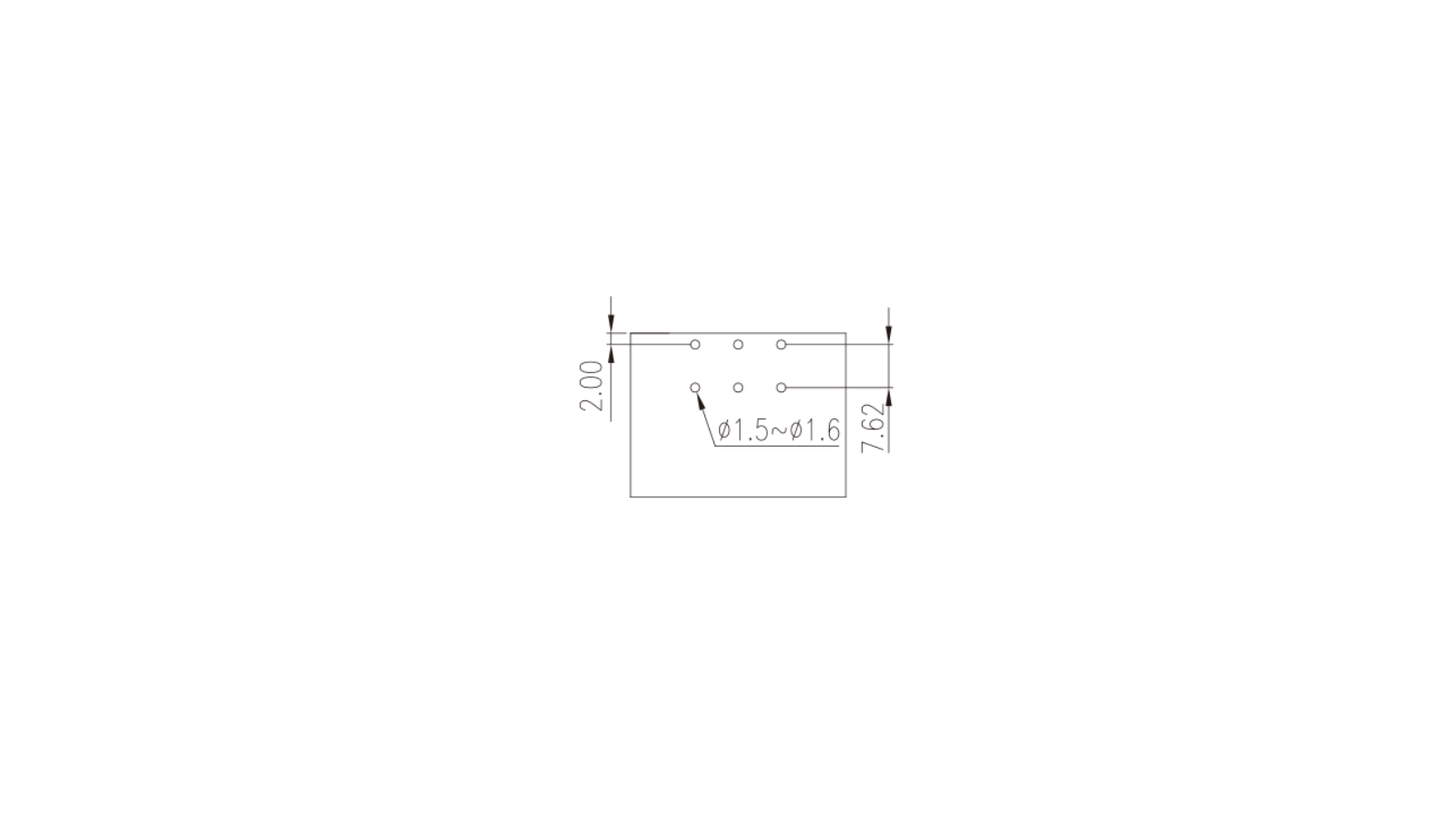

PCB hole diameter (mm): 1.5~1.6
Number of poles: 02P~12 P
Level: Single level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| ECH762RM-xxP | PDF(292.77 KB) |
|---|
Accessories
-

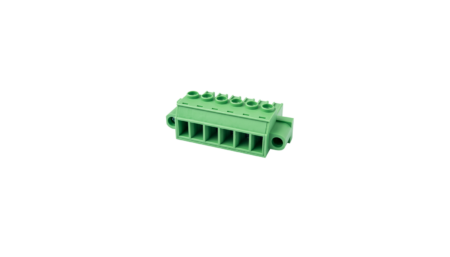

PCB Printed circuit board connector EC762HVNM-xxP
