PCB PCB connection socket ECH381V-xxPL
CHF 37.95 - CHF 282.70
Description

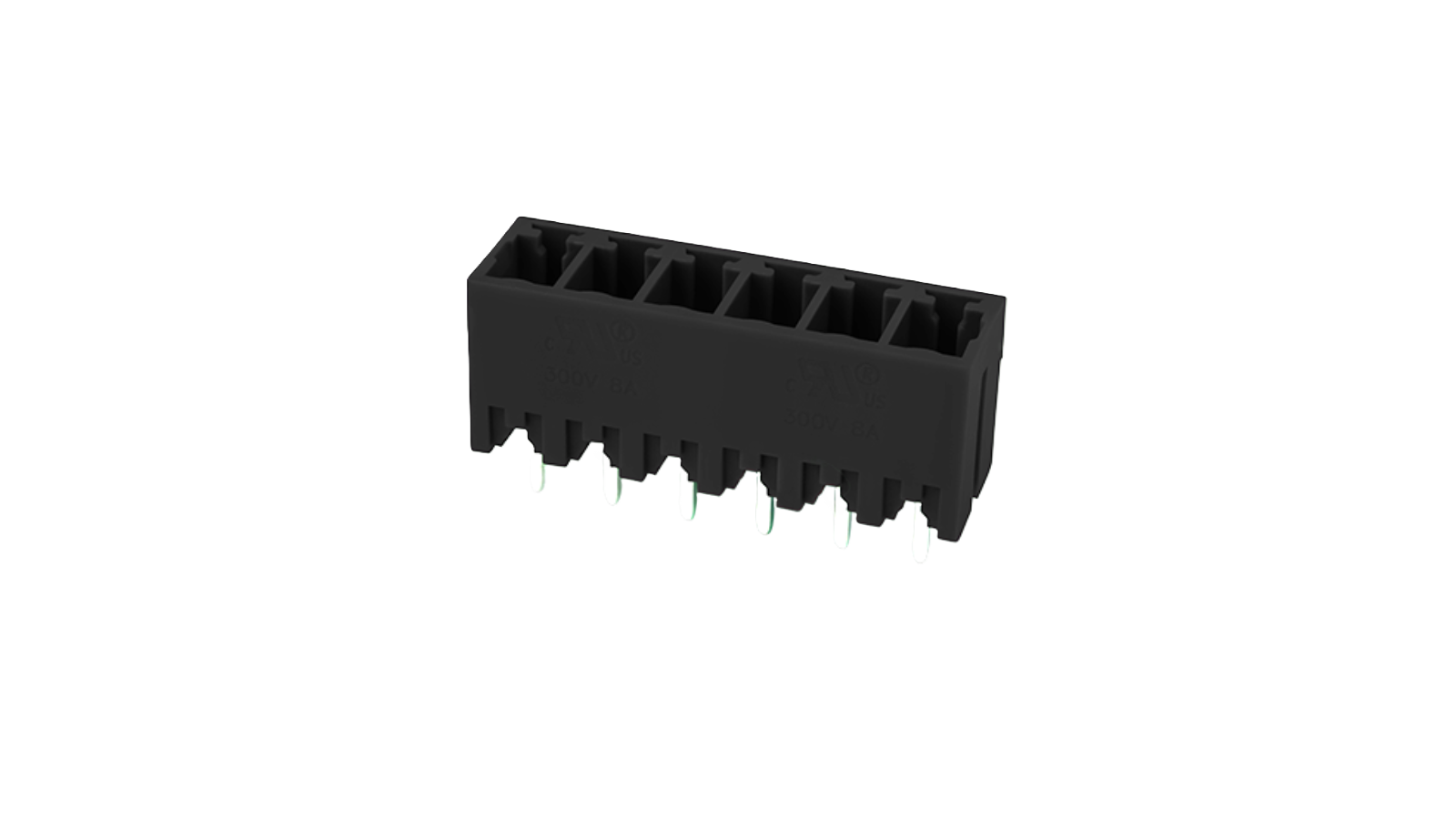

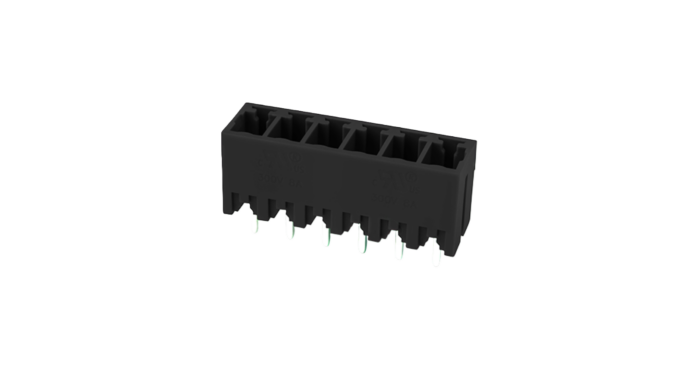

Printed circuit board (PCB) connection socket ECH381V-xxPL from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connection socket 2-24 poles
- Grid 3.81mm
- Black
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB connector - socket, reflow soldering, 3.81 mm pitch, 300 V, 8 A
Category: PCBConnector - Socket
Pitch: 3.81mm
Color: black
Interlock type: without
Soldering method: Reflow Soldering (Temperature condition according to standard IPC/JEDEC J-STD-020E)

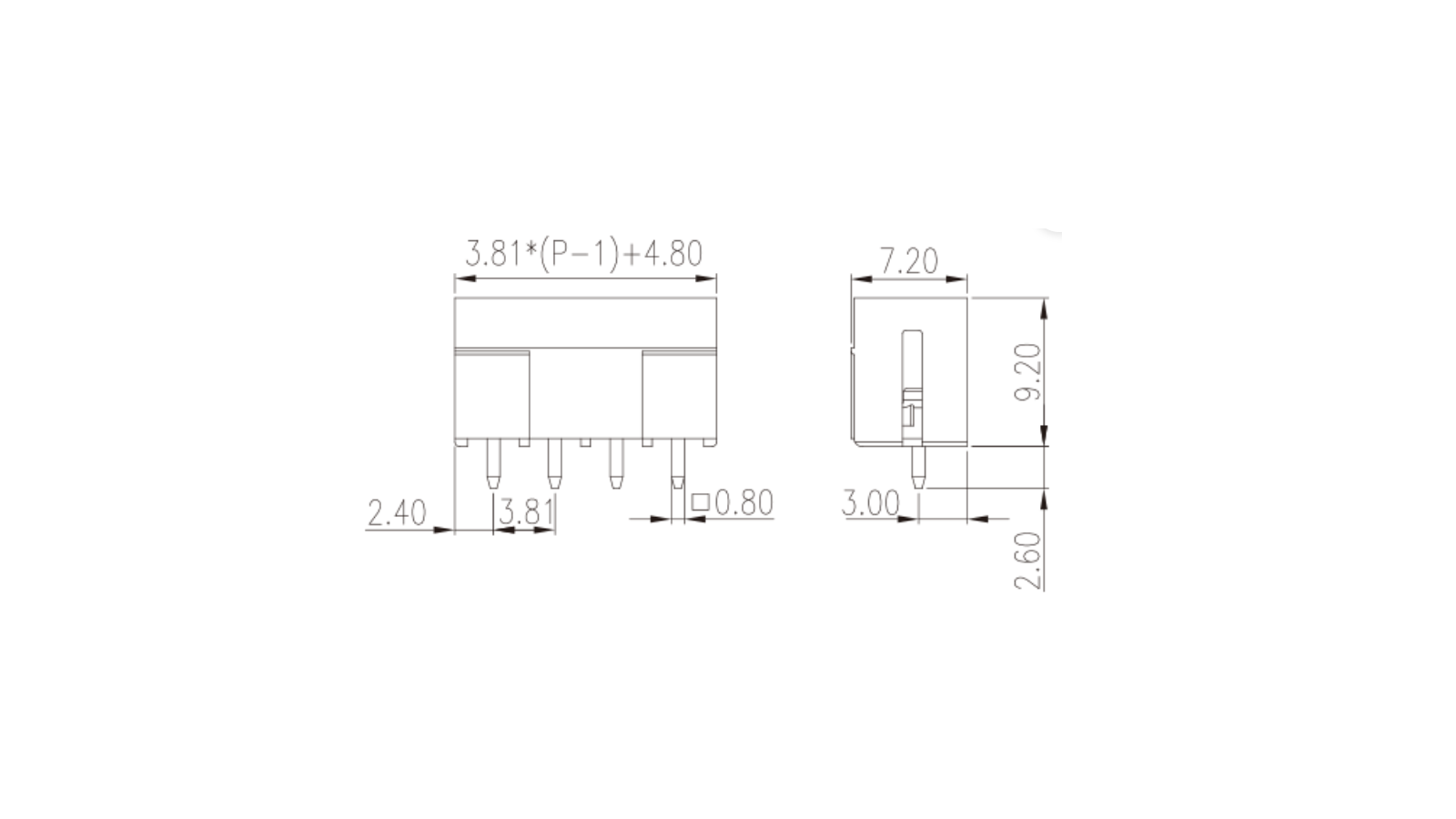

Length (mm): 3.81*(P-1)+4.8
Width (mm): 7.2
Height (mm): 9.2
Pin dimensions (thickness x width): 0.8 x 0.8

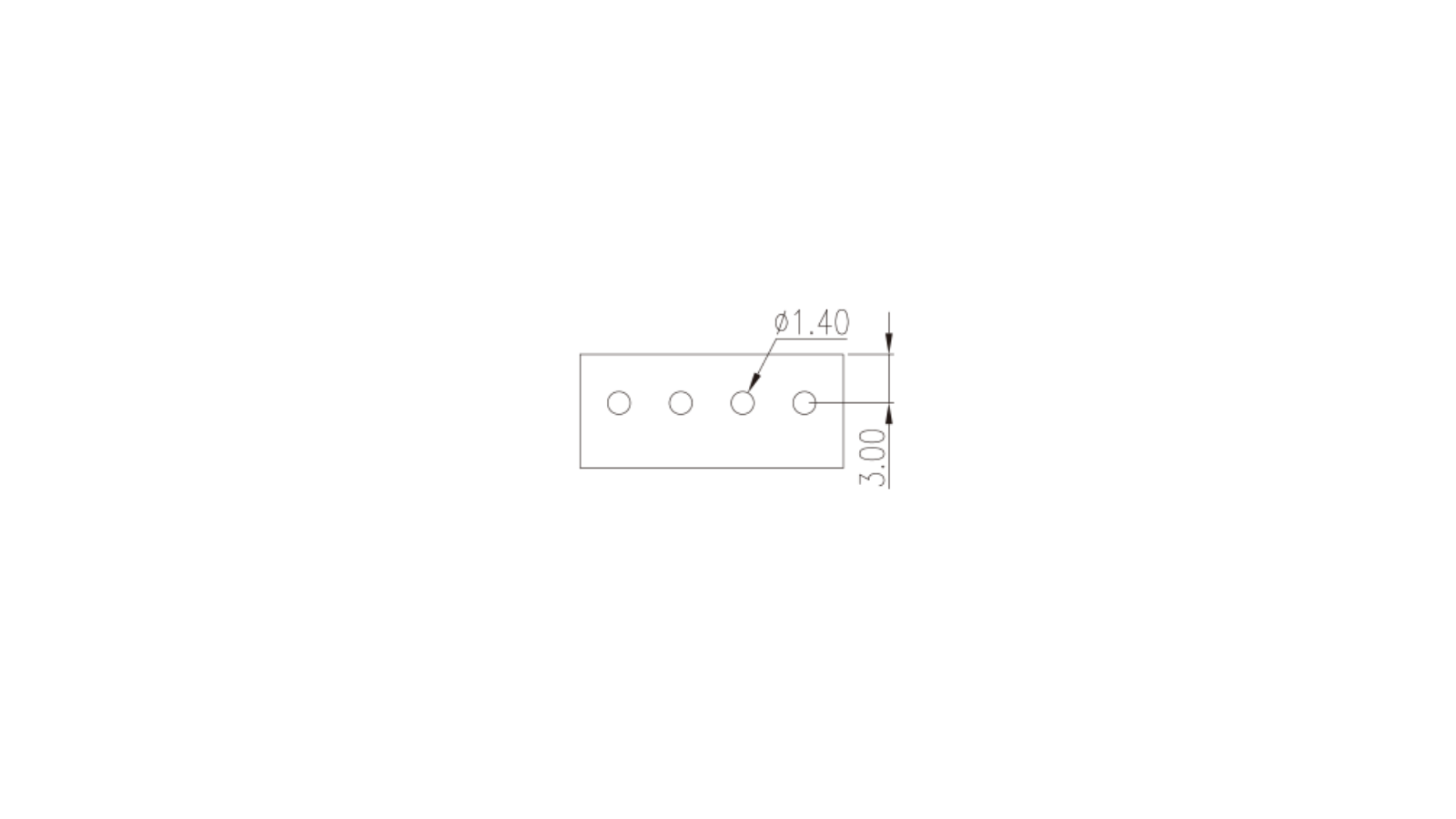

PCB hole diameter (mm): 1.4
Number of poles: 02P~24 P
Level: Single level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| ECH381V-xxPL | PDF(221.49 KB) |
|---|
