PCB Printed circuit board connection socket 0159-11xxL
CHF 262.10 - CHF 641.80
Description

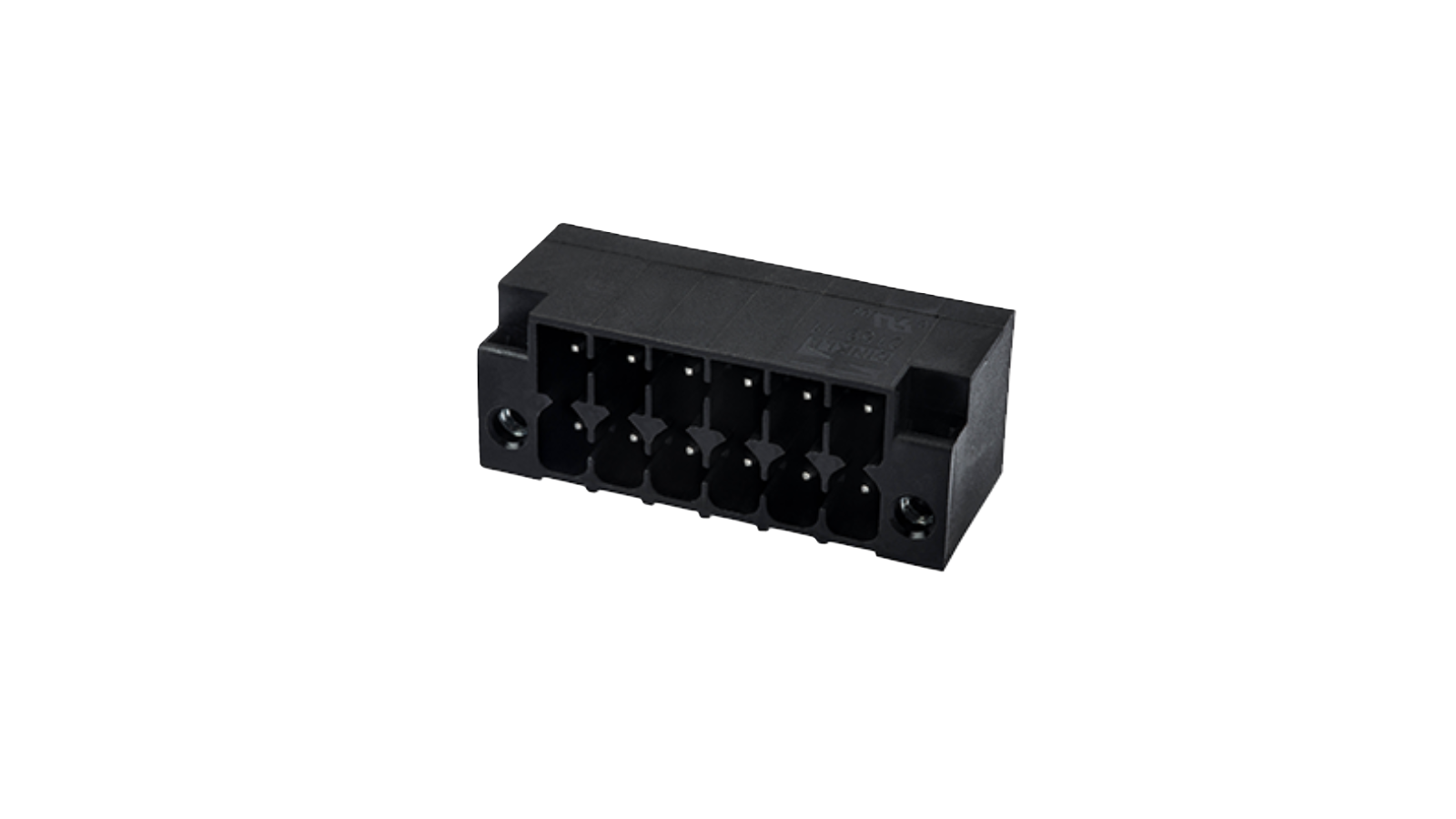

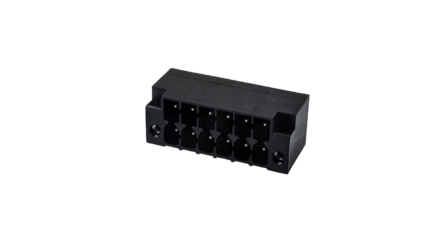

Printed circuit board (PCB) connector socket 0159-11xxL from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connection socket 4~40 poles
- Grid 3.50 mm
- Black
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB Connector-Socket, Reflow soldering, Pitch: 3.50mm, 150 V, 8 A
Category: PCBConnector - Socket
Pitch: 3.50 mm
Color: black
Locking type: with screw flange
Soldering method: Reflow Soldering (Temperature condition according to standard IPC/JEDEC J-STD-020E)

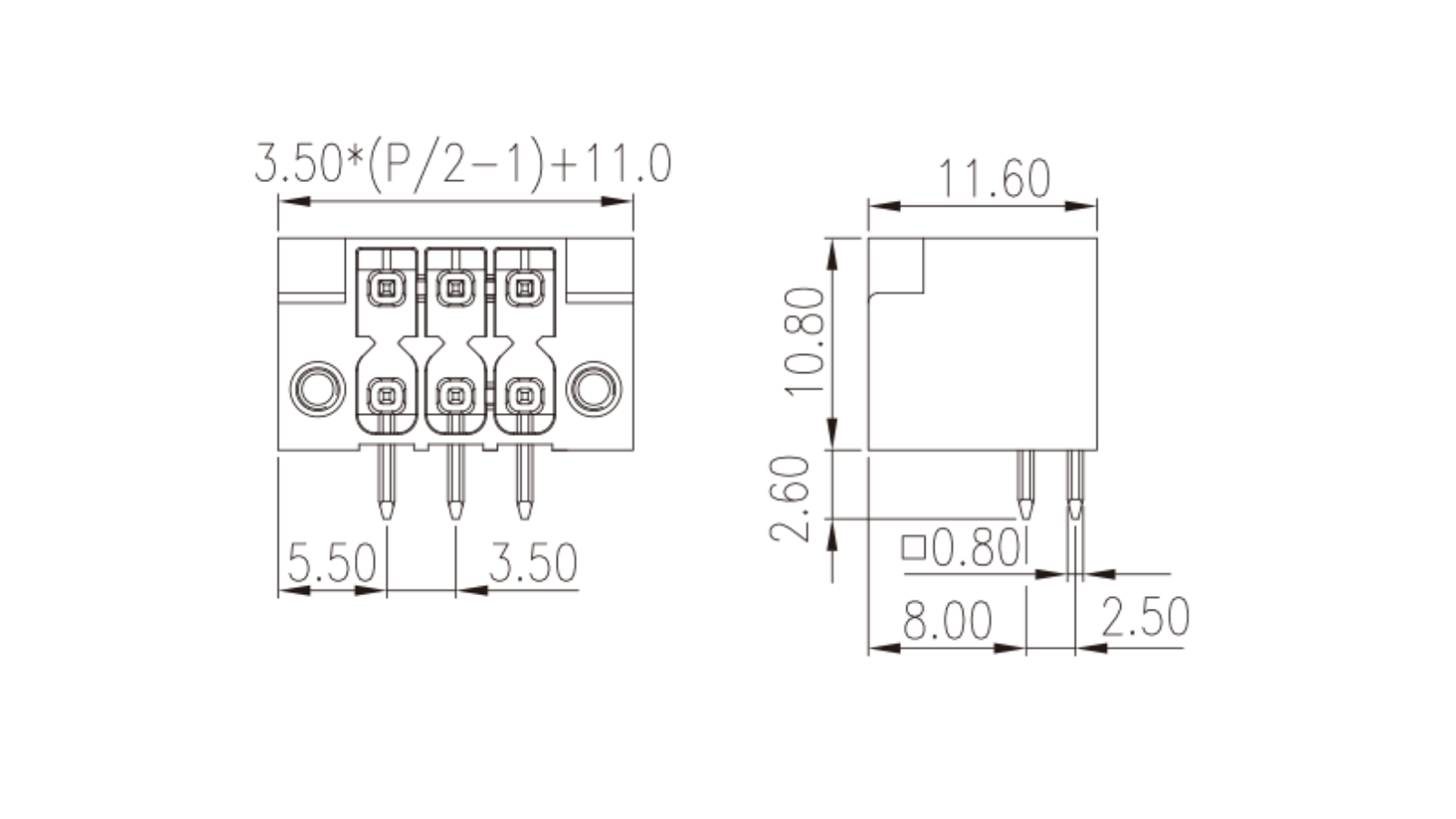

Length (mm): 3.50*(P/2-1)+11.0
Width (mm): 11.6
Height (mm): 10.8
Pin dimensions (thickness x width): 0.8 x 0.8

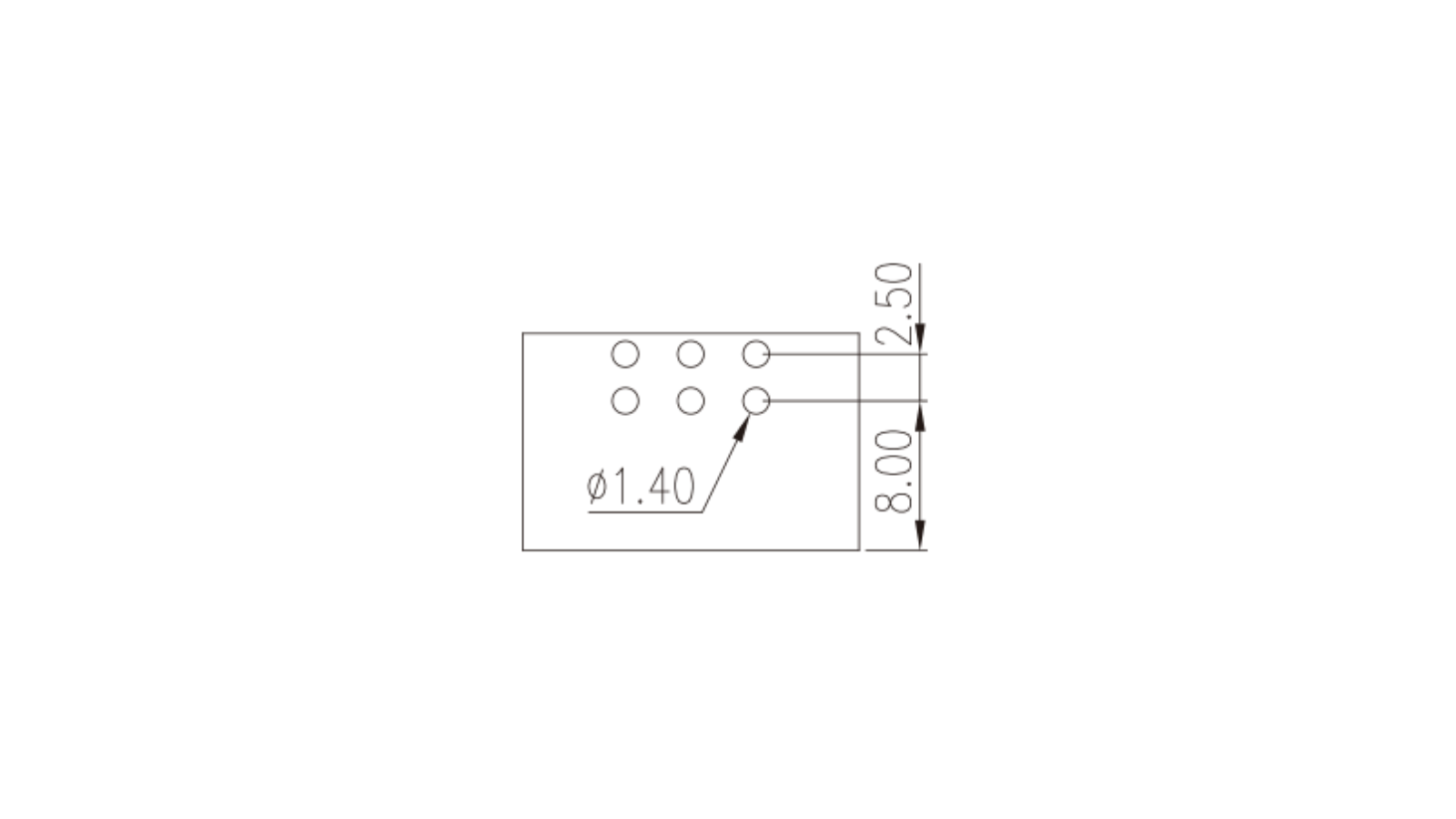

PCB hole diameter (mm): 1.4
Number of poles: 04P~40 P
Level: Double level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| 0159-11xxL | PDF(280.63 KB) |
|---|
