PCB Circuit board connection block 142V-xxP
CHF 196.30 - CHF 497.80
Description

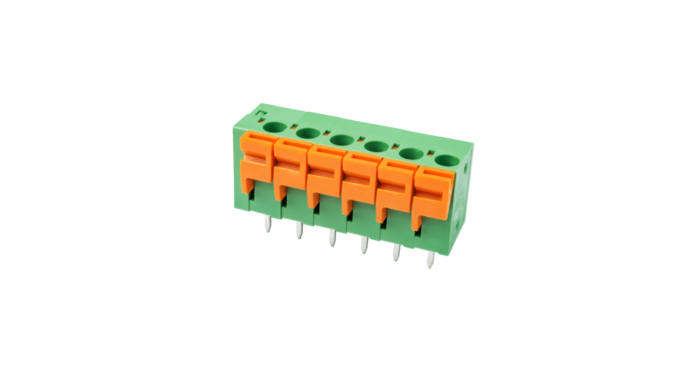

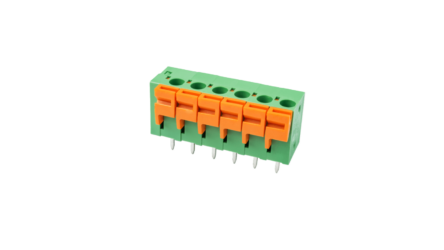

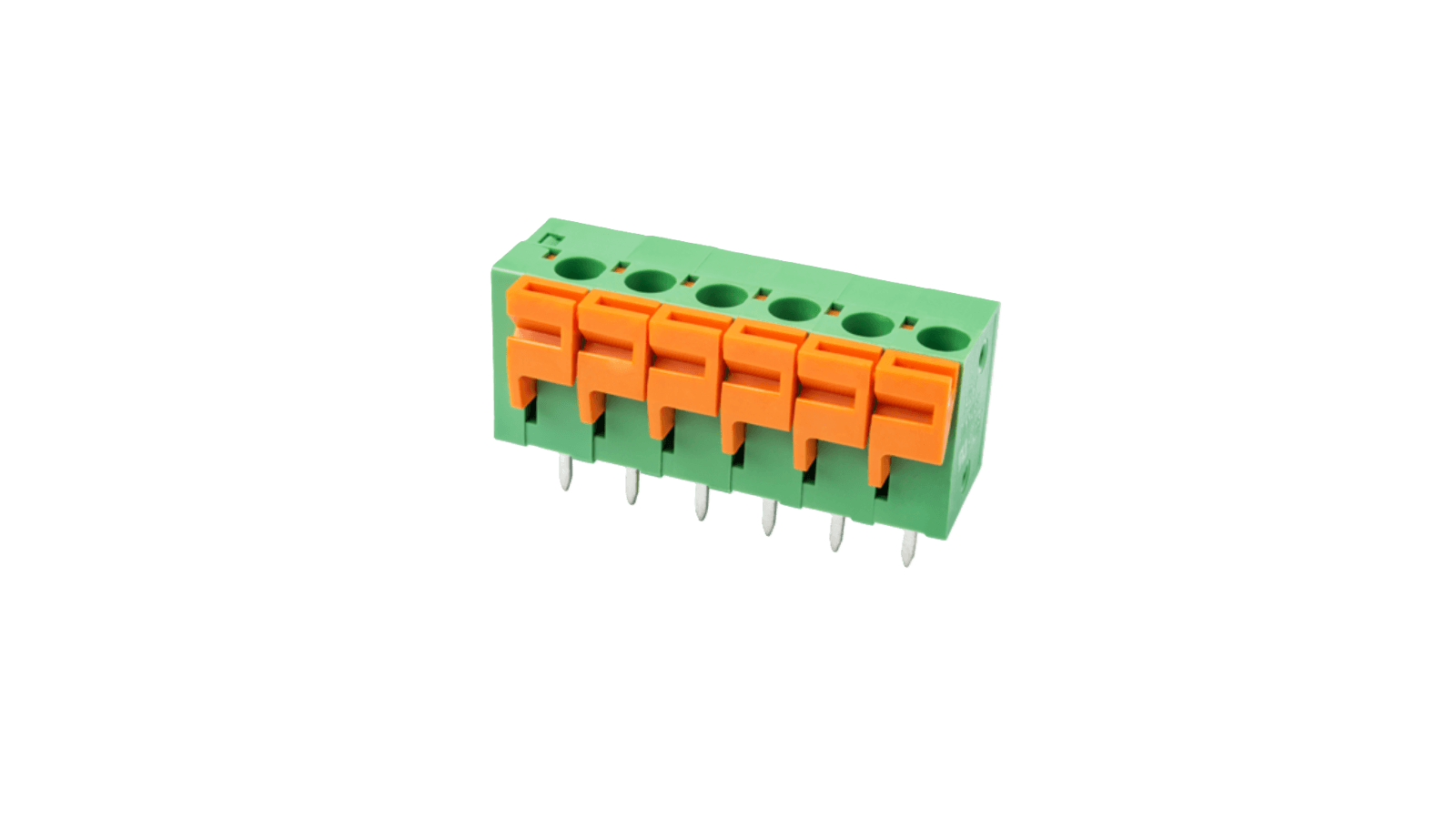

Printed circuit board (PCB) connection block 142V-xxP from DINKLE
The PCB connection blocks from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- Circuit board connector 1~24 poles
- Grid 5.08mm
- Color green
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Description: PCB Terminal Block - Push in design, Wave soldering, 5.08 mm pitch, 300V, 10A
Category: PCBTerminal Block
Pitch: 5.08 mm
Color: green
Connection type: Push in design
Interlock type: without
Soldering method: Wave soldering

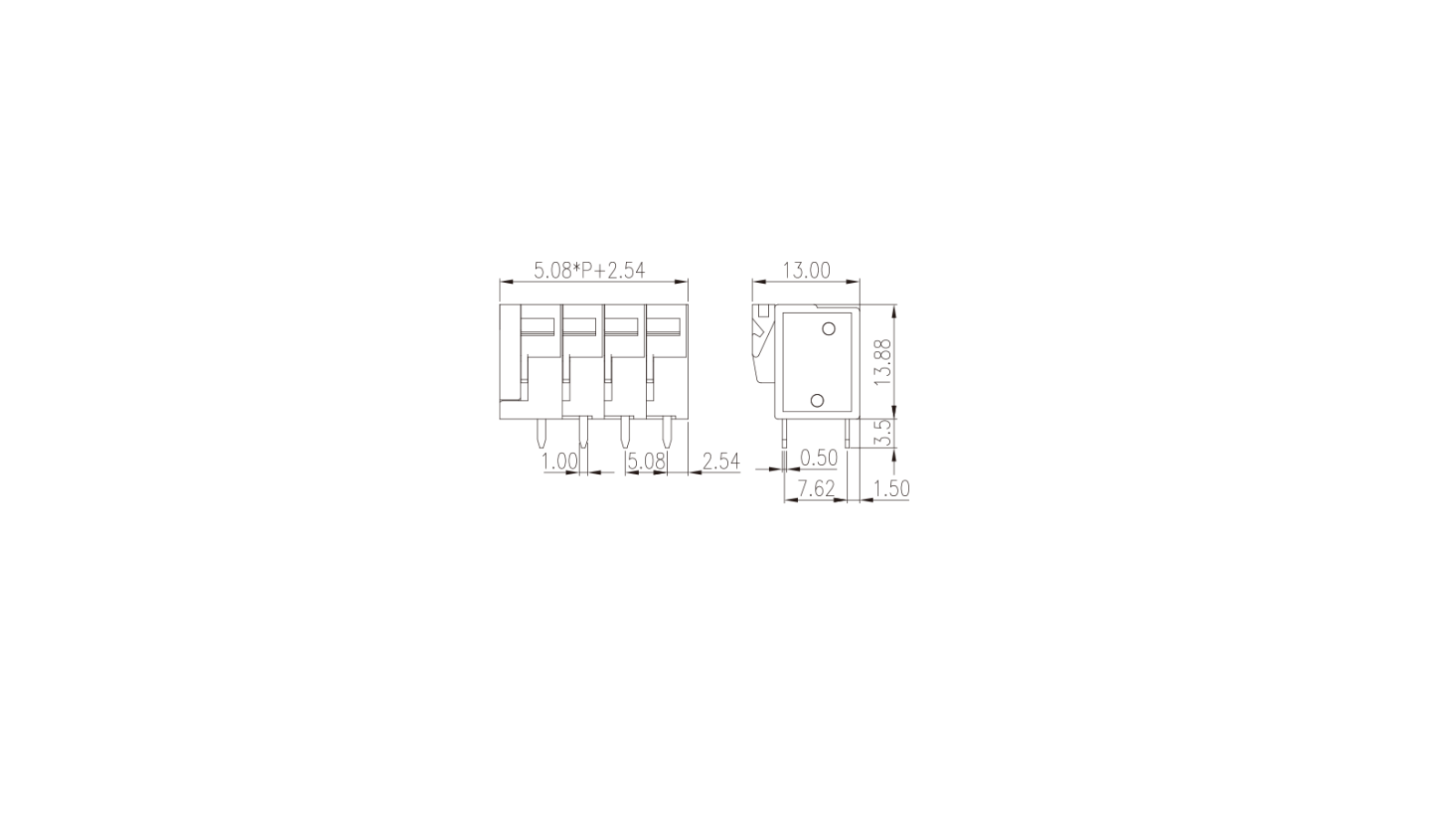

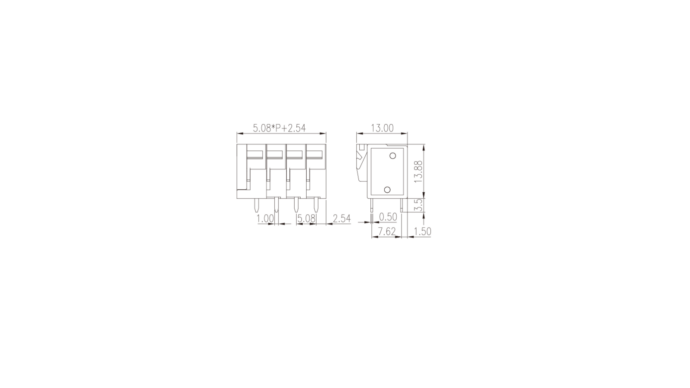

Length (mm): 5.08*(P-1)+7.62
Width (mm): 13.0
Height (mm): 13.88
Pin dimensions (thickness x width): 0.5 x 1.0

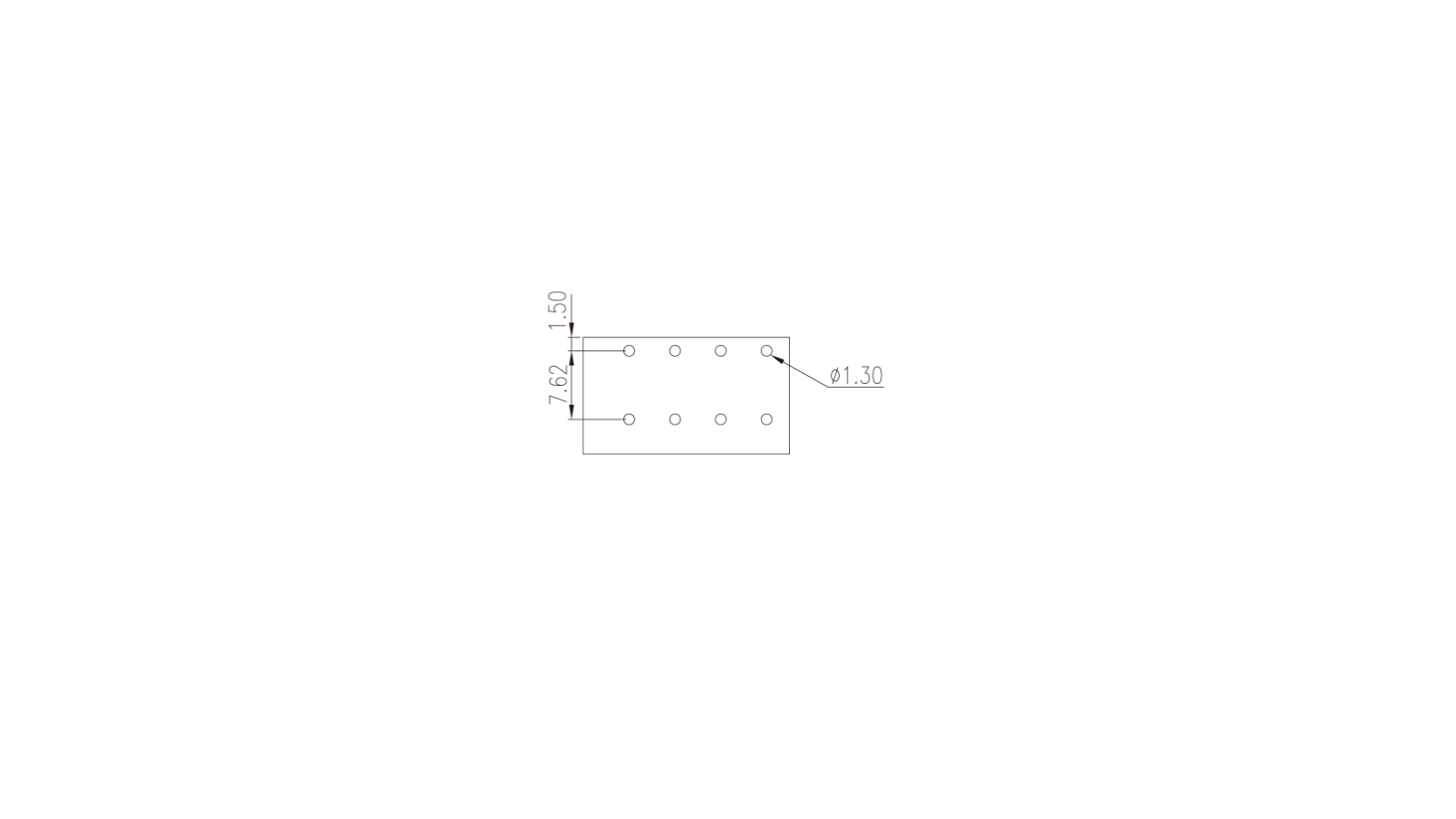

PCB hole diameter (mm): 1.3
Number of poles: 01P~24 P
Level: Single level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| 142V-xxP | PDF(307.49 KB) |
|---|
