PCB Circuit board connection block 0188-01xxL
CHF 187.10 excl. VAT, plus shipping costs
Description

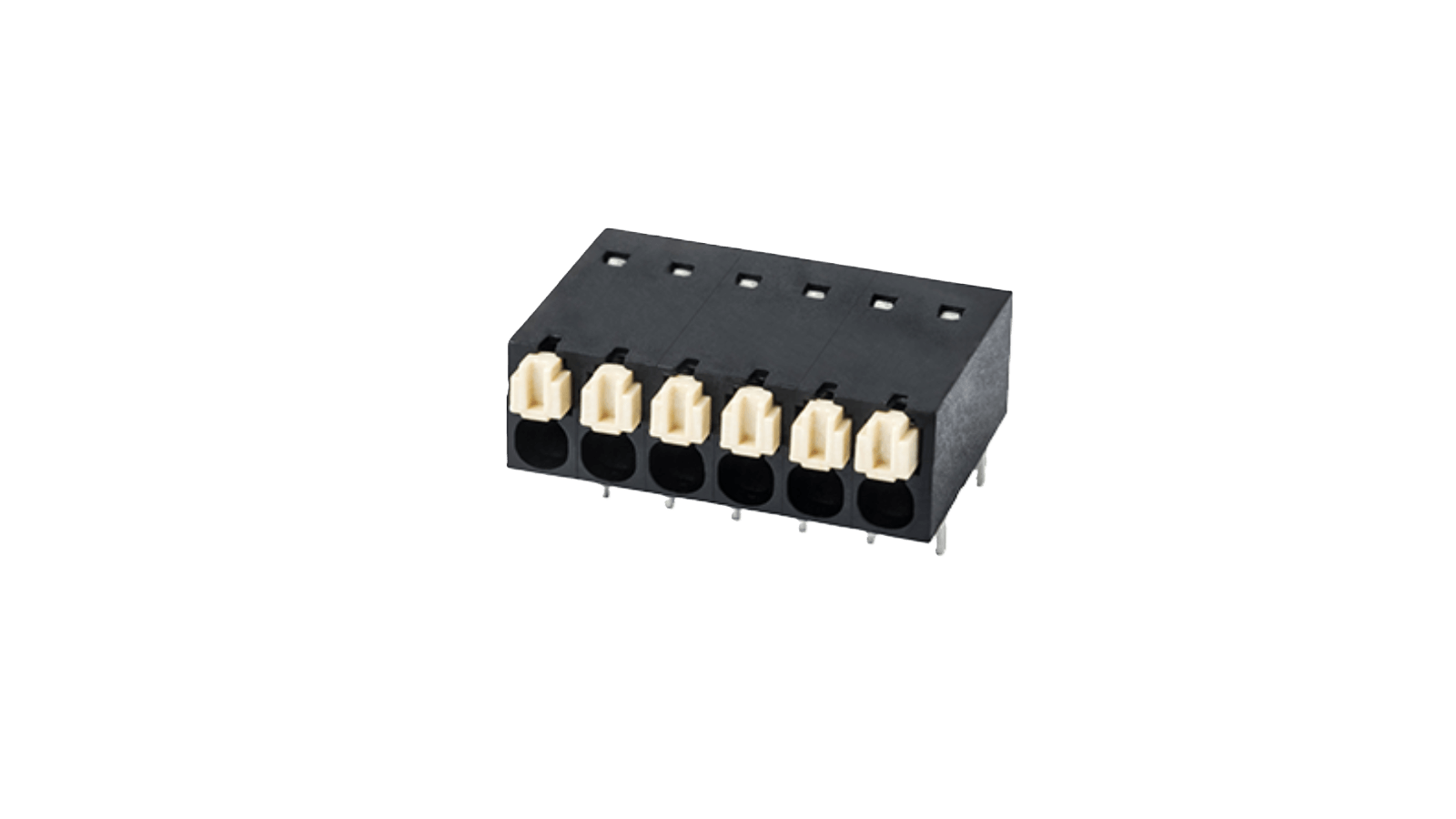

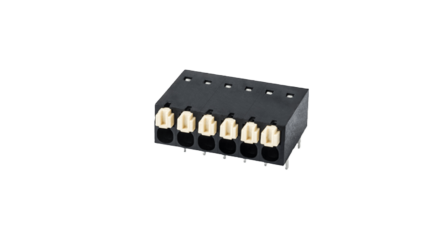

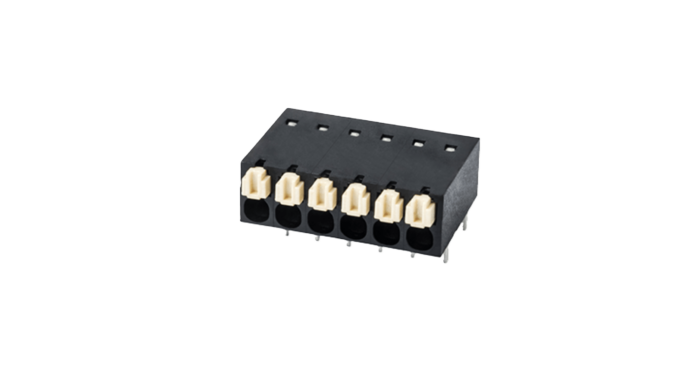

Printed circuit board (PCB) terminal block 0188-01xxL from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connection socket 2~20 poles
- Grid 2.50 mm
- Black
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Description: PCB Terminal Blocks, Push-in Design, Pitch: 2.50mm, 150 V, 5 A
Category: PCBTerminal Blocks - Push-in Design, Reflow Soldering
Pitch: 2.50 mm
Color: black
Interlock type: without
Soldering method: Reflow Soldering (Temperature condition according to standard IPC/JEDEC J-STD-020E)

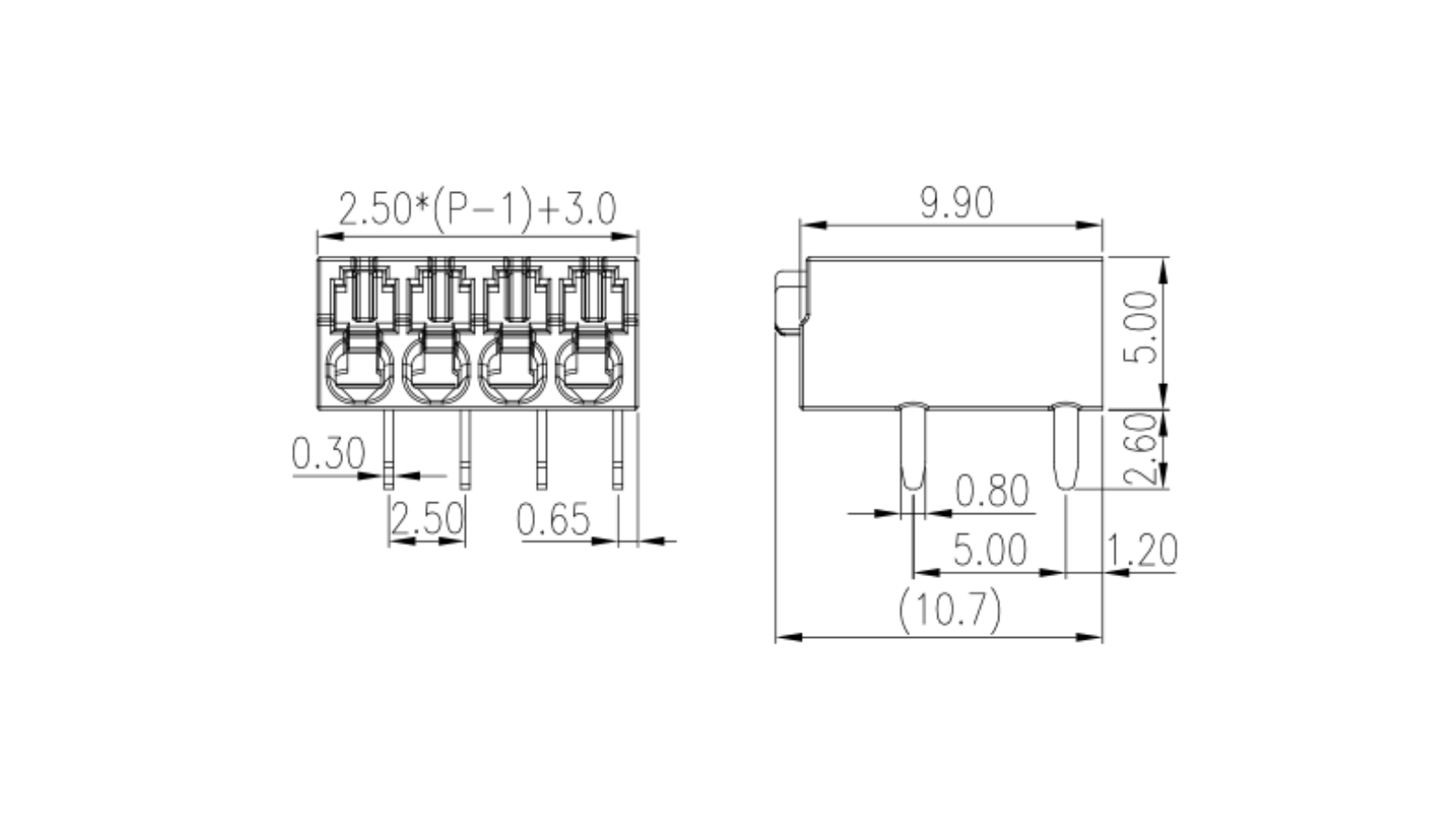

Length (mm): 2.50*(P-1)+3.0
Width (mm): 10.7
Height (mm): 5
Pin dimensions (thickness x width): 0.3 x 0.8

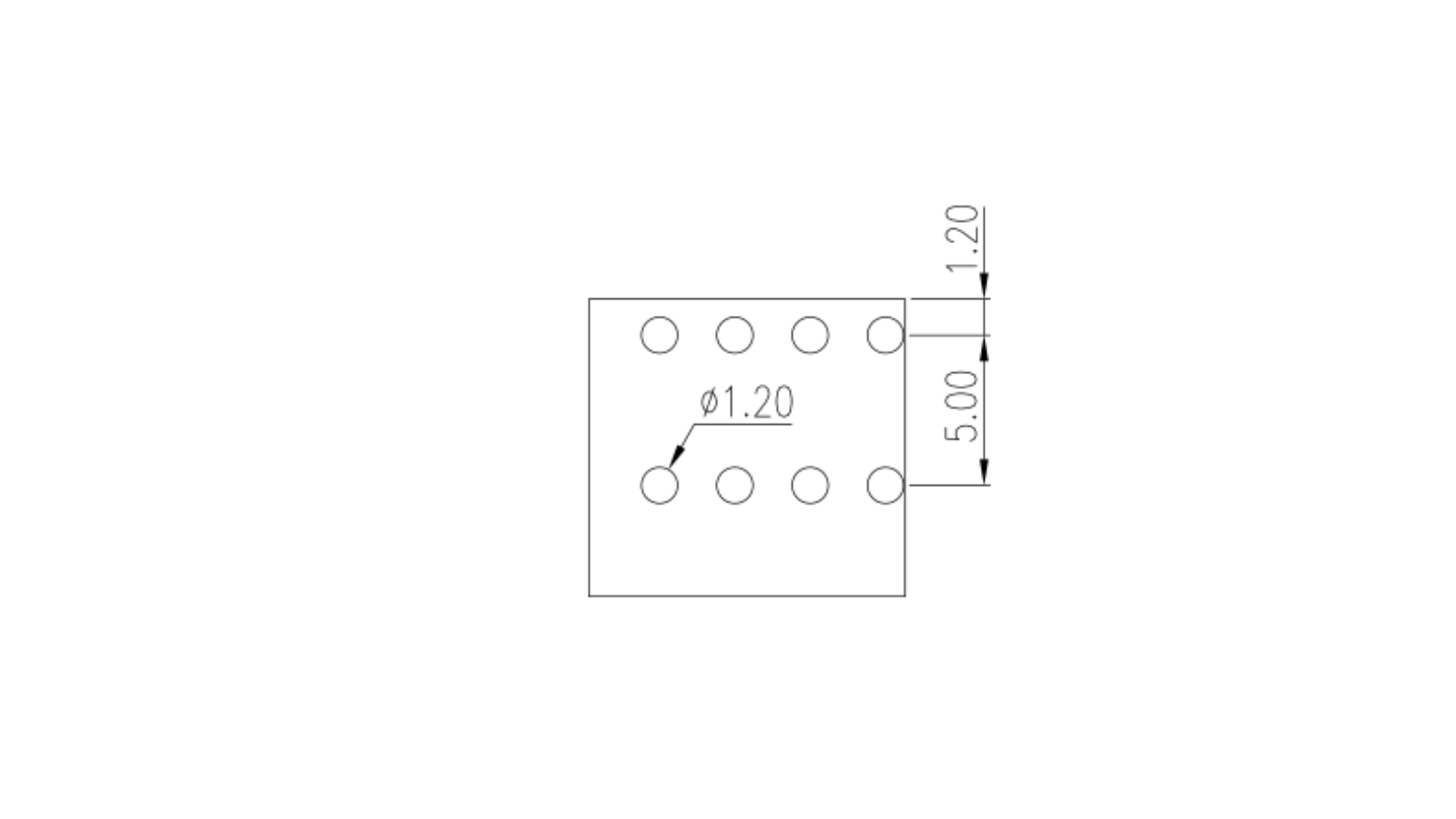

PCB hole diameter (mm): 1.2
Number of poles: 02P~20 P
Level: Single level
Subject to errors and technical changes
Additional information
| Printed circuit board connectors | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| More | ||||||
|
||||||
Data sheets
| 0188-01xxL | PDF(230.73 KB) |
|---|
