Printed circuit board connectors

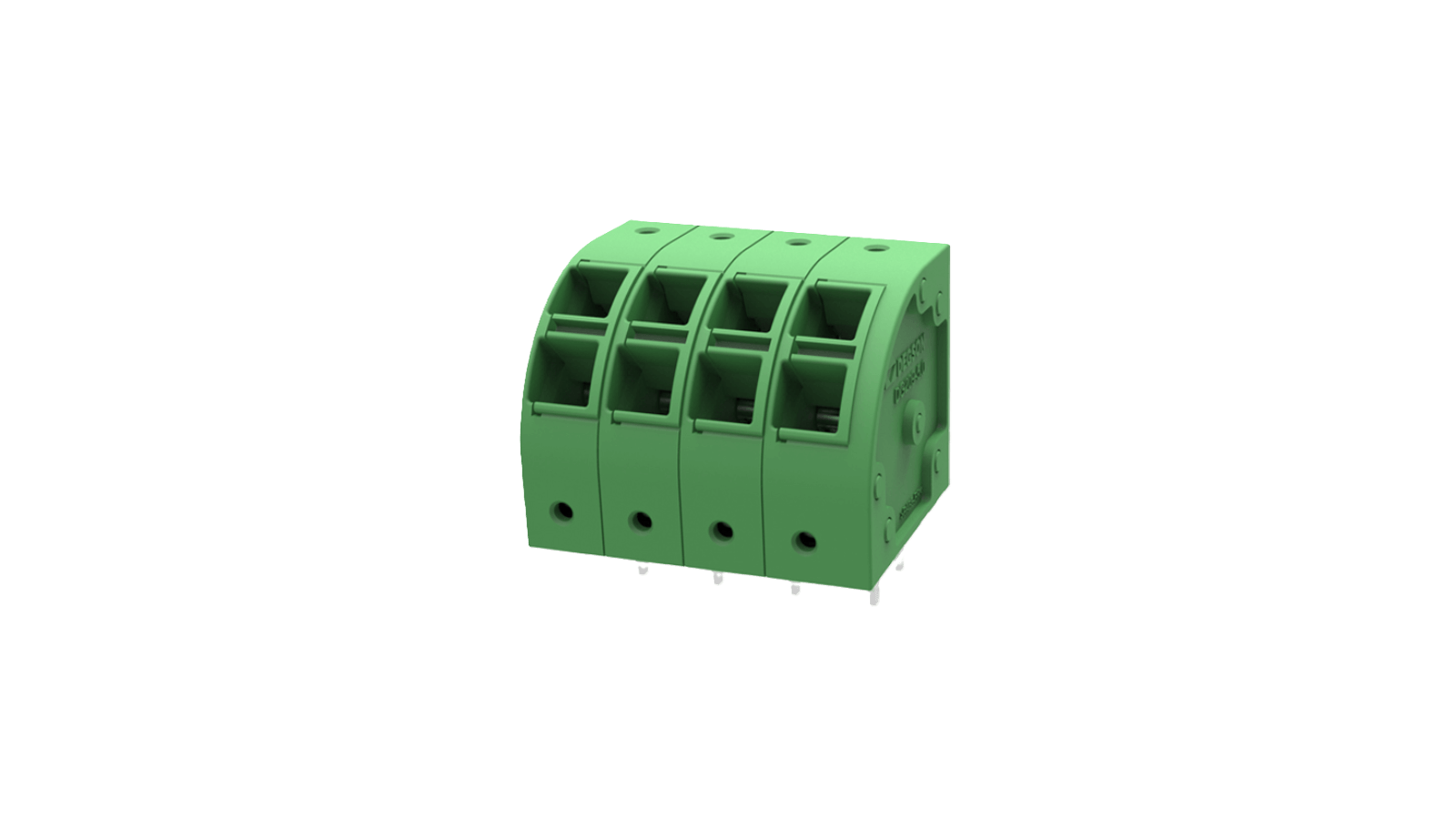

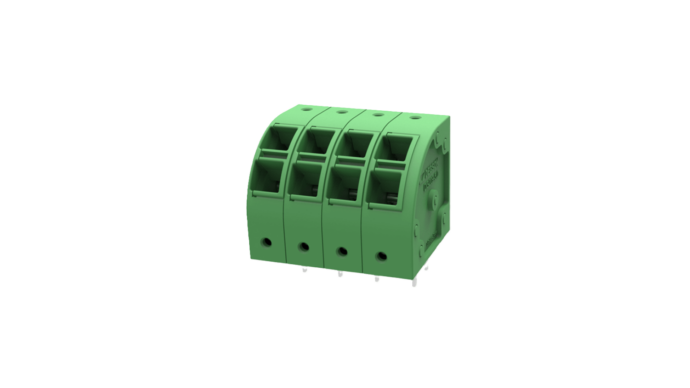

PCB connection terminal DG209-5.0
Selling price (UK) per 1 piece
CHF 10.00 excl. VAT, plus shipping costs
Item no:
n. a.
Stock: n. a.
Packaging ex works:
50
Description
Printed circuit board terminal DG209-5.0 from DEGSON
- PCB connector 2-24 poles
- Grid 5.0 mm
- Color green
Other unpublished standard products and customized versions from DEGSON on request.
Technical data
Designation: PCB connection block
Connection type: Push-in
Grid: 5.0 mm
Color: green
Soldering process: Wave soldering
For cable diameter: 2.5 mm2
Nominal voltage: 400V
Nominal current: 24A
Number of poles: 02P~24 P
Subject to errors and technical changes
