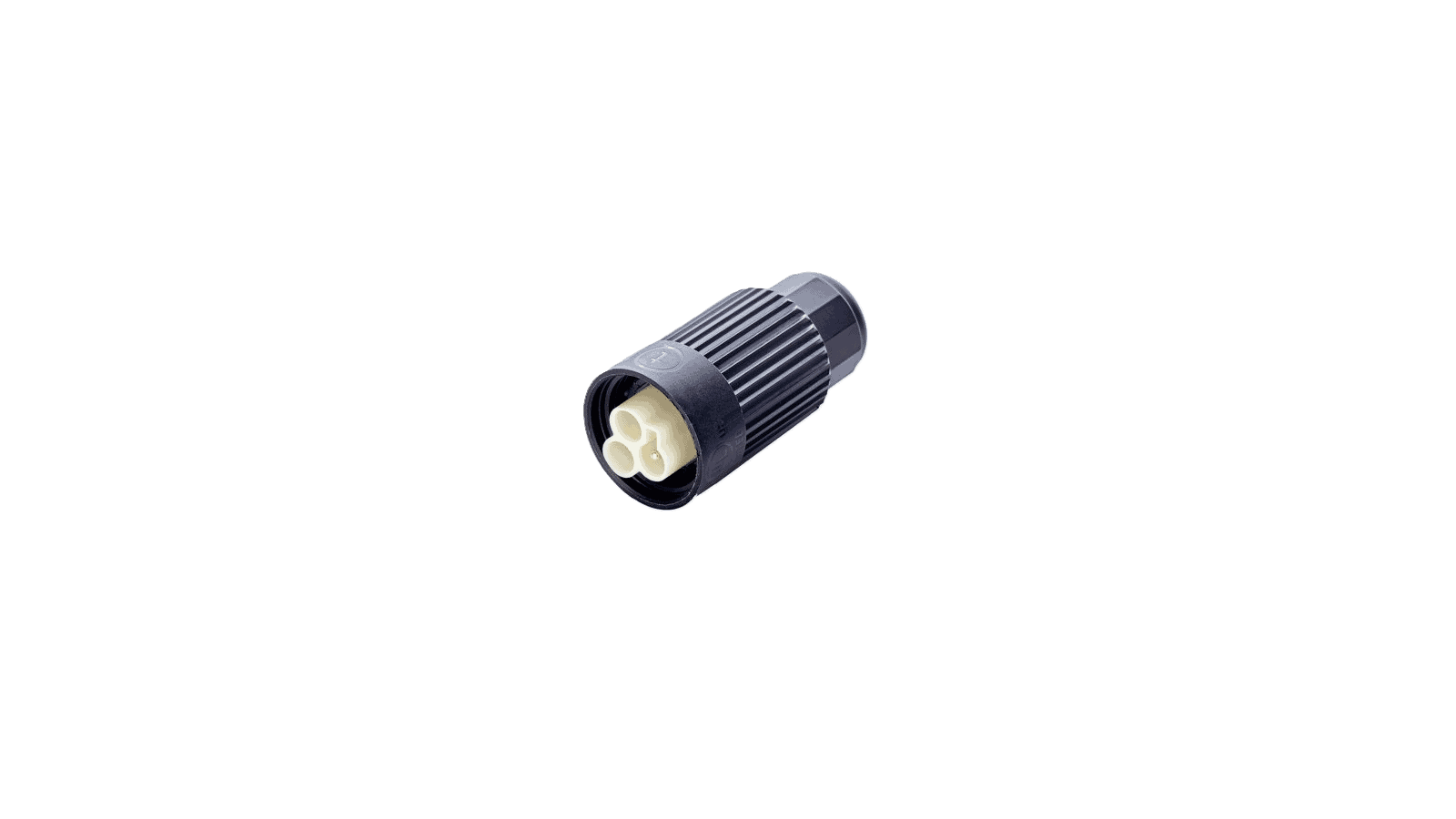

Circular plug connector, 3p, plug, screw connection, 0.5-2.5mm2, D7.0-12.0mm, IP66/IP68
CHF 6.15 excl. VAT, plus shipping costs
Description
3-pin circular connector TH384 with screw lock from Techno
Version: Plug
Connection: Screw
Locking: Screw
Other Techno products and designs on request.
Technical data
Number of poles: 3
Protection class: IP66/IP68
Cable diameter: Ø 7.0 - 12.0 mm
Dimensions:
Plug size: Ø 27.0 x 63.0 mm
with counterpart plugged in: Ø 27.0 x 95.0 mm
Cable cross-section: 0.5 - 2.5 mm2
Rated voltage: 400V AC
Rated current: 16A AC/DC
Temperature range: -40°C...+125°C
Manufacturer: Techno
Subject to technical changes
Additional information
| Circular connector | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| TH384 | PDF(297.33 KB) |
|---|
